Component Access; Remove The Control Panel Assembly; Remove The Control Panel Assembly - Mn Model - Maytag MAT14CS Service Manual
Next generation top load commercial washer coin and non-coin
Hide thumbs
Also See for MAT14CS:
- Installation instructions manual (33 pages) ,
- User instructions (4 pages) ,
- User instructions (4 pages)
Table of Contents
Advertisement

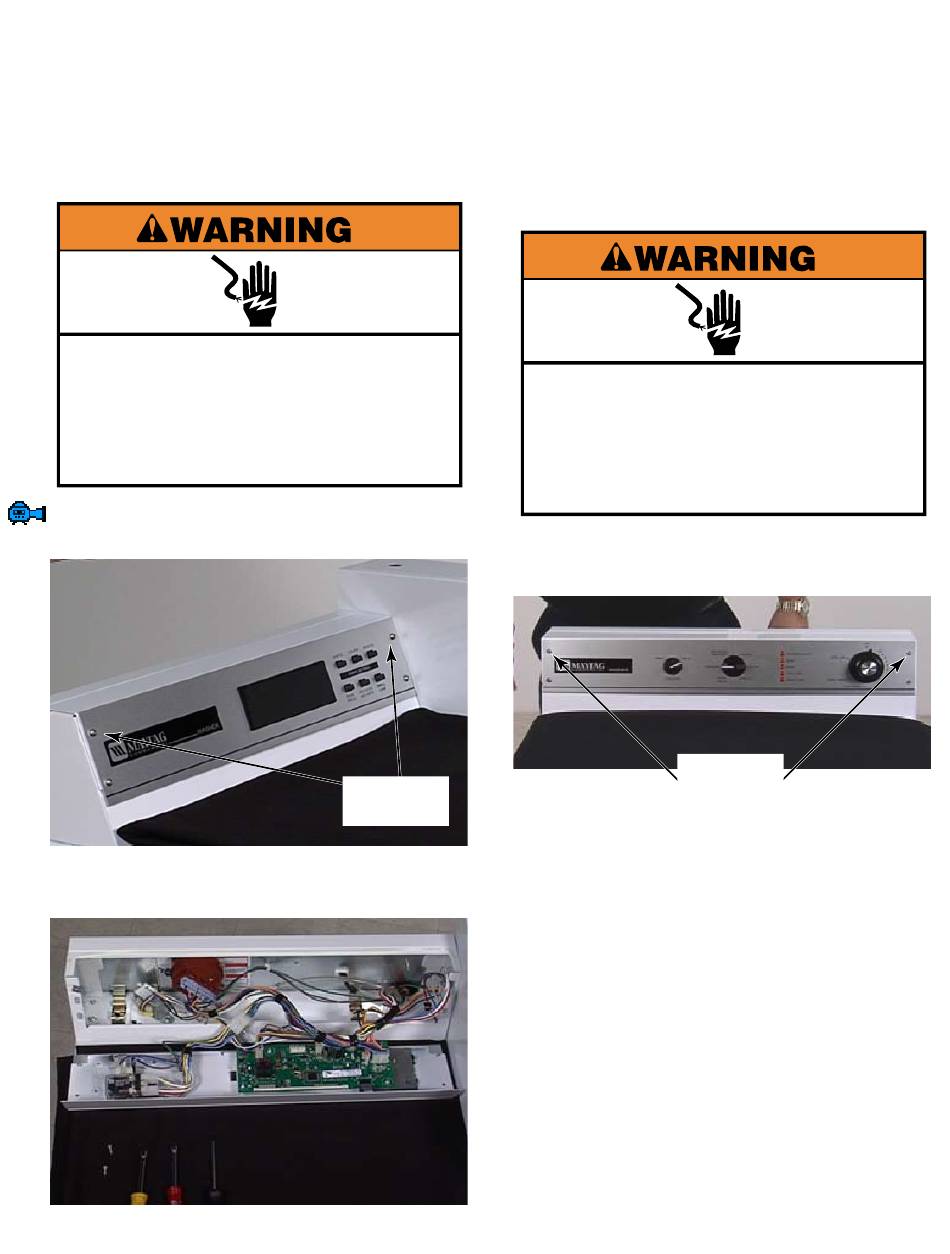

reMOve THe CONTrOL
PaNeL aSSeMBLY
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Remove the two top T-20 security screws
on the control panel.
2.
To avoid damage, lay a towel on the washer
top and place the control panel on the towel.
COMPONeNT aCCeSS
T-20
Screws
4-1
reMOve THe CONTrOL
PaNeL aSSeMBLY
- MN MODeL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Remove the two top T-20 security screws
on the control panel.
2.
To avoid damage, lay a towel on the washer
top and place the control panel on the towel.
T-20
Screws
