4.1.2 REPO Dry Contacts

The REPO dry contacts provide you with quick and convenient interfaces to shut down the
UPS safely when an emergency occurs. Connect the REPO dry contacts to a user-supplied
switch and you can remotely shut down the UPS. The REPO dry contacts provide normally
open (NO) and normally closed (NC) these two options for use.
NOTE:
If you want to enable the normally closed (NC) function, please take out the dry
contact card (see Figure 4-5) and remove its Jump CNR3 (see Figure 4-6) before
you turn on the UPS.
Screw × 2
DISPLAY
EXT. BATT
TEMP.
BT1 BT2
REPO
NC NO
BT3 BT4
Dry Contact Card
Modulon DPH Series

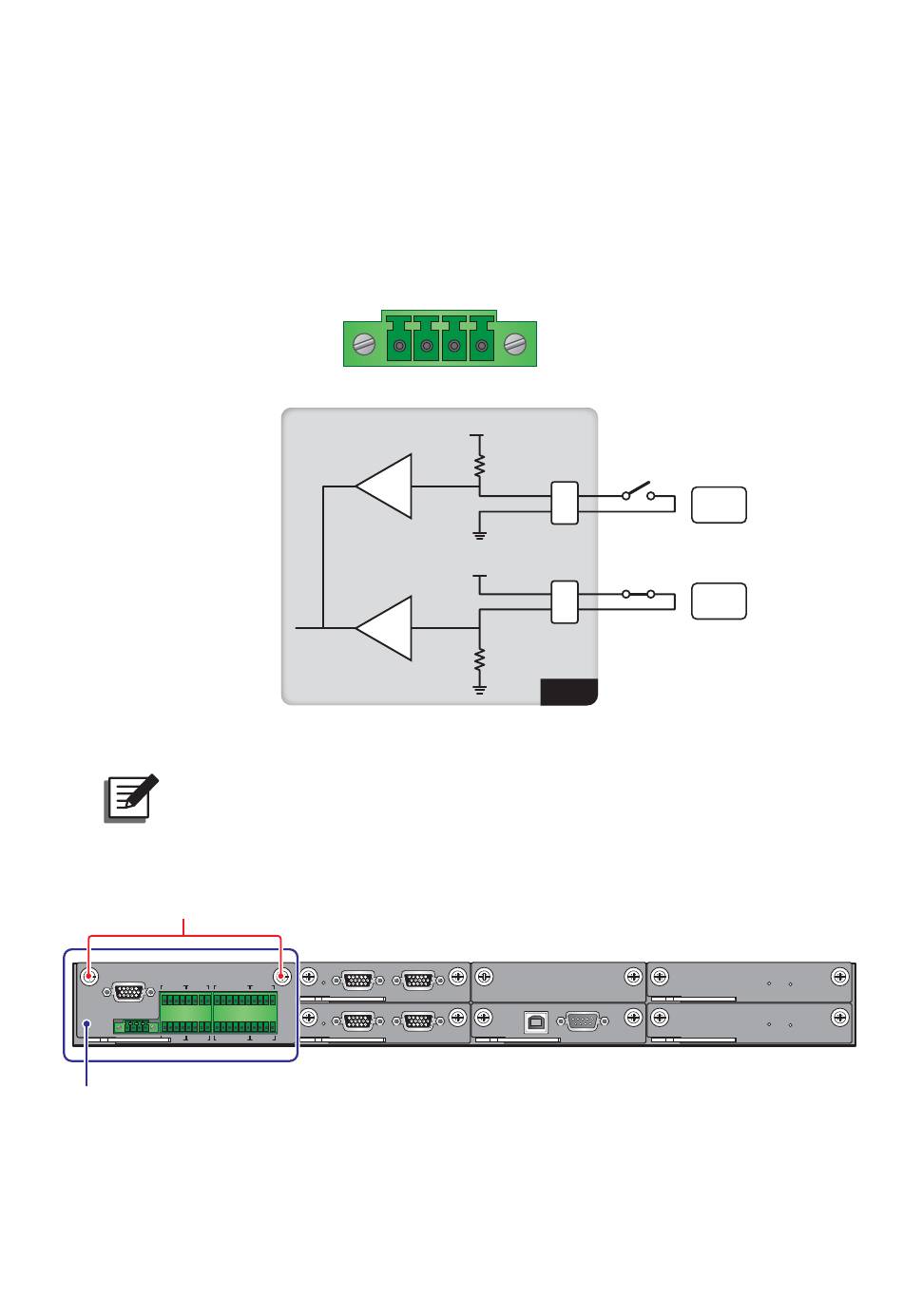

(Figure 4-4: REPO Dry Contacts Design)
O/P DRY I/P DRY
EXT.SWITCH
CONTACT CONTACT
STATUS
S1 S2 P1 P2 P3 P1 P2
S3 S4 P4 P5 P6 P3 P4
(Figure 4-5: Dry Contact Card Location)
REPO
NC NO
5V
Buffer
5V
Buffer
PARALLEL
PARALLEL USB
4-4
3
NO
4
1
NC
2
UPS
RS-232
BATT.
START
BATT.
START
