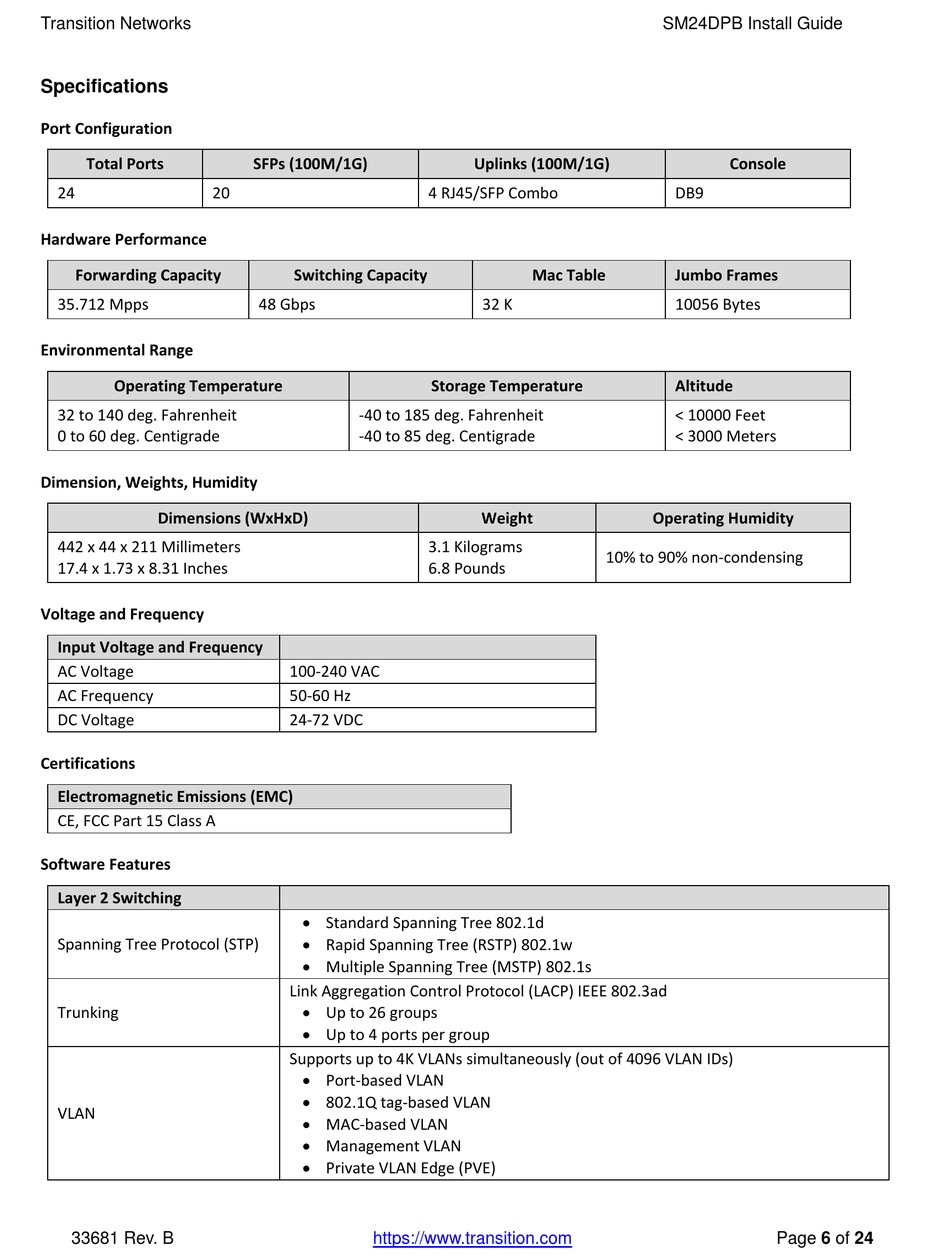

Specifications

Port Configuration
Total Ports
24 20
Hardware Performance
Forwarding Capacity
35.712 Mpps
Environmental Range
Operating Temperature
32 to 140 deg. Fahrenheit
0 to 60 deg. Centigrade
Dimension, Weights, Humidity
Dimensions (WxHxD)
442 x 44 x 211 Millimeters
17.4 x 1.73 x 8.31 Inches
Voltage and Frequency
Input Voltage and Frequency
AC Voltage
AC Frequency
DC Voltage
Certifications
Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A
Software Features
Layer 2 Switching
Spanning Tree Protocol (STP)
Trunking
VLAN
33681 Rev. B
SFPs (100M/1G)
4 RJ45/SFP Combo
Switching Capacity
48 Gbps
Storage Temperature
‐40 to 185 deg. Fahrenheit
‐40 to 85 deg. Centigrade
3.1 Kilograms
6.8 Pounds
100‐240 VAC
50‐60 Hz
24‐72 VDC
 Standard Spanning Tree 802.1d
 Rapid Spanning Tree (RSTP) 802.1w
 Multiple Spanning Tree (MSTP) 802.1s
Link Aggregation Control Protocol (LACP) IEEE 802.3ad
 Up to 26 groups
 Up to 4 ports per group
Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
 Port‐based VLAN
 802.1Q tag‐based VLAN
 MAC‐based VLAN
 Management VLAN
 Private VLAN Edge (PVE)
https://www.transition.com
Uplinks (100M/1G)
Mac Table
32 K
Weight
10% to 90% non‐condensing
SM24DPB Install Guide
Console
DB9
Jumbo Frames
10056 Bytes
Altitude
< 10000 Feet
< 3000 Meters
Operating Humidity
