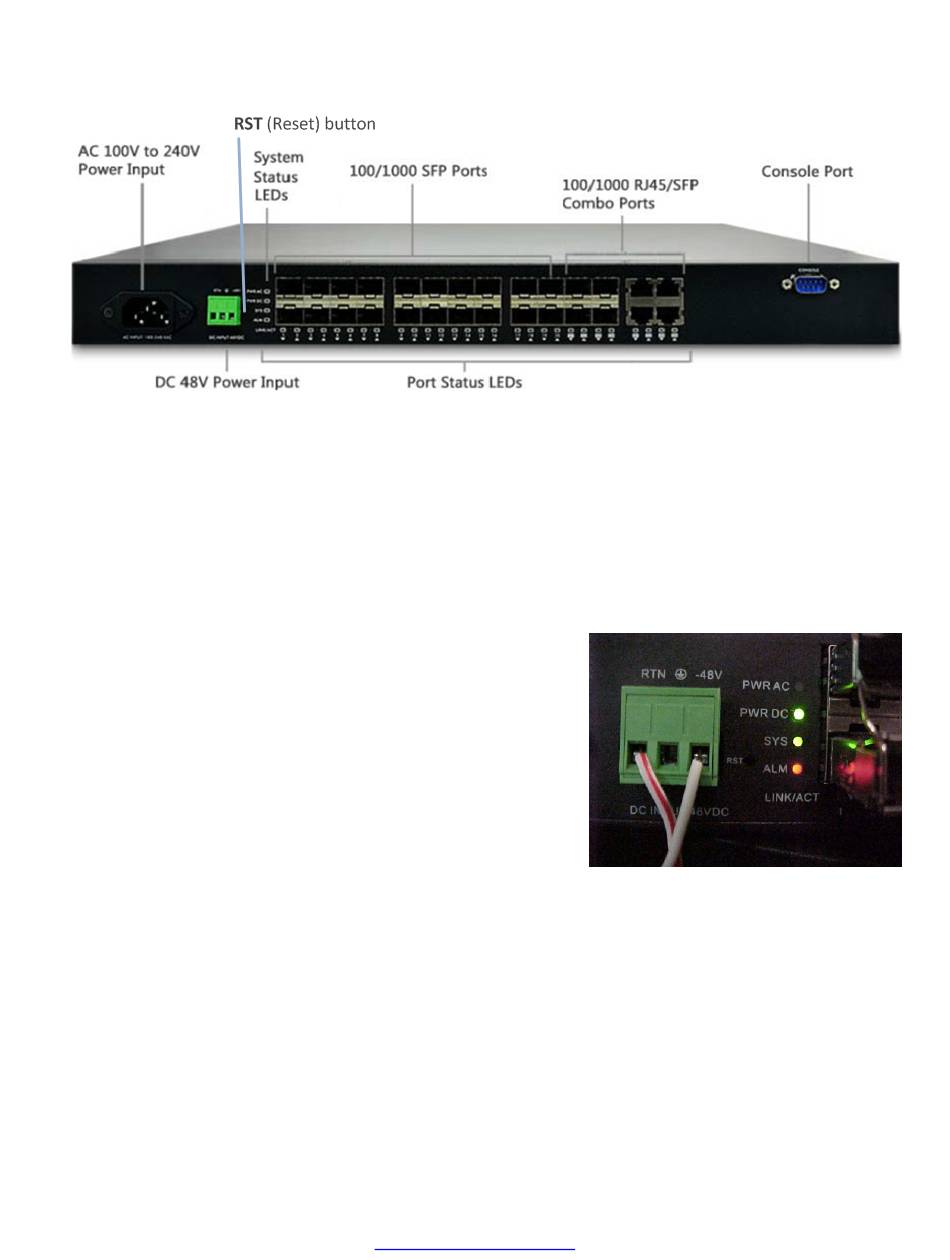

Front Panel

Port and System Status LEDs

LED: P1‐P24 SFP Link/Act/Speed
Condition: Green/ Amber
Status: Lights when Fiber connection with remote device is good. Blinks when any traffic is present. The light is
green when linking up at 1000Mbps.The light is Amber when linking up at 100Mbps.
LED: P21‐P24 TP Link/Act/Speed
Condition: Green/ Amber
Status: Blinks when any traffic is present. The light is green when linking up 10/1000Mbps. The light is Amber
when linking up 100Mbps.
System LED: PWR AC
Condition: Green
Status: Lights when power on from AC source.
System LED: PWR DC
Condition: Green
Status: Lights when power on from DC source.
System LED: SYS
Condition: Green
Status: Blinking when system is booting; lit when system is coming
up.
System LED: ALM (Alarm)
Condition: Red
Status: Always off; until any message about system error lights the ALM LED.
RST (Reset) button: push to reset the SM24DPB; requires a re‐login.
