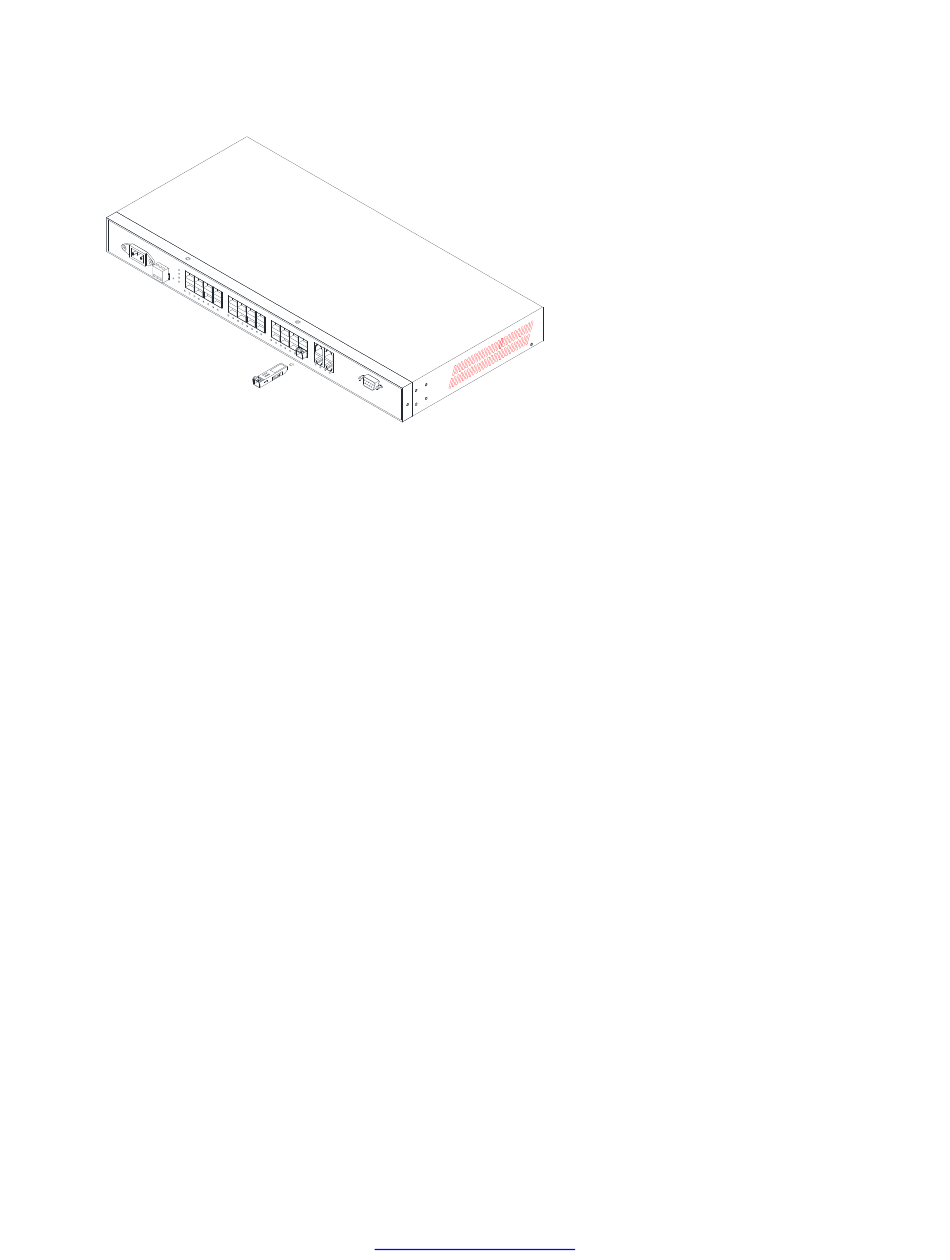

Step 3. Connect one end of the cable to the LC port on the switch and the other end to the LC port on the other
device. Since LC connectors are keyed, the cable can be attached in only one orientation.
Step 4. As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the
connection is valid.
The fiber optic ports operate at 1 Gbps. The maximum length for fiber optic cable operating at Gigabit speed will
depend on the fiber type as listed under "1000 Mbps Gigabit Ethernet Collision Domain".
Connectivity Rules
When adding hubs to your network, please note that because switches break up the path for connected devices
into separate collision domains, you should not include the switch or connected cabling in your calculations for
cascade length involving other devices.
