Transition Networks SM24T6DPA Quick Start Manual

Transition Networks

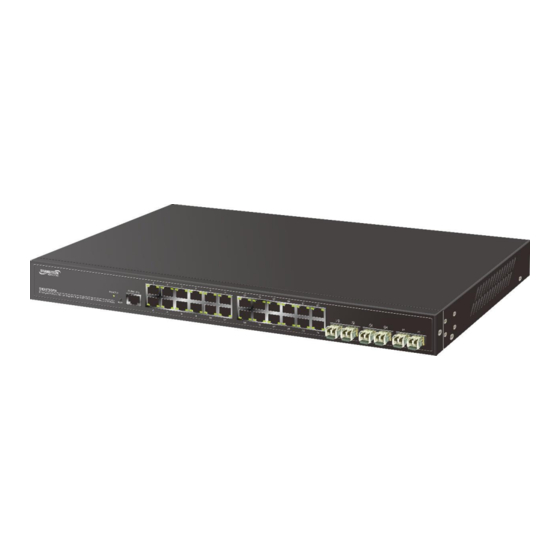

SM24T6DPA
24-Port GbE L2 Managed Switch
Quick Start Guide

Safety Warnings and Cautions

See the Install Guide for important Safety Warnings and Cautions, Compliance, and Safety Statements.

Overview

The SM24T6DPA 24-Port Switch is an affordable managed switch that provides a reliable
infrastructure for your business network. The switch delivers intelligent features to improve the
availability of your critical business applications, protect your sensitive information, and optimize your
network bandwidth to deliver information and applications more effectively. Easy to set up and use, it
provides the ideal combination of affordability and capabilities to your Small Business or enterprise
network application and helps you create a more efficient, better-connected workforce.

Front Panel

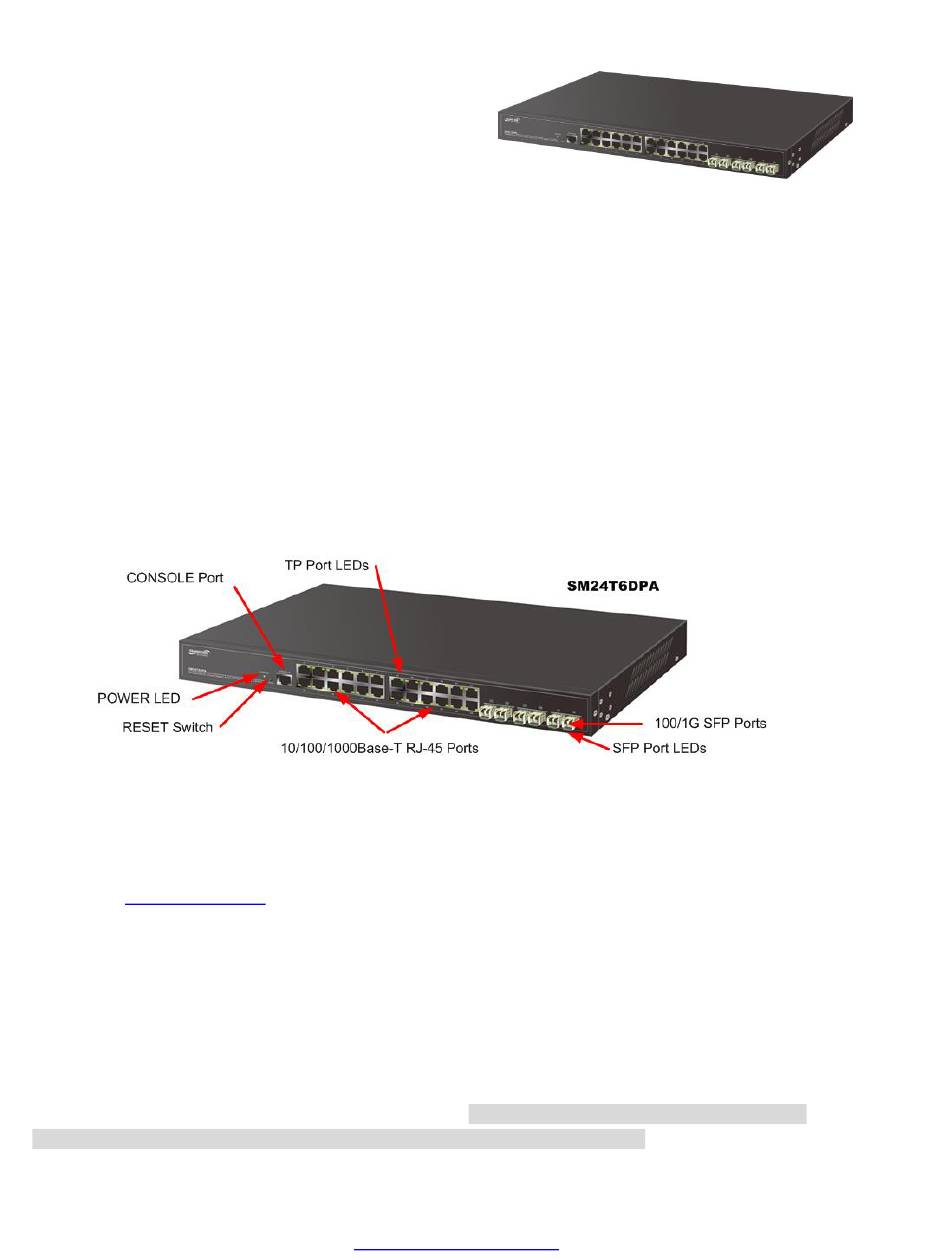

The switch contains 24 10/100/1000BASE-T RJ-45 ports. All RJ-45 ports support automatic MDI/MDI-X
operation, auto-negotiation and IEEE 802.3x auto-negotiation of flow control, so the optimum data rate
and transmission can be selected automatically.

SFP Transceiver Slots

SM24T6DPA Small Form Factor Pluggable (SFP) transceiver slots are shared with RJ-45 ports 21 to
24; SFP ports 25 and 26 are not shared. In the default configuration, if an SFP transceiver (purchased
separately) is installed in a slot and has a valid link on the port, the associated RJ-45 port is disabled.
See the TN SFP product page

Port and System Status LEDS and System Status LED

The SM24T6DPA switch includes a display panel for system and port indications that simplify
installation and network troubleshooting. The LEDs are on the left side of the front panel.

Connecting to the Console Port

The front panel RJ-45 serial port is used to connect to the switch for out-of-band console configuration.
The command-line-driven configuration program can be accessed from a terminal or a PC running a
terminal emulation program. Configure the serial port as Default Baud rate= 115,200 bps, Character
Size=8 Characters, Parity=None, Stop bit=One, Data bits=8, Flow control=none.
