Page 1: Installation And Getting Started Guide

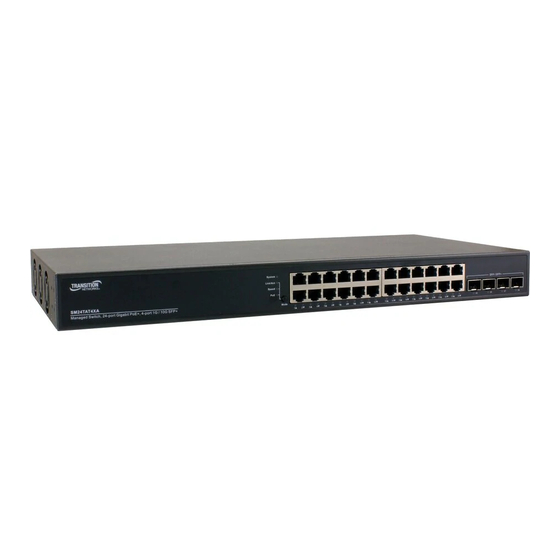

24-Port Gigabit PoE+ Managed Switch SM24TAT4XA Installation and Getting Started Guide Publication date: Nov, 2014 Revision A1.1... -
Page 2: About This Guide
ABOUT THIS GUIDE PURPOSE This guide gives specific information on how to operate and use the management functions of the switch. AUDIENCE The guide is intended for use by network administrators who are responsible for operating and maintaining network equipment; consequently, it assumes a basic working knowledge of general switch functions, the Internet Protocol (IP), and Simple Network Management Protocol (SNMP). -
Page 3: Compliances And Safety Statements
COMPLIANCES AND SAFETY STATEMENTS FCC-CLASS A This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. - Page 4 22:2006+A1:2006 4K V CD, 8KV, AD IEC61000-4-2 (2001) 3V/m IEC61000-4-3( 2002) 1KV – (power line), 0.5KV – (signal line) IEC61000-4-4(2004) Line to Line: 1KV, Line to Earth: 2KV IEC61000-4-5 (2001) 130dBuV(3V) Level 2 IEC61000-4-6 (2003) 1A/m IEC61000-4-8 (2001) Voltage dips: >95%, 0.5period, 30%, 25periods IEC61000-4-11(2001) Voltage interruptions:...
-
Page 5: Table Of Contents
Contents ABOUT THIS GUIDE ......................ii COMPLIANCES AND SAFETY STATEMENTS ............iii INTRODUCTION ........................ 1 OVERVIEW ............................ 1 DESCRIPTION OF HARDWARE ................. 4 NETWORK PLANNING ....................7 INTRODUCTION TO SWITCHING ..................7 APPLICATION EXAMPLES ....................7 INSTALLING THE SWITCH .................. - Page 6 CABLES ..........................29 TWISTED-PAIR CABLE AND PIN ASSIGNMENTS ..........29 STRAIGHT- THROUGH WIRING ..................30 1000BASE-T PIN ASSIGNMENTS ................... 31 CABLE TESTING FOR EXISTING CATEGORY 5 CABLE ........31 FIBER STANDARDS ........................ 32 SPECIFICATIONS ......................33 PHYSICAL CHARACTERISTICS ..................33 SWITCH FEATURES ........................
-
Page 7: Introduction
Small Business or enterprise application and helps you create a more efficient, better-connected workforce. The SM24TAT4XA is able to provide up to 24 ports of Gigabit Ethernet connectivity as well as 4 ports of 10G Ethernet connectivity. It provides ideal flexibility to design suitable network infrastructure for business requirement. -
Page 8: Front Of The Switch
Front of the Switch Back of the Switches Publication date: Nov, 2014 Revision A1.1... - Page 9 SWITCH The switch performs a wire-speed, non-blocking switching fabric. ARCHITECTURE This allows wire-speed transport of multiple packets at low latency on all ports simultaneously. The switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. This switch uses store-and-forward technology to ensure maximum data integrity.
-
Page 10: Description Of Hardware
IEEE 802.3x auto-negotiation of flow control, so the optimum data rate transmission selected automatically. SM24TAT4XA supports 1G/10G dual speed SFP+ slots on port TRANSCEIVER 25 to 28. SLOTS Please visit our web page below for the detail of the available SFP+/SFP modules: http://www.transition.com Publication date: Nov, 2014... - Page 11 PORT AND The SM24TAT4XA Series switch includes a display panel for system and port indications that simplify installation and SYSTEM STATUS network troubleshooting. The LEDs, which are located on left LEDS hand side of the front panel for easy viewing. Details are shown below and described in the following tables.
- Page 12 pressing MODE button. When the switch is on Link/ACT mode, the LED of each port indicates the link or act status. The LED of each port shows the link speed status of the port using different colors when the switch is on SPEED mode. Table 4: Mode Status LED Condition Status...
-
Page 13: Network Planning
NETWORK PLANNING INTRODUCTION A network switch allows simultaneous transmission of multiple TO SWITCHING packets, and it can partition a network more efficiently than bridges or routers. Therefore the switch has been recognized as one of the most important devices for today’s networking technology. - Page 14 Figure 4: Network Connection between Remote Site and Central Site SM10T2DPA SM8T2DPA SM24TAT4XA SM10T2DPA Figure 5: Peer-to-peer Network Connection Publication date: Nov, 2014 Revision A1.1...
- Page 15 Figure 6: Office Network Connection SM24TAT4XA SM10T2DPA SM8T2DPA Publication date: Nov, 2014 Revision A1.1...
-
Page 16: Installing The Switch
Make sure the twisted-pair Ethernet cable is always routed ◆ away from power lines, radios, transmitters or any other electrical interference. Make sure that SM24TAT4XA Switch is connected to a ◆ separate grounded power outlet that provides 100 to 240 VAC, 50 to 60 Hz. -
Page 17: Equipment Checklist
Then, before beginning the installation, be sure you have all other necessary installation equipment. PACKAGE SM24TAT4XA Port GbE Management Switch CONTENTS Four adhesive rubber feet Mounting Accessory (for 19” Rack Shelf, Optional) ... - Page 18 Circuit Overloading: Be sure that the supply circuit to the rack assembly is not overloaded. Grounding: Rack-mounted equipment should be properly grounded. TO Rack-mount Devices: Step1. Attach the brackets to the device using the screws provided in the Mounting Accessory.
-
Page 19: Desktop Or Shelf Mounting
DESKTOP OR SHELF MOUNTING: Step1. Attach the four adhesive rubber feet to the bottom of the first switch. Figure 11: Attaching the Adhesive Rubber Feet Step2. Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow. -
Page 20: Connecting To A Power Source
CONNECTING You can plug or remove power cord from AC power socket, to TO A POWER switch the power on and off. SOURCE Figure 13: Inserting the Power Cord to AC Power Socket Step1. Insert the power cable plug directly into the AC Socket located at the back of the switch. -
Page 21: Wiring Map For Serial Cable
Figure 14: Serial Port (DB-9 DTE) Pin-Out WIRING MAP FOR SERIAL CABLE The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable. Table 4: Serial Cable Wiring Function ... - Page 22 Figure 15: Plug in the Console The Terminal console port default values of the Port SM24TAT4XA are listed as below: The serial port’s configuration requirements are as follows: ◆ Default Baud rate—115,200 bps ◆ Character Size—8 Characters ◆ Parity—None ◆ Stop bit—One ◆ Data bits—8 ◆ Flow control—none ...
-
Page 23: Operation Of Web-Based Management
Enter button. The login process now is completed. SM24TAT4XA web user interface : If you need to configure the function or parameter then you can refer the detail in the User Guide. Or you could access to the Switch and click the "help"... -
Page 24: Making Network Connections
MAKING NETWORK CONNECTIONS The switch is designed to be connected to 10, 100 or CONNECTING 1000Mbps network interface cards in PCs and servers, as NETWORK well as to other switches and hubs. It may also be DEVICES connected to remote devices using optional SFP transceivers. -
Page 25: Network Wiring Connections
Step2. If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. (See the section “Network Wiring Connections.”) Otherwise, attach the other end to an available port on the switch. -
Page 26: Fiber Optic Sfp Devices
FIBER OPTIC An optional Gigabit SFP transceiver can be used for a backbone connection between switches, SFP DEVICES connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends. Each multimode fiber optic port requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an LC connector at both ends. -
Page 27: Connectivity Rules
CONNECTIVITY RULES When adding hubs to your network, please note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices. -
Page 28: Mbps Fast Ethernet Collision Domain
100 MBPS FAST ETHERNET COLLISION DOMAIN Table 9: Maximum Fast Ethernet Cable Lengths Cable Type Maximum Cable Length Connector Category 5, 5e or 6 100-ohm 100.m (328 ft) RJ-45 UTP or STP Publication date: Nov, 2014 Revision A1.1... -
Page 29: Cable Labeling And Connection Records
CABLE LABELING AND CONNECTION RECORDS When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. This will allow user to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption. -
Page 30: Troubleshooting
Make sure all devices connected to the Series SM24TAT4XA Switch devices are configured to auto negotiate, or are configured to connect at half duplex (all hubs are configured this way, for example). Faulty or loose cables. - Page 31 Check the port A port on your Switch may not be operating as you expect configuration. because it has been put into a “blocking” state by Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking). (Note that the normal operation of the Spanning Tree, GVRP, and LACP features may put the port in a blocking state.) Or, the port just may have been configured as disabled through software.
-
Page 32: Power And Cooling Problems
POWER AND COOLING PROBLEMS If the System indicator does not turn on when the power Installation cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet. -
Page 33: Cables
CABLES TWISTED-PAIR For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the CABLE AND PIN twisted-pair cable must have four pairs of wires. Each wire pair is ASSIGNMENTS identified by two different colors. For example, one wire might be green and the other, green with white stripes. -
Page 34: Straight- Through Wiring
The “+” and “-” signs represent the polarity of the wires that make up each wire pair. STRAIGHT- If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires THROUGH must be straight-through. -
Page 35: 1000Base-T Pin Assignments
1000BASE-T PIN All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network ASSIGNMENTS connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BASE-T MDI and MDI-X port pinouts. -
Page 36: Fiber Standards
FIBER The International Telecommunication Union (ITU-T) has standardized various fiber types for data networks. These are STANDARDS summarized in the following table. Table 13: Fiber Standards ITU-T Standard Description Application Multimode Fiber G.651 Short-reach connections in the 1300- nm or 850-nm band 50/125-micron core Non-Dispersion-Shifted Fiber Longer spans and extended reach. -
Page 37: Specifications
SPECIFICATIONS PHYSICAL CHARACTERISTICS PORTS 24 10/100/1000Mbps ports 4 1G/10Gbps SFP+ slots NETWORK Ports 1-24: RJ-45 connector, auto MDI/X INTERFACE 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) 1000BASE-T: RJ-45 (100-ohm, UTP or STP cable; Category 5, 5e or 6) *Maximum Cable Length - 100 m (328 ft) Ports 25-28: 1G/10G SFP ports... -
Page 38: Switch Features
50 Watts maximum 370 Watts PoE Power (without PoE) SWITCH FEATURES FORWARDING Store-and-forward MODE THROUGHPUT 416.668 Mpps FLOW CONTROL Full Duplex: IEEE 802.3x Half Duplex: Back pressure MANAGEMENT FEATURES IN-BAND SSH/SSL, Telnet, SNMP, or HTTP MANAGEMENT OUT-OF-BAND RS-232 (RJ-45) console port MANAGEMENT SOFTWARE HTTP, TFTP in-band, Console out-of-band... - Page 39 COMPLIANCES EMISSIONS EN55022 (CISPR 22) Class A EN 61000-3 FCC Class A CE Mark IMMUNITY EN 61000-4-2/3/4/5/6/8/11 EN 55024 Publication date: Nov, 2014 Revision A1.1...
-
Page 40: Compliances
COMPLIANCES 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable 1000BASE-LH Specification for long-haul Gigabit Ethernet over two strands of 9/125 micron core fiber cable 1000BASE-LX IEEE 802.3z specification for Gigabit Ethernet over two strands... - Page 41 FULL DUPLEX Transmission method that allows two network devices to transmit and receive concurrently, effectively doubling the bandwidth of that link GIGABIT ETHERNET A 1000 Mbps network communication system based on Ethernet and the CSMA/ CD access method. IEEE Institute of Electrical and Electronic Engineers. IEEE 802.3 Define carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications.
- Page 42 SWITCHED PORTS Ports that are on separate collision domains or LAN segments. Telecommunications Industry Association. TRANSMISSION Protocol suite that includes TCP as the primary transport CONTROL protocol, and IP as the network layer protocol. PROTOCOL/INTERNE T PROTOCOL (TCP/IP) USER DATAGRAM UDP provides a datagram mode for the packet-switched PROTOCOL (UDP) communications.
