Reference Manual

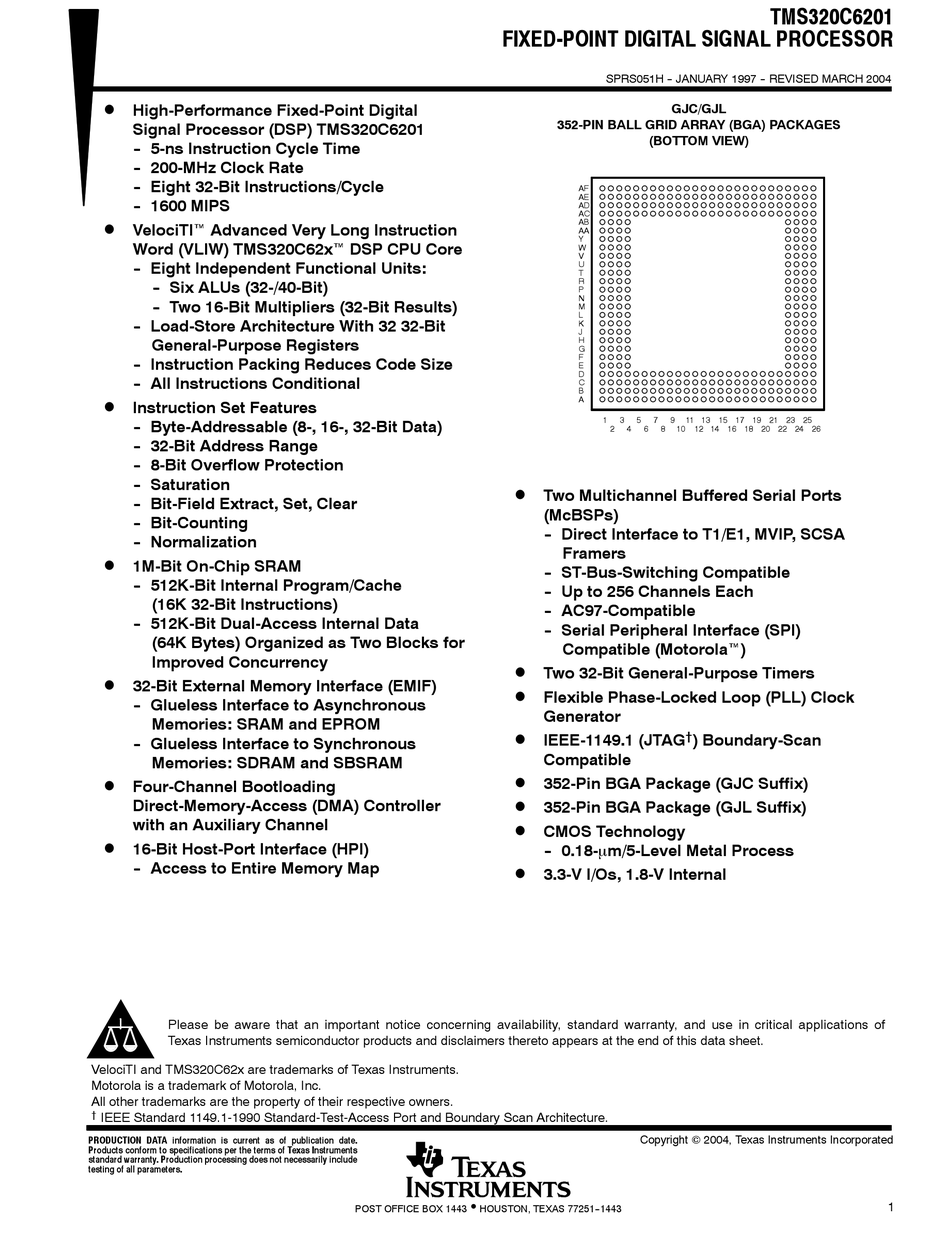

High-Performance Fixed-Point Digital
D
Signal Processor (DSP) TMS320C6201
- - 5-ns Instruction Cycle Time
- - 200-MHz Clock Rate
- - Eight 32-Bit Instructions/Cycle
- - 1600 MIPS
VelociTI™ Advanced Very Long Instruction
D
Word (VLIW) TMS320C62x™ DSP CPU Core
- - Eight Independent Functional Units:
- - Six ALUs (32-/40-Bit)
- - Two 16-Bit Multipliers (32-Bit Results)
- - Load-Store Architecture With 32 32-Bit
General-Purpose Registers
- - Instruction Packing Reduces Code Size
- - All Instructions Conditional
Instruction Set Features
D
- - Byte-Addressable (8-, 16-, 32-Bit Data)
- - 32-Bit Address Range
- - 8-Bit Overflow Protection
- - Saturation
- - Bit-Field Extract, Set, Clear
- - Bit-Counting
- - Normalization
1M-Bit On-Chip SRAM
D
- - 512K-Bit Internal Program/Cache
(16K 32-Bit Instructions)
- - 512K-Bit Dual-Access Internal Data
(64K Bytes) Organized as Two Blocks for
Improved Concurrency
32-Bit External Memory Interface (EMIF)
D
- - Glueless Interface to Asynchronous
Memories: SRAM and EPROM
- - Glueless Interface to Synchronous
Memories: SDRAM and SBSRAM
Four-Channel Bootloading
D
Direct-Memory-Access (DMA) Controller
with an Auxiliary Channel
16-Bit Host-Port Interface (HPI)
D
- - Access to Entire Memory Map
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
VelociTI and TMS320C62x are trademarks of Texas Instruments.
Motorola is a trademark of Motorola, Inc.
All other trademarks are the property of their respective owners.
†
IEEE Standard 1149.1-1990 Standard-Test-Access Port and Boundary Scan Architecture.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
FIXED-POINT DIGITAL SIGNAL PROCESSOR
D
D
D
D
D
D
D
D
•
POST OFFICE BOX 1443
HOUSTON, TEXAS 77251--1443
SPRS051H -- JANUARY 1997 -- REVISED MARCH 2004
GJC/GJL
352-PIN BALL GRID ARRAY (BGA) PACKAGES
(BOTTOM VIEW)
AF
AE
AD
AC
AB
AA
Y
W
V
U
T
R
P
N
M
L
K
J
H
G
F
E
D
C
B
A
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
Two Multichannel Buffered Serial Ports
(McBSPs)
- - Direct Interface to T1/E1, MVIP, SCSA
Framers
- - ST-Bus-Switching Compatible
- - Up to 256 Channels Each
- - AC97-Compatible
- - Serial Peripheral Interface (SPI)
Compatible (Motorola™)
Two 32-Bit General-Purpose Timers
Flexible Phase-Locked Loop (PLL) Clock
Generator
†
IEEE-1149.1 (JTAG
) Boundary-Scan
Compatible
352-Pin BGA Package (GJC Suffix)
352-Pin BGA Package (GJL Suffix)
CMOS Technology
- - 0.18-μm/5-Level Metal Process
3.3-V I/Os, 1.8-V Internal
Copyright © 2004, Texas Instruments Incorporated
TMS320C6201
17
19 21
23
25
16
18
20
22
24
26
1
