Chapter 5: Build Plate Leveling

Every printer will be leveled before shipped out, but we can't ensure that the platform
won't move during delivery, so it will be better to level platform before you begin to
print. We should tighten the three knobs under the build platform, then put one SD
card within the 3D printer，there is a file named
into the slot,choose
press OK button, you will see the content below:
platform and tighten four or five turns. I'm going to move the extruder to
various position for adjustment. In each position, we will need to adjust 2 knobs
at the same time. Nozzles are at the right height when you can just slide a sheet
of paper between the nozzle and the platform. Grab a sheet of paper to assist us.
Please wait. (During the process, what you should do is only select
the screen will go to next

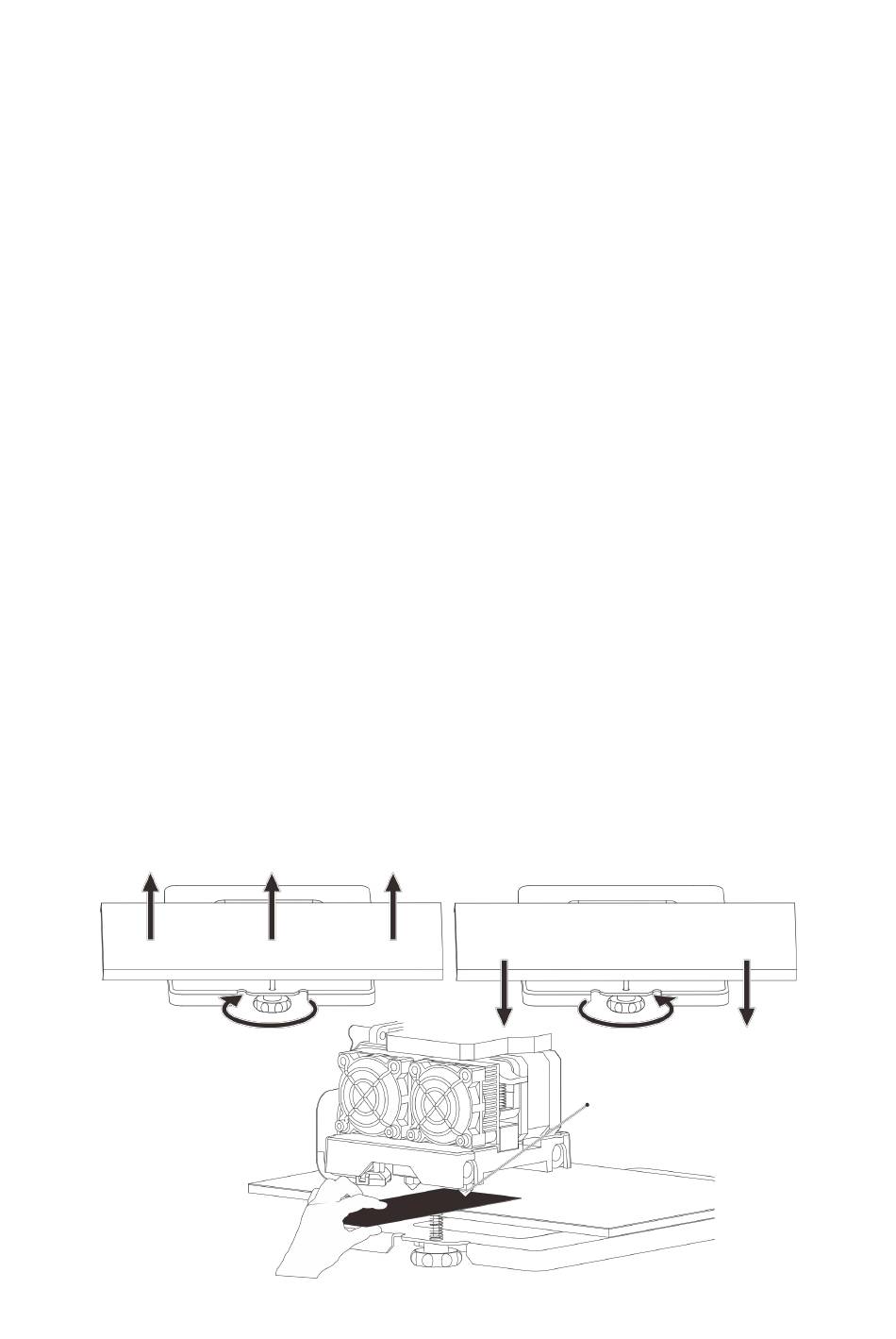

(1) Then the build plate and the nozzle start moving, once they suspend, you need to
adjust the corresponding knob under the build plate individually. Use the leveling card
or a thin piece of paper to check the distance between the build plate and the nozzles.
(2).As you adjust the knob, make sure the leveling card just slides between the nozzle
and build plate. You should feel somewhat friction on the card but still be able to easil
y pass the card between the nozzle and build plate.
When you finish leveling the first point, repeat the steps above to finish leveling the
rest three points.
Creator Pro User Guide | www.FlashForge.com
Print from SD ,select
page.)
PlateLeveling.x3g.
OK,
then choose
Find the 3 knobs under the build
21
Put the SD card
PlateLeveling.x3g
OK
continuously,
400-699-1063
and
