Chapter 4: Hardware Assembly

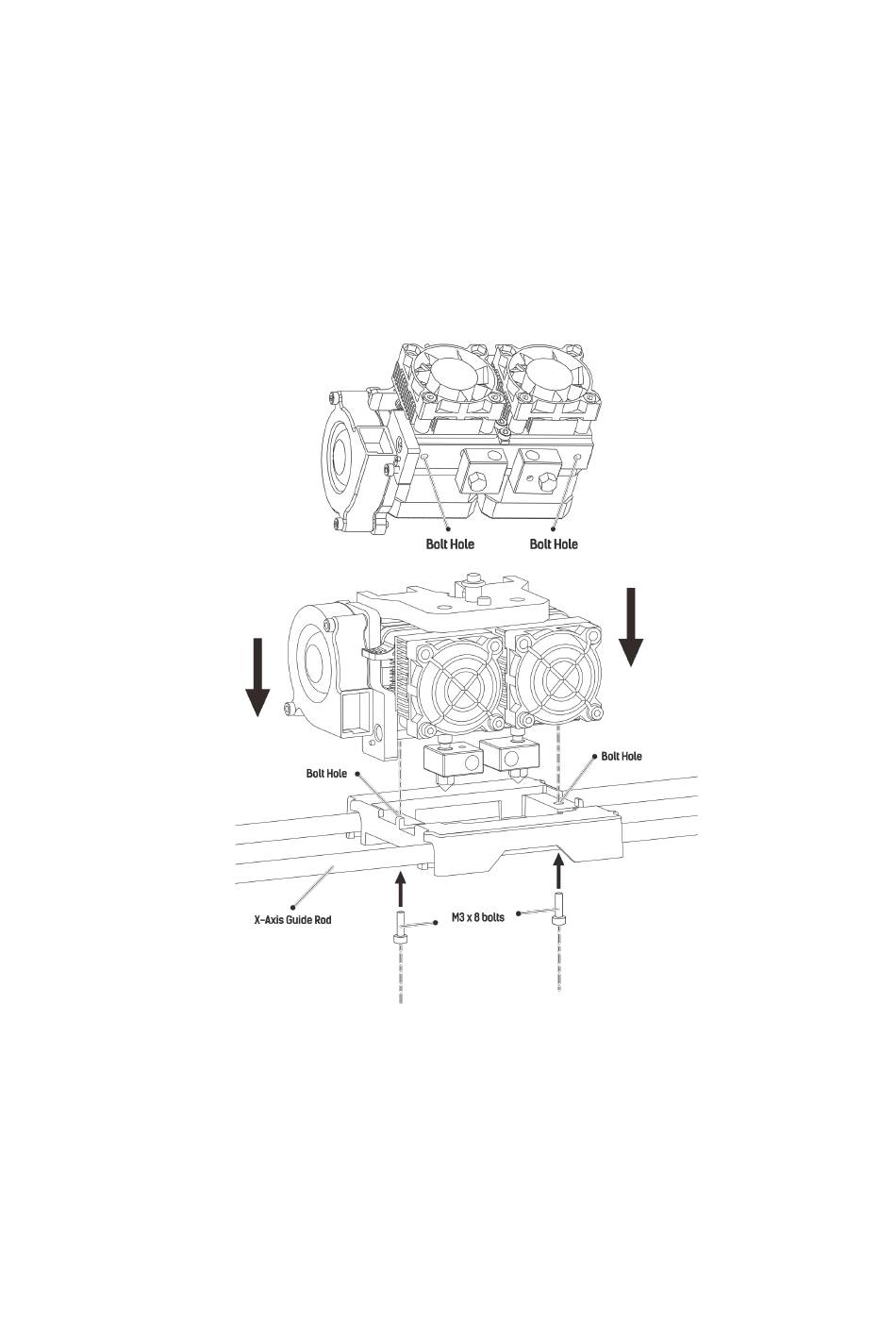

First, you need two M3*8 bolts from the extruder's accessories kit (including bolts
and turbofan baffle), and the 2.5mm Allen Wrench. Lower the build plate as much as
possible, hold the extruder by both sides, take it out of the accessory sleeve and
position it on the extruder support with the fan facing forward. Align the screw holes
and fasten with the two short silver bolts (see 4-1).
4-1
Creator Pro User Guide | www.FlashForge.com
400-699-1063
17
