2. If there is an (H) after the PTZ protocol, it has the high speed Preset function. If there is no (H),
it only has ordinary functions.
3. The PTZ address will be sent as a message option. Take care that some addresses begin at 0.
That is to say, when the address number is 1, the real address is 0. So we must set it according to
their relations.
Motion detection relay & remote client alert
2.4.2
【DO Port】 【DO Description】Select a DO port and set its name to
identify the various DO port. It will be shown as a tip when the mouse moves
closely or above the DO button in DVR Server or NVR Client.
【Select Camera】Selects camera to be set from dropdown list.
【Alarm Send To Network】 Select to send an alarm to network clients
or not.
【Motion Alarm Play Sound 】 Press
sound file for a motion alarm. If there is a motion alarm, the sound file will be
played. Also, you can test it by pressing
【Video Loss Alarm Play Sound 】 Press
sound file for a video loss alarm. If there is a video loss alarm, the sound file
will be played. You can also test it by pressing the
【Camera Alarm DO Output】Selects which DO ports will be triggered
by above camera alarms.

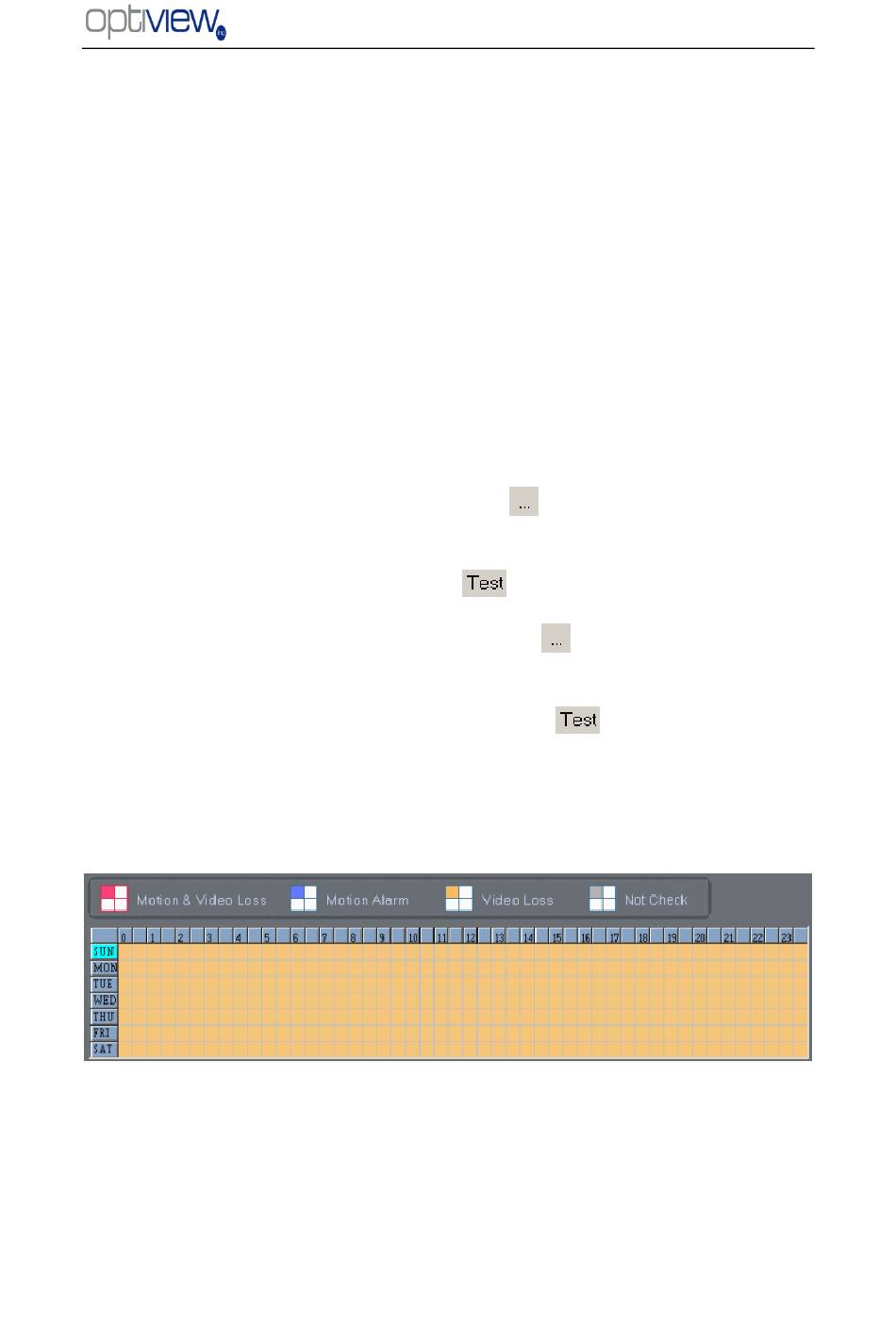

Schedule Setup (setting for cameras of local board cards, IP Cameras are
not included.)
1. Motion & Video Loss (Red): DVR System responds with Motion
Detection and Video Loss alarm in specified time.
2. Motion Alarm (Blue): DVR System only responds with Motion
Detection alarm in specified time.
3. Video Loss (Yellow): DVR System only responds with a Video Loss
alarm in specified time.
DVR Server Manual ver.6.05/rel.120909
button to selects a ―.wav‖
button.
button to select a ―.wav‖
44
