PTZ & Linkage setup
2.4

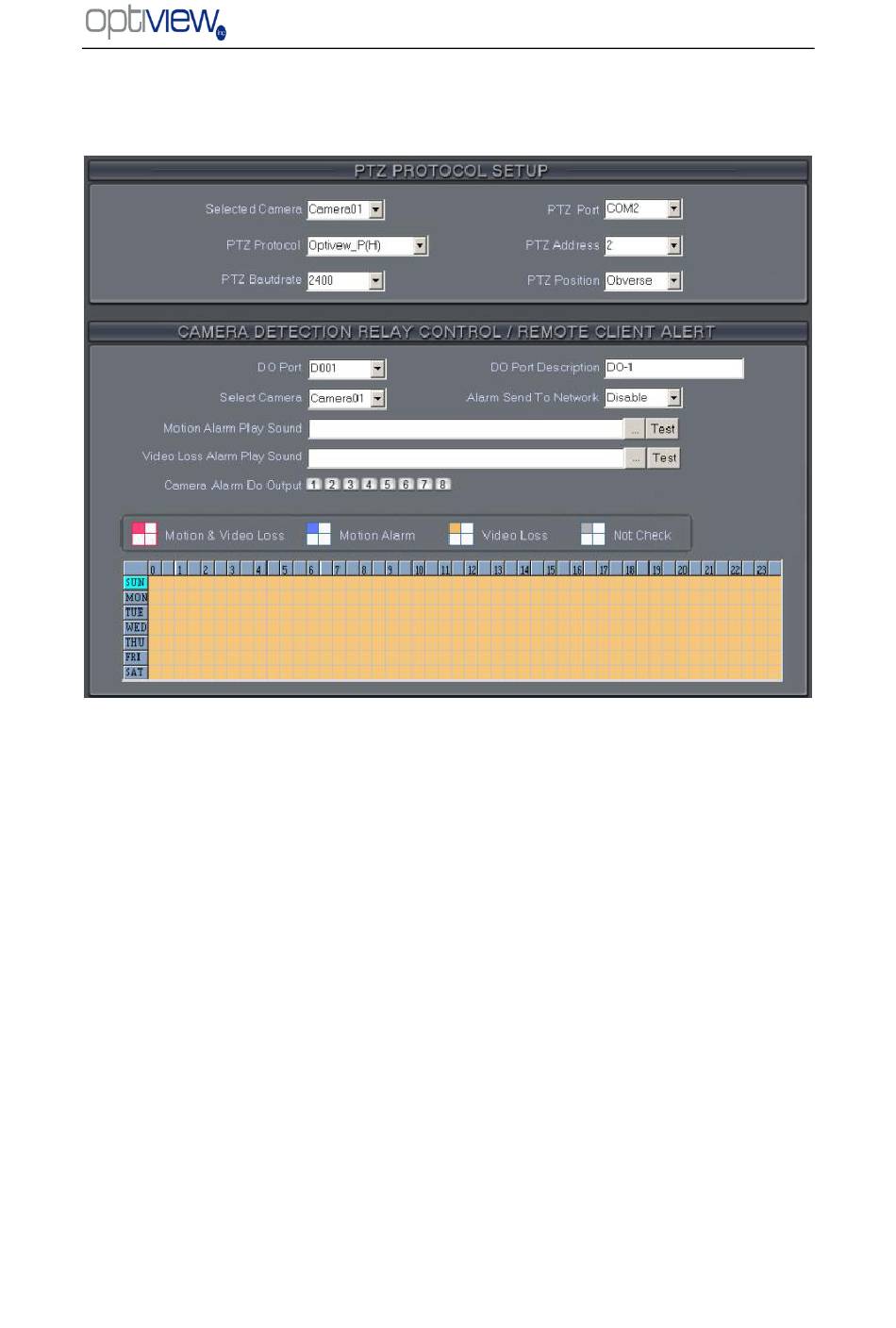

PTZ protocol setup

2.4.1
【Selected Camera】Select the camera from the drop-down list to set
the parameters. These cameras only include the cameras of the local board
card; IP Cameras are not included.
【PTZ Port】Select PTZ connecting port, when you do not use PTZ port,
please choose ―------‖.
【PTZ Protocol】Selects the PTZ protocol for the PTZ camera.
【PTZ Address】Set the camera ID number of the PTZ camera being
controlled.
Note: The PTZ camera has a dipswitch to set the PTZ address. The PTZ camera ID number must
be matched with the number of this dipswitch.
【PTZ Baud rate】Select PTZ Baud rate for the PTZ camera.
【PTZ Position】 Select the installation mode of the PTZ according to its
installation mode.
Notes:
1. PTZ position will influence PTZ control. E.g.: if you set it as obverse and press left, then it
will turn left. If you set it as inverse and press left, then it will turn right.
