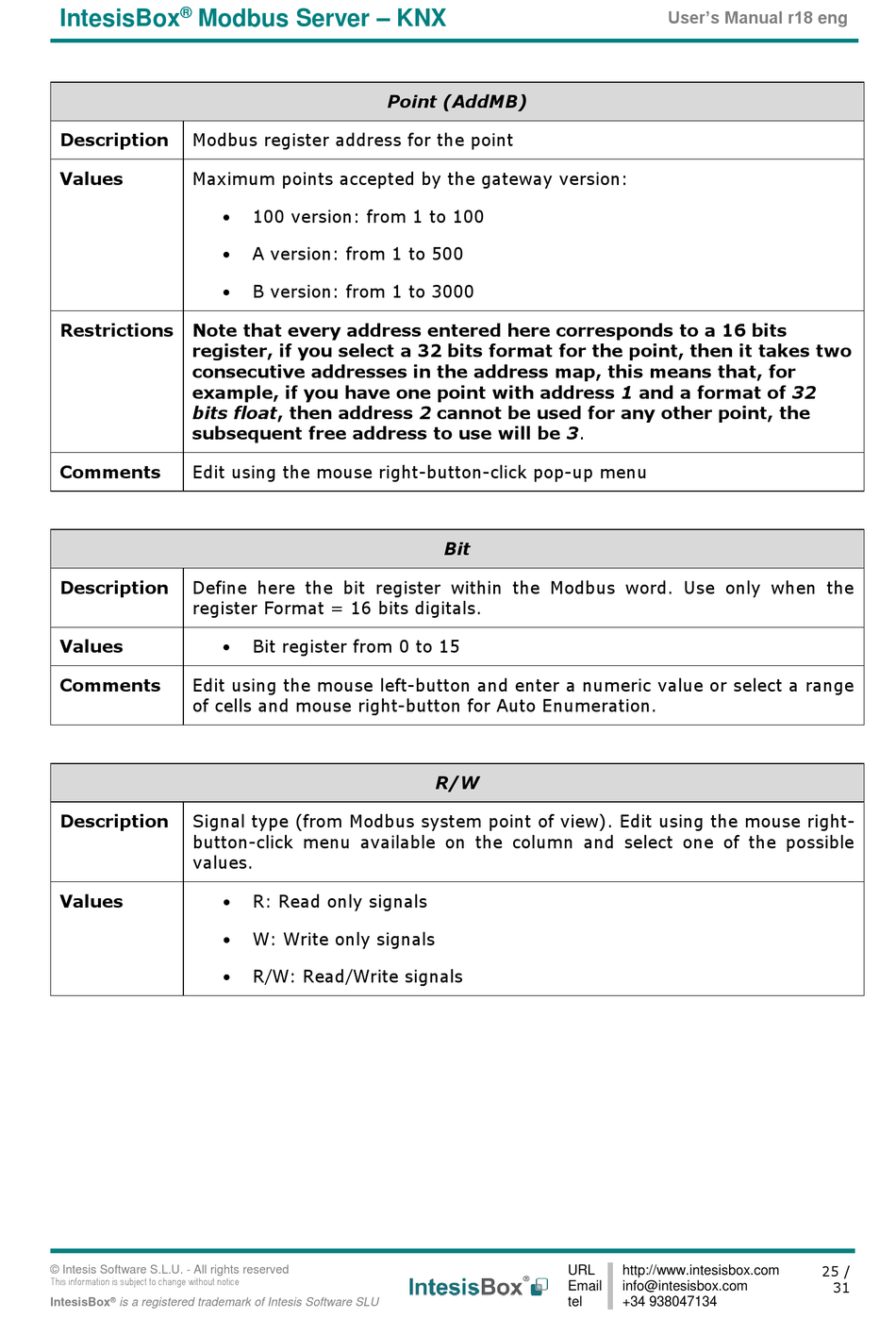

IntesisBox IBOX-MBS-KNX-100 User Manual page 25

Modbus Server – KNX
®
IntesisBox
Description Modbus register address for the point
Values Maximum points accepted by the gateway version:
Restrictions Note that every address entered here corresponds to a 16 bits
register, if you select a 32 bits format for the point, then it takes two
consecutive addresses in the address map, this means that, for
example, if you have one point with address 1 and a format of 32
bits float, then address 2 cannot be used for any other point, the
subsequent free address to use will be 3.
Comments Edit using the mouse right-button-click pop-up menu
Description Define here the bit register within the Modbus word. Use only when the
register Format = 16 bits digitals.
Values
Comments Edit using the mouse left-button and enter a numeric value or select a range
of cells and mouse right-button for Auto Enumeration.
Description Signal type (from Modbus system point of view). Edit using the mouse right-
button-click menu available on the column and select one of the possible
values.
Values
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
Point (AddMB)
 100 version: from 1 to 100
 A version: from 1 to 500
 B version: from 1 to 3000
 Bit register from 0 to 15
 R: Read only signals
 W: Write only signals
 R/W: Read/Write signals
Bit
R/W
