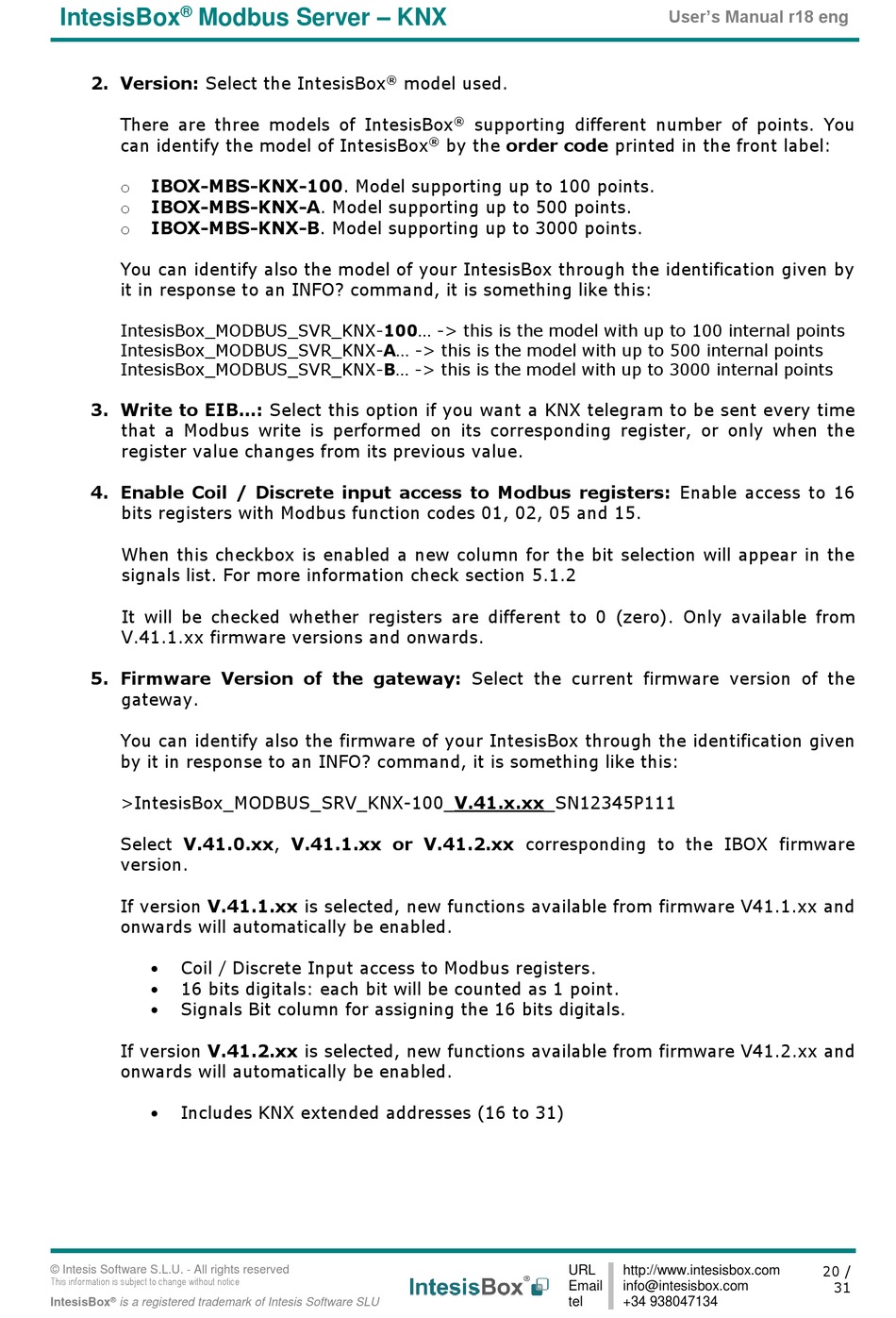

Modbus Server – KNX
®
IntesisBox
2. Version: Select the IntesisBox
There are three models of IntesisBox
can identify the model of IntesisBox
IBOX-MBS-KNX-100. Model supporting up to 100 points.
o
IBOX-MBS-KNX-A. Model supporting up to 500 points.
o
IBOX-MBS-KNX-B. Model supporting up to 3000 points.
o
You can identify also the model of your IntesisBox through the identification given by
it in response to an INFO? command, it is something like this:
IntesisBox_MODBUS_SVR_KNX-100... -> this is the model with up to 100 internal points
IntesisBox_MODBUS_SVR_KNX-A... -> this is the model with up to 500 internal points
IntesisBox_MODBUS_SVR_KNX-B... -> this is the model with up to 3000 internal points
3. Write to EIB...: Select this option if you want a KNX telegram to be sent every time
that a Modbus write is performed on its corresponding register, or only when the
register value changes from its previous value.
4. Enable Coil / Discrete input access to Modbus registers: Enable access to 16
bits registers with Modbus function codes 01, 02, 05 and 15.
When this checkbox is enabled a new column for the bit selection will appear in the
signals list. For more information check section 5.1.2
It will be checked whether registers are different to 0 (zero). Only available from
V.41.1.xx firmware versions and onwards.
5. Firmware Version of the gateway: Select the current firmware version of the
gateway.
You can identify also the firmware of your IntesisBox through the identification given
by it in response to an INFO? command, it is something like this:
>IntesisBox_MODBUS_SRV_KNX-100_V.41.x.xx_SN12345P111
Select V.41.0.xx, V.41.1.xx or V.41.2.xx corresponding to the IBOX firmware
version.
If version V.41.1.xx is selected, new functions available from firmware V41.1.xx and
onwards will automatically be enabled.
 Coil / Discrete Input access to Modbus registers.
 16 bits digitals: each bit will be counted as 1 point.
 Signals Bit column for assigning the 16 bits digitals.
If version V.41.2.xx is selected, new functions available from firmware V41.2.xx and
onwards will automatically be enabled.
 Includes KNX extended addresses (16 to 31)
