KNX interface configuration parameters:
1
2
3
1. Physical Address: Enter the KNX physical address for the gateway.
2. Force update: Check this if you want the gateway to update the signals configured
as "U" or "U2" after a KNX bus reset. Details about configuring signals as "U" and
"U2" in section 4.1.2.
3. Delay: Delay (in seconds), after gateway start-up or bus reset detection, to start the
update process.
Gateway configuration parameters:
1
2
3
4
1. Byte order 32 bits: Select the byte order of 32 bits Modbus registers, it can be one
of these three possibilities:
b3b2b1b0 (H...L).
o
b0b1b2b3 (L...H).
o
b1b0b3b2.
o
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU

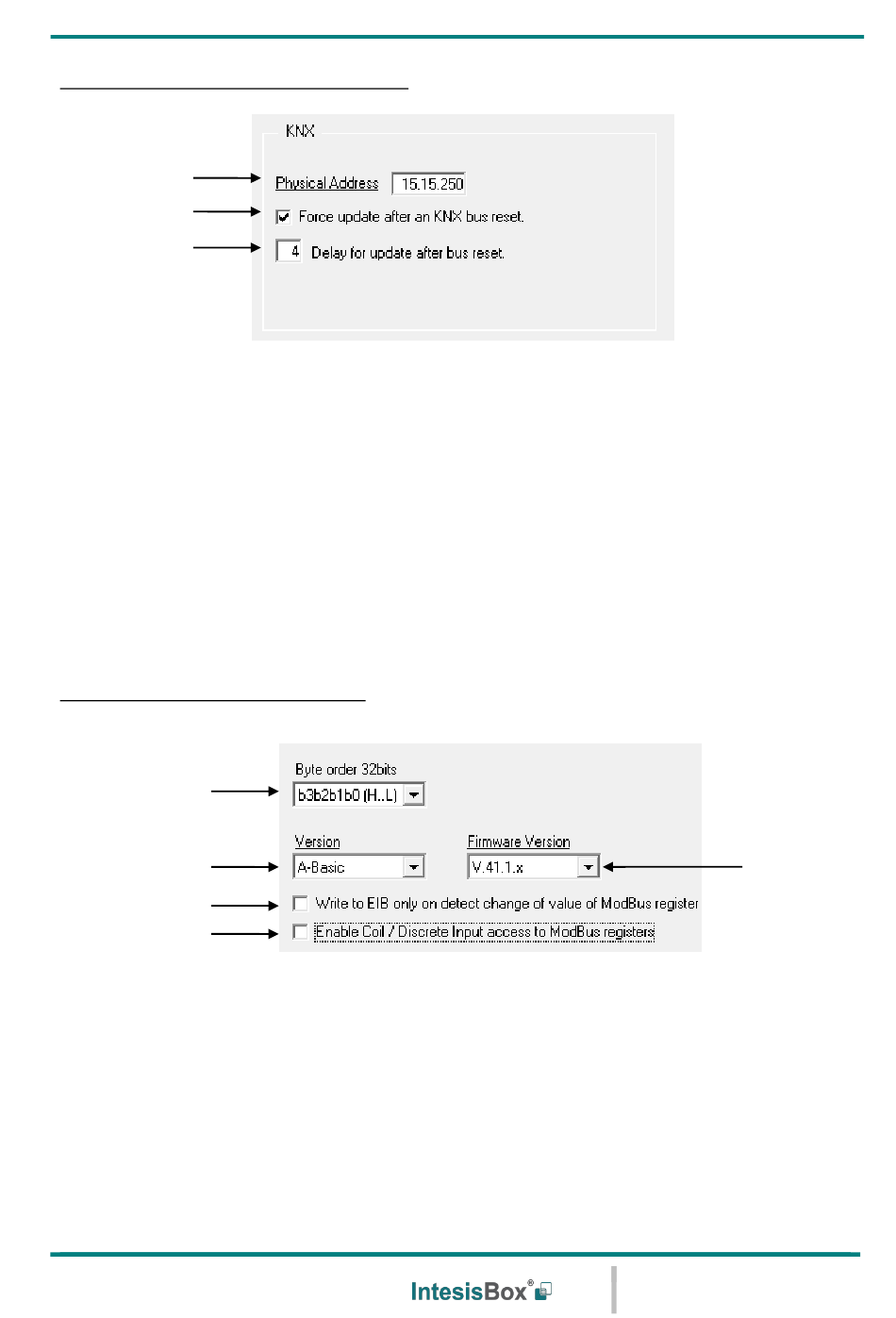

Figure 4.4 KNX interface Configuration
