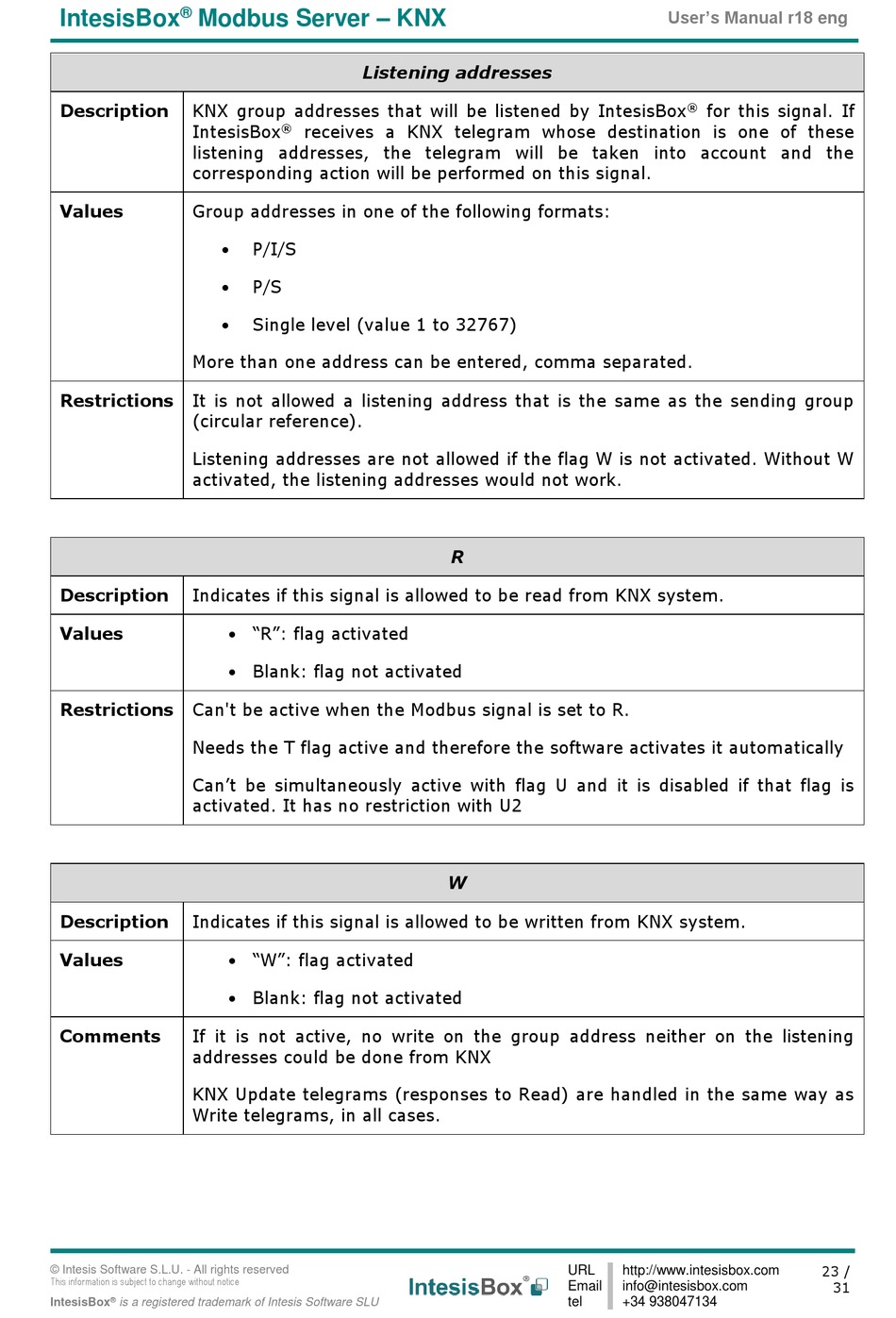

IntesisBox IBOX-MBS-KNX-100 User Manual page 23

Modbus Server – KNX
®
IntesisBox
Description KNX group addresses that will be listened by IntesisBox
IntesisBox
listening addresses, the telegram will be taken into account and the
corresponding action will be performed on this signal.
Values Group addresses in one of the following formats:
More than one address can be entered, comma separated.
Restrictions It is not allowed a listening address that is the same as the sending group
(circular reference).
Listening addresses are not allowed if the flag W is not activated. Without W
activated, the listening addresses would not work.
Description Indicates if this signal is allowed to be read from KNX system.
Values
Restrictions Can't be active when the Modbus signal is set to R.
Needs the T flag active and therefore the software activates it automatically
Can't be simultaneously active with flag U and it is disabled if that flag is
activated. It has no restriction with U2
Description Indicates if this signal is allowed to be written from KNX system.
Values
Comments If it is not active, no write on the group address neither on the listening
addresses could be done from KNX
KNX Update telegrams (responses to Read) are handled in the same way as
Write telegrams, in all cases.
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
Listening addresses
® receives a KNX telegram whose destination is one of these
 P/I/S
 P/S
 Single level (value 1 to 32767)
 "R": flag activated
 Blank: flag not activated
 "W": flag activated
 Blank: flag not activated
R
W
