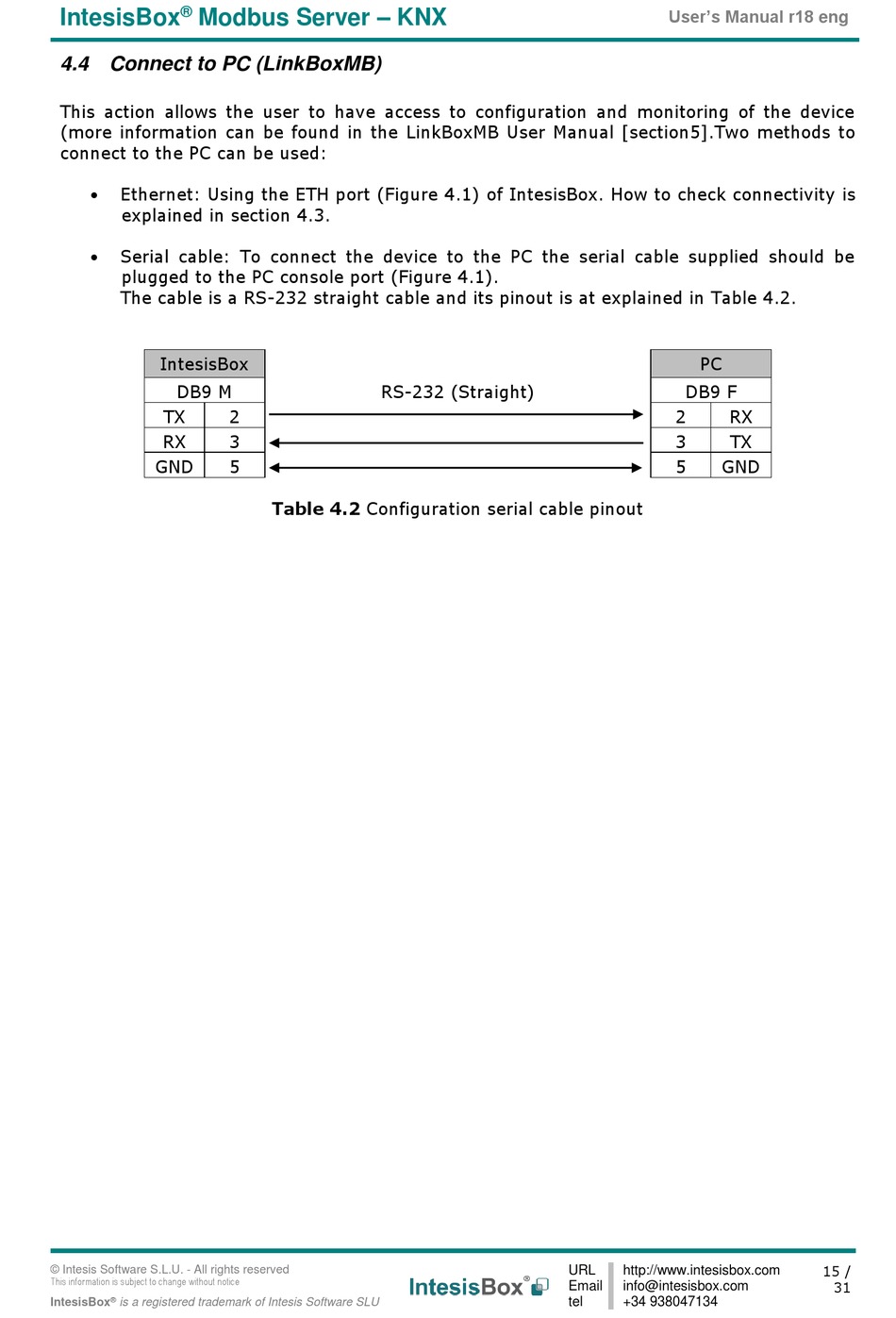

4.4 Connect to PC (LinkBoxMB)

This action allows the user to have access to configuration and monitoring of the device
(more information can be found in the LinkBoxMB User Manual [section5].Two methods to
connect to the PC can be used:
 Ethernet: Using the ETH port (Figure 4.1) of IntesisBox. How to check connectivity is
explained in section 4.3.
 Serial cable: To connect the device to the PC the serial cable supplied should be
plugged to the PC console port (Figure 4.1).
The cable is a RS-232 straight cable and its pinout is at explained in Table 4.2.
IntesisBox
DB9 M
TX
RX
GND
