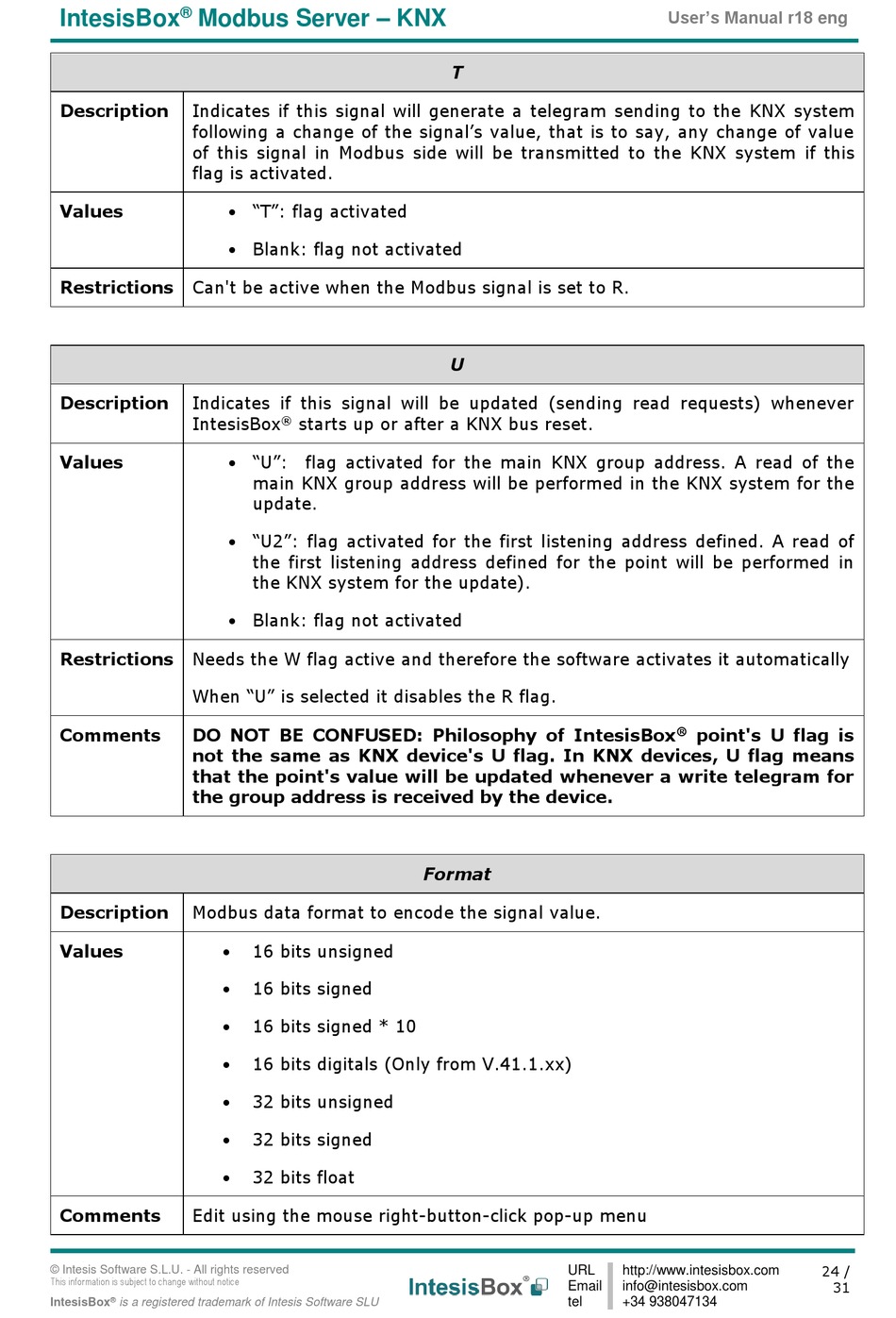

IntesisBox IBOX-MBS-KNX-100 User Manual page 24

Modbus Server – KNX
®
IntesisBox
Description Indicates if this signal will generate a telegram sending to the KNX system
following a change of the signal's value, that is to say, any change of value
of this signal in Modbus side will be transmitted to the KNX system if this
flag is activated.
Values
Restrictions Can't be active when the Modbus signal is set to R.
Description Indicates if this signal will be updated (sending read requests) whenever
IntesisBox
Values
Restrictions Needs the W flag active and therefore the software activates it automatically
When "U" is selected it disables the R flag.
Comments DO NOT BE CONFUSED: Philosophy of IntesisBox
not the same as KNX device's U flag. In KNX devices, U flag means
that the point's value will be updated whenever a write telegram for
the group address is received by the device.
Description Modbus data format to encode the signal value.
Values
Comments Edit using the mouse right-button-click pop-up menu
