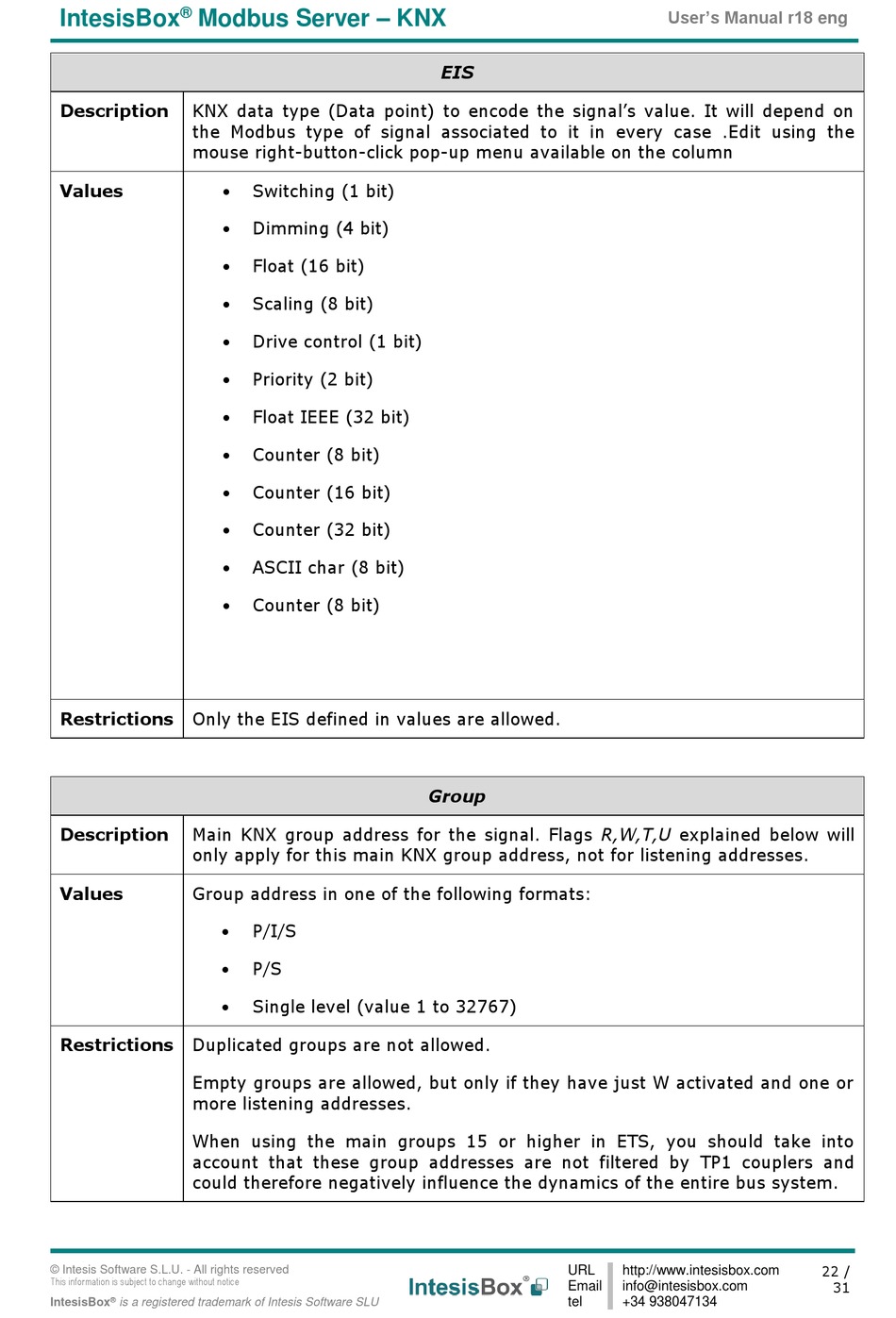

Description KNX data type (Data point) to encode the signal's value. It will depend on
the Modbus type of signal associated to it in every case .Edit using the
mouse right-button-click pop-up menu available on the column
Values
Restrictions Only the EIS defined in values are allowed.
Description Main KNX group address for the signal. Flags R,W,T,U explained below will
only apply for this main KNX group address, not for listening addresses.
Values Group address in one of the following formats:
Restrictions Duplicated groups are not allowed.
Empty groups are allowed, but only if they have just W activated and one or
more listening addresses.
When using the main groups 15 or higher in ETS, you should take into
account that these group addresses are not filtered by TP1 couplers and
could therefore negatively influence the dynamics of the entire bus system.
