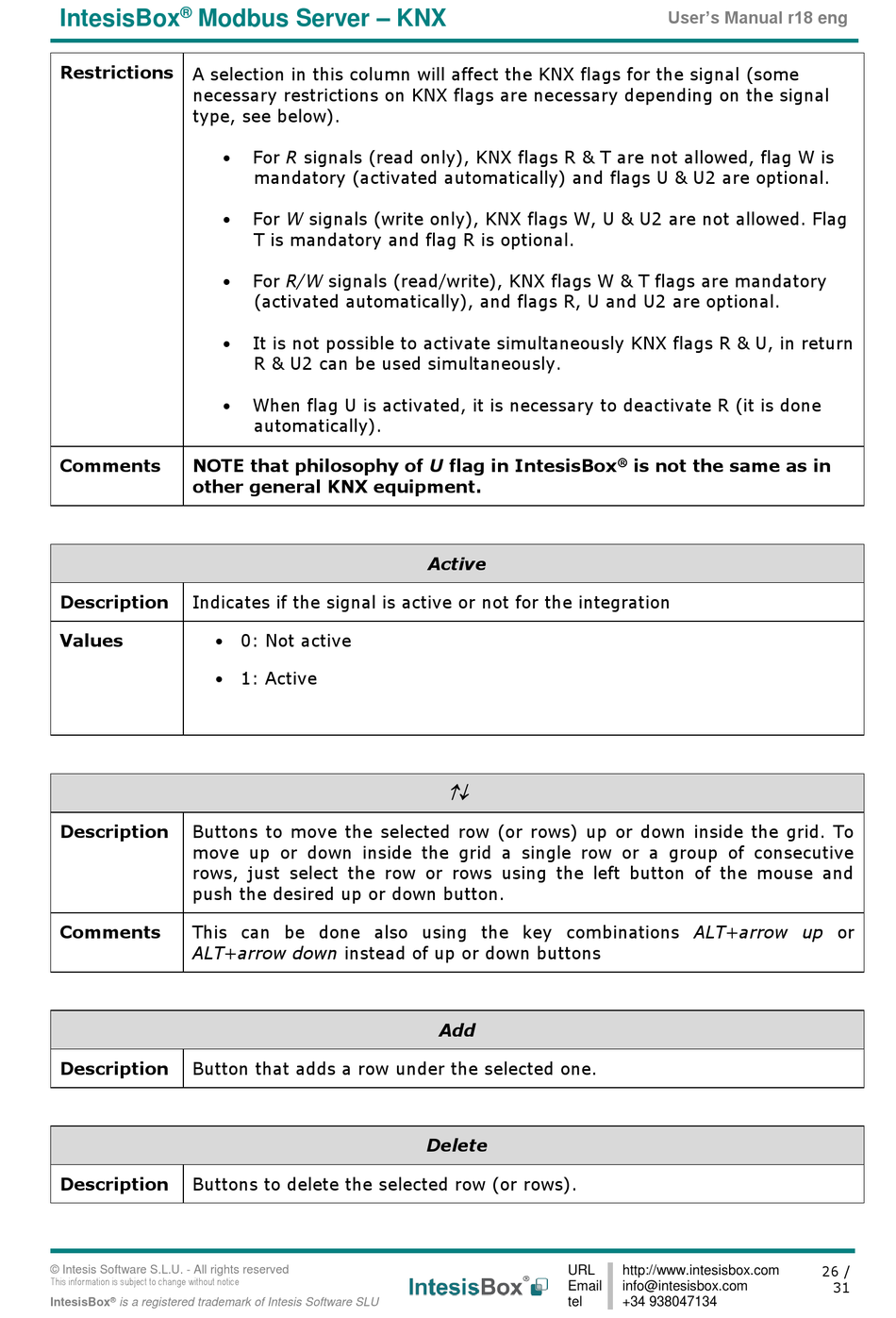

IntesisBox IBOX-MBS-KNX-100 User Manual page 26

Modbus Server – KNX
®
IntesisBox
Restrictions
A selection in this column will affect the KNX flags for the signal (some
necessary restrictions on KNX flags are necessary depending on the signal
type, see below).
Comments NOTE that philosophy of U flag in IntesisBox
other general KNX equipment.
Description Indicates if the signal is active or not for the integration
Values  0: Not active
 1: Active
Description Buttons to move the selected row (or rows) up or down inside the grid. To
move up or down inside the grid a single row or a group of consecutive
rows, just select the row or rows using the left button of the mouse and
push the desired up or down button.
Comments This can be done also using the key combinations ALT+arrow up or
ALT+arrow down instead of up or down buttons
Description Button that adds a row under the selected one.
Description Buttons to delete the selected row (or rows).
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
 For R signals (read only), KNX flags R & T are not allowed, flag W is
mandatory (activated automatically) and flags U & U2 are optional.
 For W signals (write only), KNX flags W, U & U2 are not allowed. Flag
T is mandatory and flag R is optional.
 For R/W signals (read/write), KNX flags W & T flags are mandatory
(activated automatically), and flags R, U and U2 are optional.
 It is not possible to activate simultaneously KNX flags R & U, in return
R & U2 can be used simultaneously.
 When flag U is activated, it is necessary to deactivate R (it is done
automatically).
Active

Add
Delete
URL
Email
tel
User's Manual r18 eng
® is not the same as in
