Enable BBMD: Activating this option, besides its normal operation, the IntesisBox
will also behave as a BBMD.
Take into account that when BBMD functionality is enabled, the Gateway address in
Connection tab is supposed to be configured so the IntesisBox can forward BACnet
telegrams to external networks.
When this option is disabled, the rest of elements in the tab will not be visible as
they will have no effect on the IntesisBox.
Remember to press the Save button and send new configuration file to the
IntesisBox in order to apply the changes.
•
BDT: The Broadcast Distribution Table can be defined either through LinkBoxBacnet
or using the BVLL Write-Broadcast-Distribution-Table BACnet message. Last BDT
written to the IntesisBox will be saved and used from that moment, no matter the
way it is been written.
Maximum number of BDT entries is 8, entries can be activated or deactivated by
clicking its related check box. Select a BDT entry in order to change its parameters.
If IntesisBox's own BDT entry is not configured, the whole BDT will be considered
incorrect and will not be accepted.
•
Name: Identifying name of the related BBMD. This name is optional and it will only
be used in LinkBoxBacnet's BDT.
•
IP: IP address of the related BBMD. Default value is no IP address (empty), but if
the BDT entry is activated an IP address must be defined, otherwise the BDT will be
considered invalid.
•
Port UDP: Port UPD of the related BBMD. Default value is "47808".
•
Mask to apply: Broadcast distribution mask of the related BBMD. Default value is
"255.255.255.255".
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

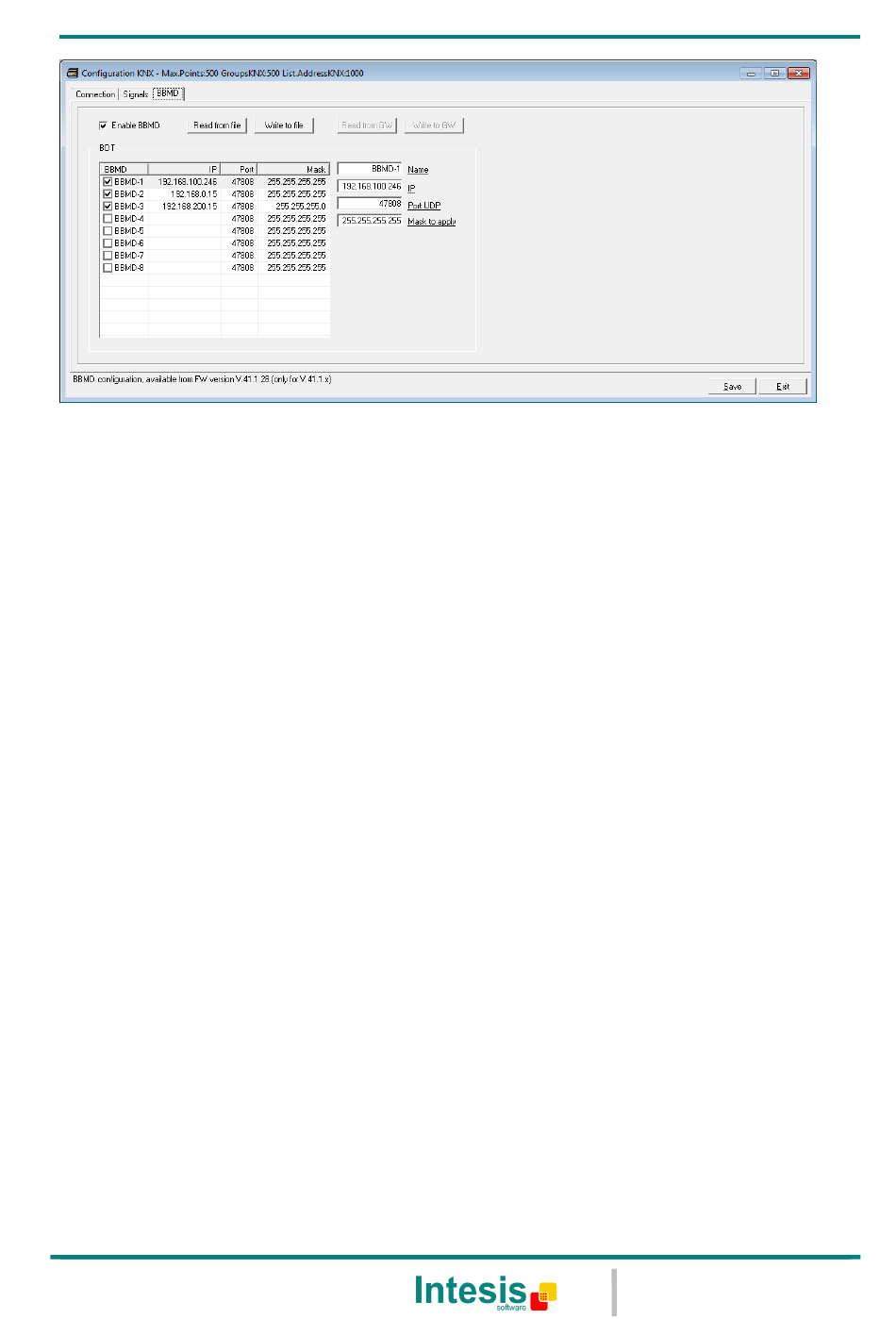

Figure 5.7 BBMD configuration
