IntesisBox KNX TP-1 (EIB) User Manual page 15

®
IntesisBox BACnet/IP Server - KNX
BACnet/IP interface configuration parameters:
•
IP: Enter the IP address for the gateway (supplied by the network administrator).
•
NetMask: Enter the IP NetMask for the gateway (supplied by the network
administrator).
•
Gateway: Enter the Default Gateway address (router address) in case the gateway
(IntesisBox) is in a different sub network than other BACnet devices (supplied by the
network administrator). Leave blank if there is no need of router address.
•
BACnet Port: Enter the BACnet port number used by the gateway (by default
47808, which is BAC0).
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

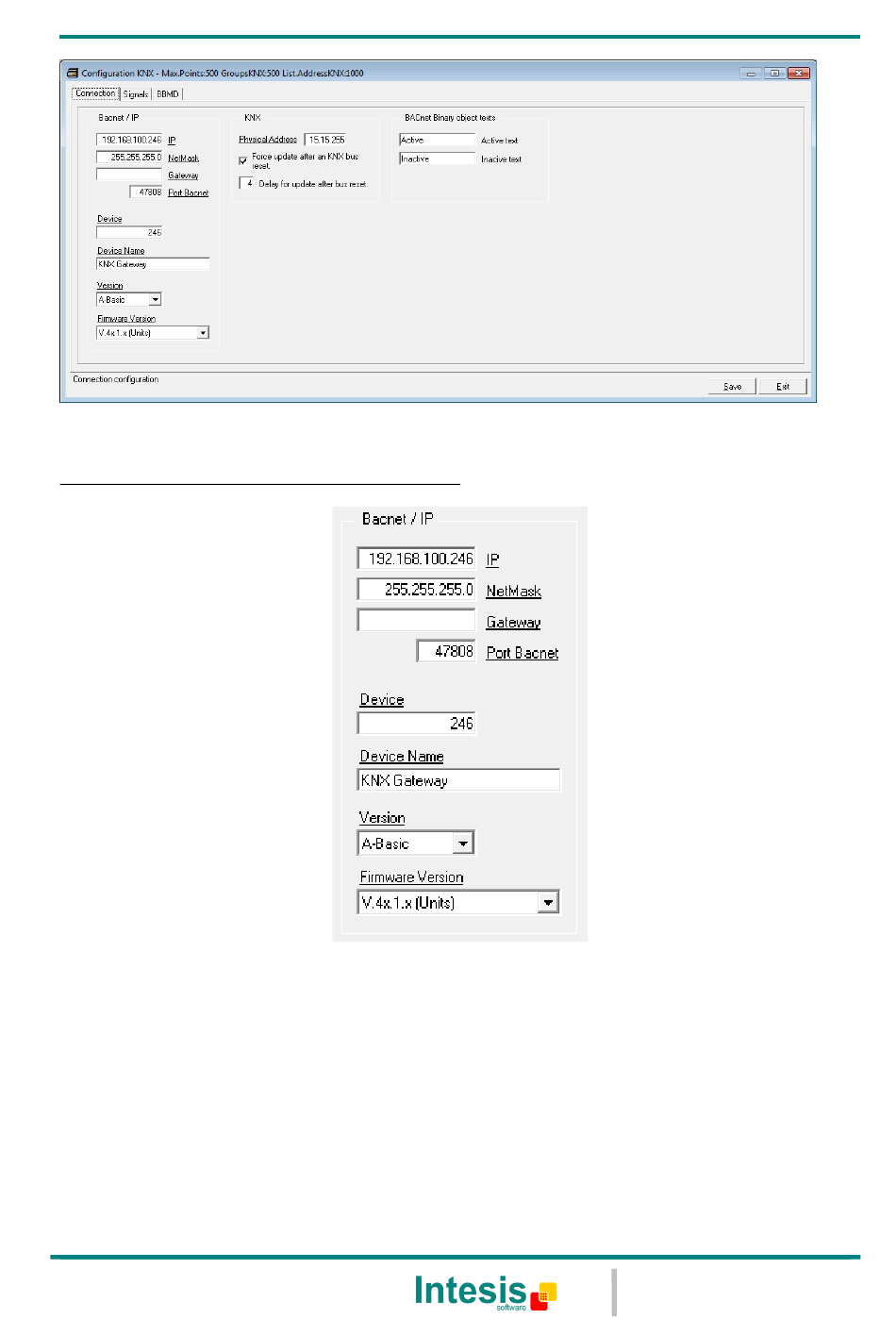

Figure 5.2 Configuration: Connection Tab
Figure 5.3 BACnet/IP interface Configuration
User's Manual r18 eng
URL http://www.intesis.com
Email info@intesis.com
tel +34 938047134
15 / 31
