Active text: text for the "Active_Text" property of all the Binary objects.
•
Inactive text: text for the "Inactive_Text" property of all the Binary objects.

5.1.2 Signals configuration

Select the Signals tab (Figure 5.6) to configure the signals list (the IntesisBox internal
points). More information about the meaning of the columns can be found in the tables
below.
Every row in the grid corresponds to a signal (point). Signals (rows in the grid) can be
added or deleted selecting the desired row and clicking Add or Delete buttons. Multiple
consecutive rows can be deleted too.
Description Enumeration of the rows in the grid (signals). If clicked on them the whole
row will be selected (to be used to delete/add rows
Restrictions Cannot be edited
Description Select the type of signal
Values
Restrictions Cannot be edited
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

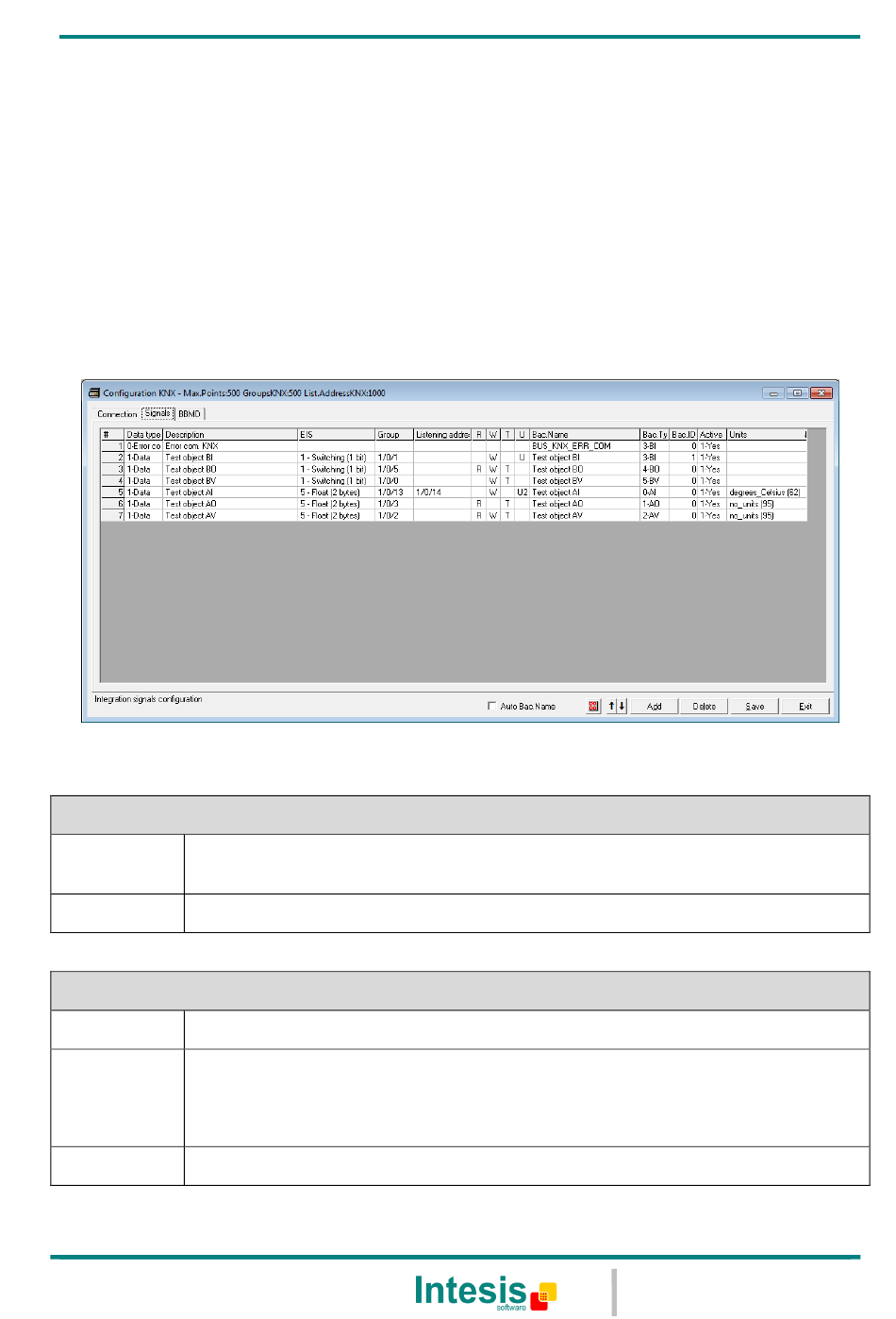

Figure 5.6 Signal list
# (Signal's number)
•
Communication Error: indicate to the BACnet side a communication
error within the KNX system
•
Data: for normal signals
Data type
URL
Email
tel
User's Manual r18 eng
