How To Change the Configuration Data
The configuration data that determines the system parameters may be changed by entering
the AMI BIOS setup utility. This setup utility can be accessed by pressing <Delete> at the
appropriate time during system boot.
Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Recovery User
Guide posted at http://www.supermicro.com/support/manuals/.
4.2 Main Setup
When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can
always return to the Main setup screen by selecting the Main tab on the top of the screen.

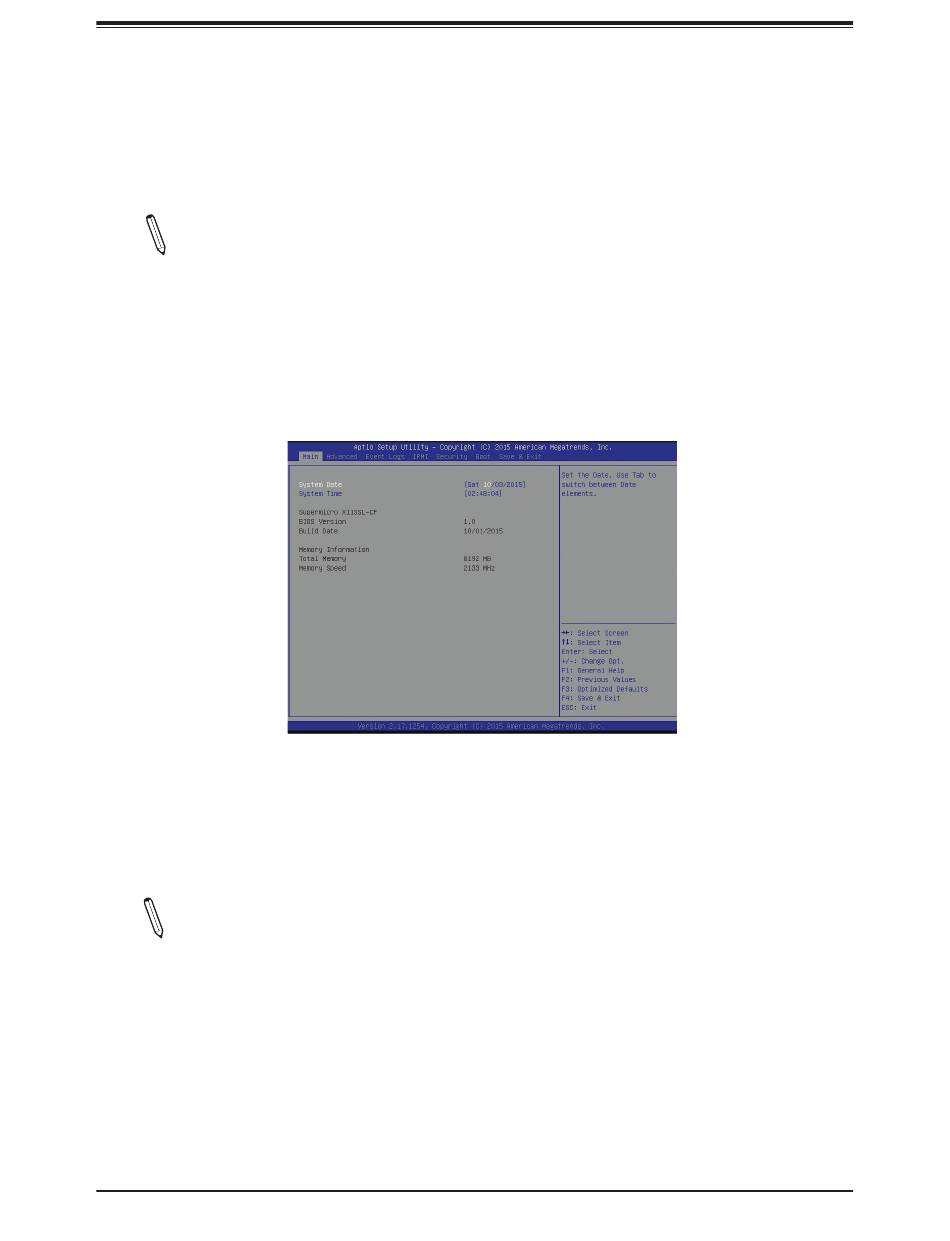

The Main BIOS setup screen is shown below. The following Main menu items will display:
System Date/System Time
Use this option to change the system date and time. Highlight System Date or System Time
using the arrow keys. Enter new values using the keyboard. Press the <Tab> key or the arrow
keys to move between fields. The date must be entered in Day MM/DD/YYYY format. The
time is entered in HH:MM:SS format.
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.
The default value for System Date is 01/01/2015 after RTC (Real Time Clock) reset.
Supermicro X11SSL-CF
BIOS Version
This feature displays the version of the BIOS ROM used in the system.
Build Date
This feature displays the date when the version of the BIOS ROM used in the system was built.
73
Chapter 4: BIOS
