Supermicro X11SSL-nF Quick Reference Manual

S
UPERMICR
R
X11SSL-CF_(- F)
N
Q R G 1.00
UICK EFERENCE UIDE

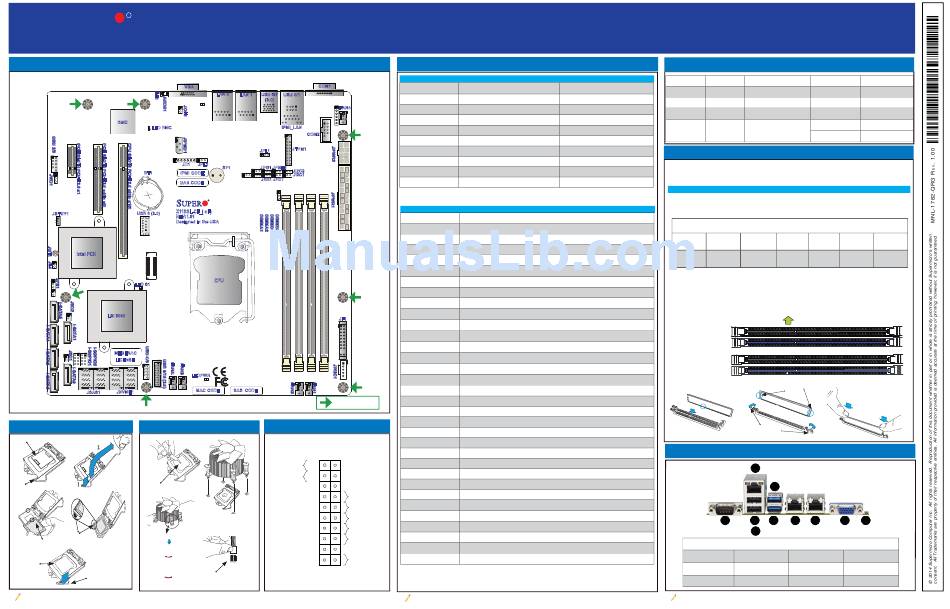

Motherboard Layout and Features
VGA
BMC
LED BMC
JD1
BT1 IPMI CODE
BAR CODE
X11SSL-CF_(-nF)
USB 8 (3.0)
JSTBY1
REV:1.01
Designed in the USA
Intel PCH
LED S1
LSI 3008
MEGERAC
LICENSE
LEDPWR
JSAS1 JNVME1
CPU Installation Heatsink Installation
Load Plate
Thermal Paste
Load Lever
Push Down
Pin 1
North Center Edge
Turn Clockwise
to Lock
CPU Properly
Turn Counter-
Installed
clockwise to
Unlock
Load Lever Locked
Connect the Heatsink Wire to
into Place
the CPU Fan Connector
Note: Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this
C I
ONTACT NFORMATION
• Website: www.supermicro.com
• General Information: marketing@supermicro.com
• Technical Support: support@supermicro.com
• Phone: +1 (408) 503-8000, Fax: +1 (408) 503-8008
COM1
LAN 2 USB 6/7
LAN 1 USB 0/1
(3.0)
FAN4
IPMI_LAN
COM2
JTPM1
JPL1
JPL2
JPME2
SP1 JPG1
JI2C2
JI2C1
JBR1 JPB1
CPU
JF1
MAC CODE SAS CODE
= mounting hole
Front Panel Control (JF1)
1 2
Power Button PWR Ground
Reset Button Reset Ground
X X
Red+ (Blue LED Cathode)
Blue+ (OH/Fan Fail)
NIC2 Active LED
NIC2 Link LED
NIC1 Active LED
NIC1 Link LED
ID_UID_SW/3.3V Stdby
HDD LED
3.3 V FP PWRLED
X X
3.3V Power Fail LED
19 20
guide.
F ,
OR YOUR SYSTEM TO WORK PROPERLY PLEASE DOWNLOAD APPROPRIATE
/ / '
DRIVERS IMAGES USER S MANUAL FROM THE LINKS BELOW
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: ftp://ftp.supermicro.com/CDR_Images/CDR-X11-UP/
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm
Jumpers and Connectors
Jumpers
Jumper Description
JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 Clear CMOS See Chapter 2
JI C1/JI C2 SMB to PCI Slots Pins 2-3 (Disabled)
2 2
JPB1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable Pins 1-2 (Enabled)
JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)
JPME2 Manufacturing Mode Select Pins 1-2 (Normal)
JPS1 SAS Enable Pins 1-2 (Enabled)
JWD1 Watch Dog Enable Pins 1-2 (Reset)
Connectors
Connector Description
BT1 Onboard Battery
COM1/COM2 COM1/COM2 Port Headers
Fan1-Fan4, FanA System/CPU Fan Headers
IPMI_LAN IPMI_Dedicated Gigabit (RJ45) Port
I-SATA0-I-SATA5
SATA 3.0 Connectors via Intel PCH (6Gb/s)
I-SGPIO 1/2 Serial_Link General Purpose I/O Connection Headers for I-SATA 3.0 connections
JD1 Speaker/Power LED Indicator
JF1 Front Panel Control Header
JIPMB1 4-pin External BMC I 2 C Header (for an IPMI Card)
JL1 Chassis Intrusion Header
JNVME1 Two (2) NVMe SSD Ports (X11SSL-nF Only)
JOH1 Overheat LED Indicator
JPI 2 C1 Power I 2 C System Management Bus (Power SMB) Header
JPWR1 24-pin ATX Main Power Connector (Required)
JPWR2 +12V 8-pin CPU Power Connector (Required)
JSAS1 Two (2) Mini-SAS HD Ports (X11SSL-CF Only)
JSD1/JSD2 SATA Disk On Module (DOM) Power Connectors
JSTBY1 Wake-On-LAN Enable Header
JTPM1 Trusted Platform Module/Port 80 Connector
JUIDB1 UID (Unit Identifi cation) Switch
LAN1/LAN2 Gigabit (RJ45) LAN Ports
PCI-E (PCH) Slot 4 PCI-Express 3.0 x1 Slot
PCI-E (PCH) Slot 5 PCI-Express 3.0 x4 in x8 Slot
PCI-E (CPU) Slot 6 PCI-Express 3.0 x8 in x16 Slot
SP1 Internal Speaker/Buzzer
USB 0/1 Back Panel USB 2.0 Ports
USB 2/3 Front Accessible USB 2.0 Headers
USB 4/5 Front Accessible USB 2.0 Headers
USB 6/7 Back Panel USB 3.0 Ports
USB 8 USB 3.0 Type-A Header
USB 9/10 Front Accessible USB 3.0 Header
VGA Back Panel VGA Port
Note: Refer to Chapter 1 of the User Manual for detailed information on jumpers, connectors,
and LED indicators.
P
ACKAGE
• One (1) Supermicro Motherboard
:
• Six (6) SATA Cables
• One (1) I/O Shield
• One (1) Quick Reference Guide
LED Indicators
LED Item # Description
Default
LE1 60 Rear UID LED
LEDBMC 61 BMC Heartbeat LED
LEDPWR 62 System Power LED
LEDS1 63 SAS LED
Memory Support
The X11SSL-CF_(-nF) has four (4) 288-pin DIMM slots that support up to 64GB of
SDRAM 72-bit DDR4 unbuffered ECC 2133/1866/1600/1333MHz memory.
DIMM Memory Installation
Memory Population Guidelines
Please follow the table below when populating the X11SSL-CF_(-nF):
Memory Module Population
DIMM Slots POR Speeds
DIMM Type
per Channel (MHz)
Unbuffered 2133, 1866,
2
DDR4 ECC 1600, 1333
Insert the desired number of DIMMs into the memory slots. The DIMM slots
should be populated in the following order: DIMMB2, DIMMA2, DIMMB1,
DIMMA1. For the system to work properly, please use memory modules of the
same type and speed in the motherboard.
Channel A Slot 1
Channel A Slot 2
(Blue Slot)
Channel B Slot 1
Channel B Slot 2
(Blue Slot)
Release Tabs
Back Panel I/O Connectors
D
F
A C E
B
I/O Back Panel
A. COM 1 D. IPMI LAN
B. USB Port 0 (2.0) E. USB Port 6 (3.0)
C. USB Port 1 (2.0) F. USB Port 7 (3.0)
Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/
motherboard installation instructions.
C
ONTENTS
Color/State Status
Blue: On Unit Identifi ed
Green: Blinking BMC Normal
Green: Solid on Power On
Green Blinking SAS Active
Red: Solid On SAS Error
Ranks per Layer Supported
FW Base
DIMM Count Voltage
SR, DR 6 SPS 1.2V 1
Towards the CPU
Notches
Press both notches
straight down into
the memory slot.
G H I J
G. LAN1 J. UID Switch
H. LAN2
I. VGA
