LAN Port Enable/Disable
Change the setting of jumper JPL1/JPL2 to enable or disable the LAN1/LAN2 LAN ports,
respectively. The default setting is Enabled.
CMOS Clear
JBT1 is used to clear the CMOS. Instead of pins, this "jumper" consists of contact pads to
prevent accidental clearing of the CMOS. To clear the CMOS, use a metal object such as a
small screwdriver to touch both pads at the same time to short the connection.
Note: Be sure to completely shut down the system, and then short JBT1 to clear the
CMOS.

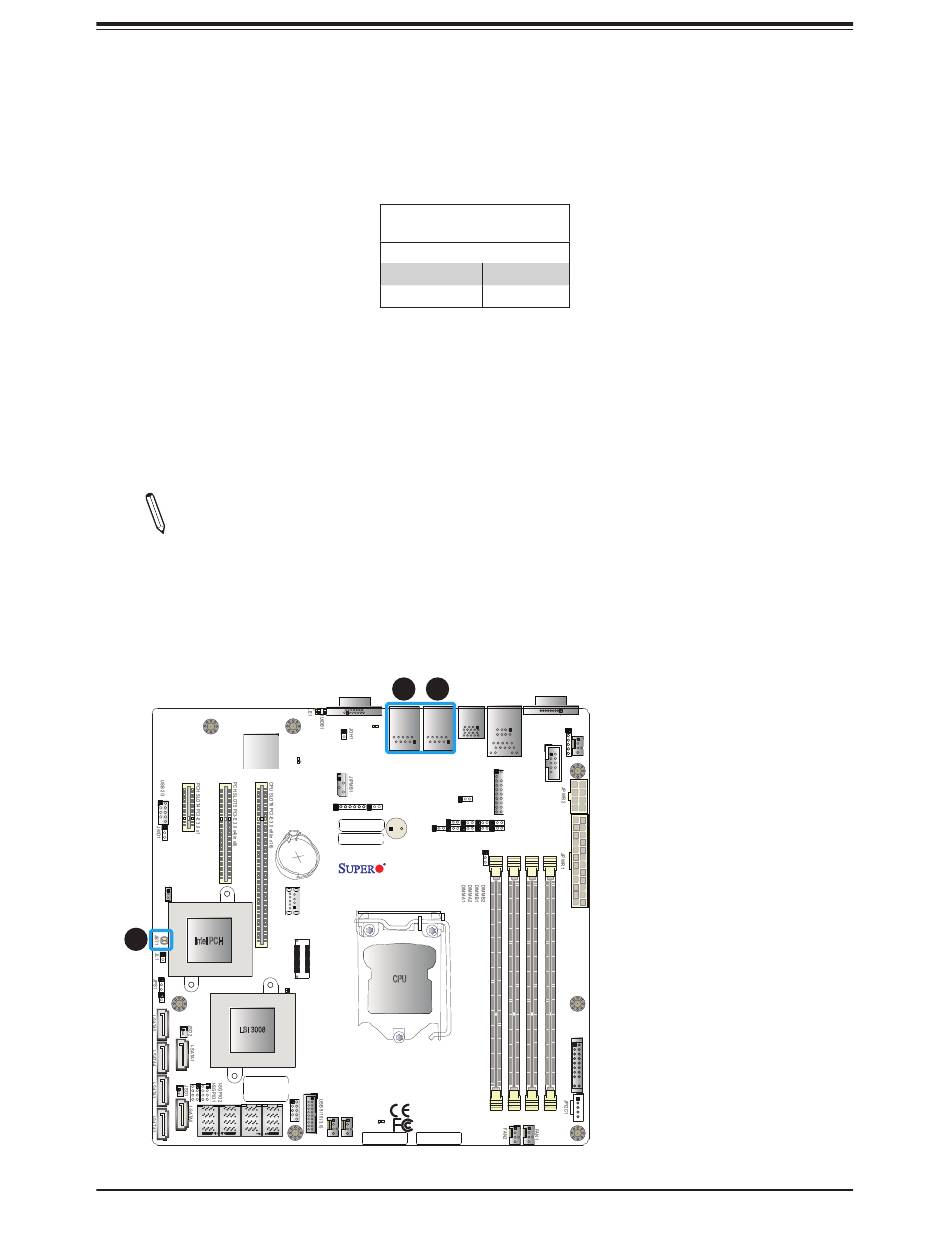

BMC
