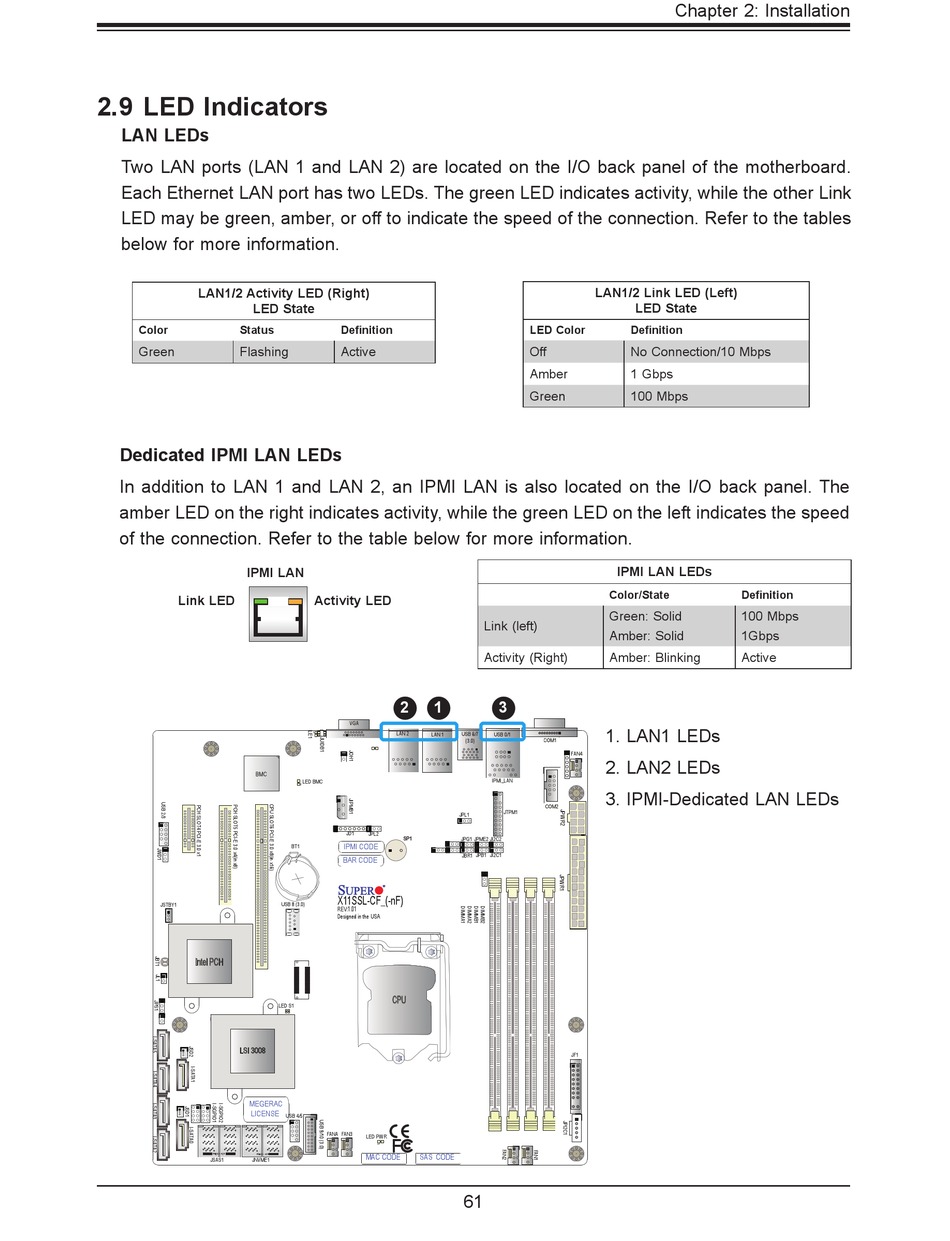

2.9 LED Indicators

LAN LEDs
Two LAN ports (LAN 1 and LAN 2) are located on the I/O back panel of the motherboard.
Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link
LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables
below for more information.
LAN1/2 Activity LED (Right)
LED State
Color Status
Green Flashing
Dedicated IPMI LAN LEDs
In addition to LAN 1 and LAN 2, an IPMI LAN is also located on the I/O back panel. The
amber LED on the right indicates activity, while the green LED on the left indicates the speed
of the connection. Refer to the table below for more information.
LAN 1/LAN 2
IPMI LAN
Link LED
IPMI LAN
(X8ST3-F)
BMC
JSTBY1
Intel PCH
LSI 3008
MEGERAC
LICENSE
JSAS1 JNVME1
Definition
Active
Activity LED
2 1
VGA
LAN 2
LAN 1
LED BMC
JD1
JPL2
SP1 SP1
IPMI CODE
BT1
BAR CODE
X11SSL-CF_(-nF)
USB 8 (3.0)
REV:1.01
Designed in the USA
CPU
LED S1
USB 4/5
FANA FAN3
LED PWR
MAC CODE SAS CODE
LAN1/2 Link LED (Left)
LED State
LED Color Definition
Off No Connection/10 Mbps
Amber 1 Gbps
Green 100 Mbps
IPMI LAN LEDs
Color/State
Green: Solid
Link (left)
Amber: Solid
Activity (Right) Amber: Blinking
3
1. LAN1 LEDs
USB 6/7
USB 0/1
COM1
(3.0)
FAN4
2. LAN2 LEDs
IPMI_LAN
3. IPMI-Dedicated LAN LEDs
COM2
JTPM1
JPL1
JPG1 JPME2 JI2C2
JBR1 JPB1 JI2C1
JF1
61
Chapter 2: Installation
Definition
100 Mbps
1Gbps
Active
