X11SSL-CF/-nF User Manual

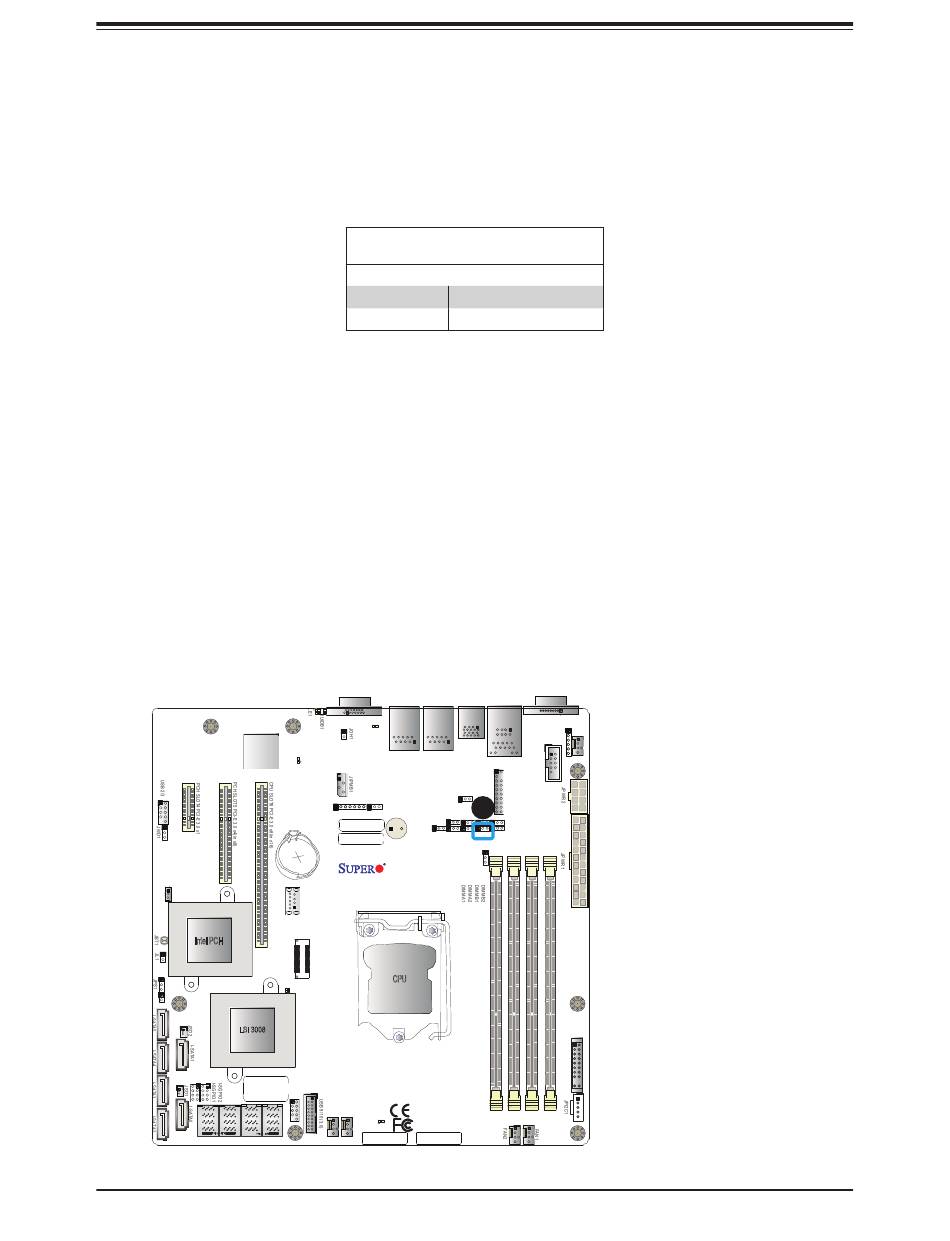

BMC Enable
Jumper JPB1 allows the user to enable the embedded BMC (Baseboard Management)
Controller to provide IPMI 2.0/KVM support. The default setting is BMC Enable. Refer to the
table below for jumper settings.
BMC
JSTBY1
Intel PCH
LSI 3008
MEGERAC
LICENSE
JSAS1 JNVME1
BMC Enable
Jumper Settings
Jumper Setting Definition
Pins 1-2 BMC Enabled
Pins 2-3 Disabled
VGA
LAN 2
LAN 1
LED BMC
JD1
JPL2
SP1 SP1
IPMI CODE
BT1
BAR CODE
X11SSL-CF_(-nF)
USB 8 (3.0)
REV:1.01
Designed in the USA
CPU
LED S1
USB 4/5
FANA FAN3
LED PWR
MAC CODE SAS CODE
USB 6/7 USB 0/1
COM1
(3.0)
FAN4
IPMI_LAN
COM2
JTPM1
JPL1
1
JPG1 JPME2 JI2C2
JBR1 JPB1 JI2C1
JF1
60
1. BMC Enable
