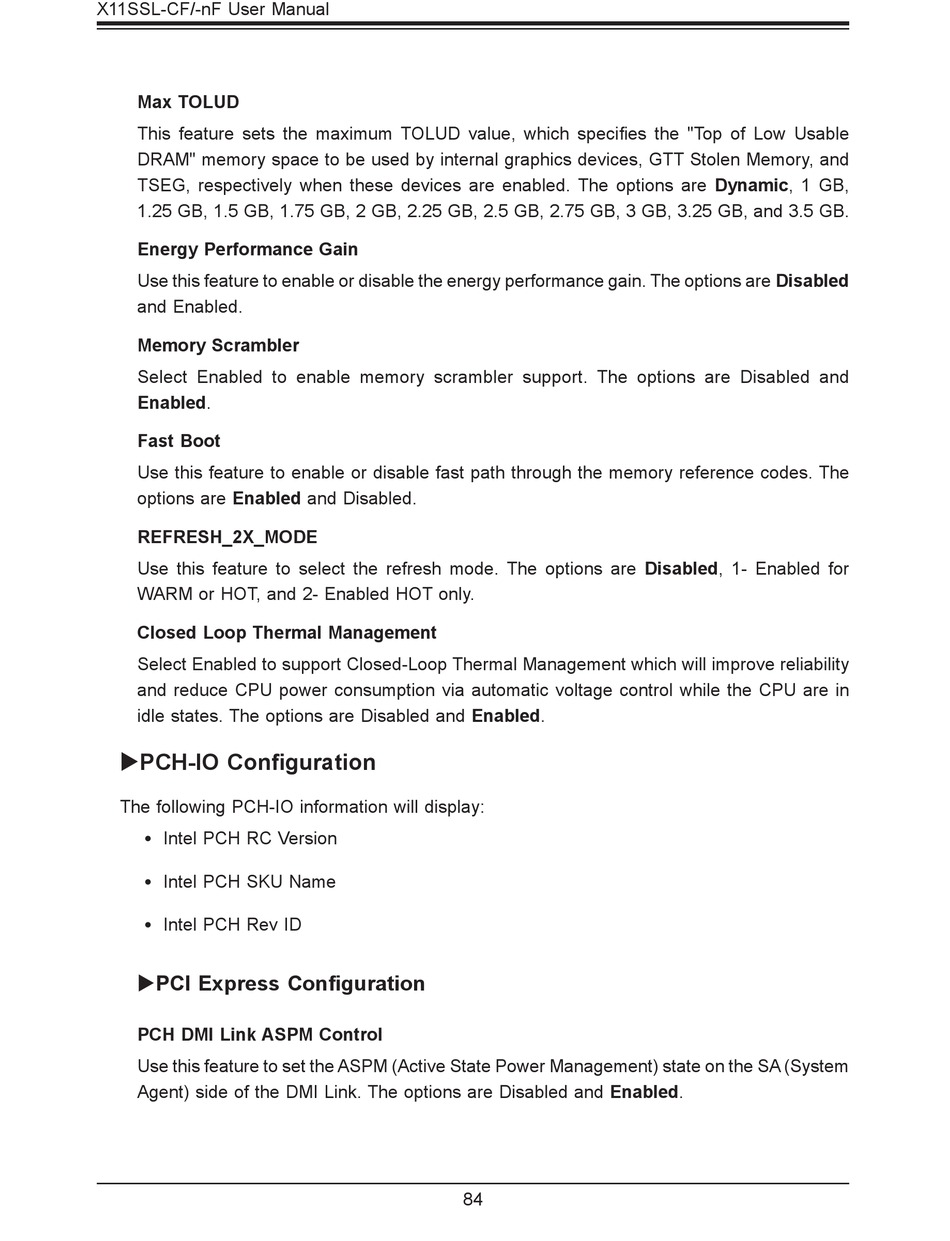

X11SSL-CF/-nF User Manual
Max TOLUD
This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable
DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and
TSEG, respectively when these devices are enabled. The options are Dynamic, 1 GB,
1.25 GB, 1.5 GB, 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3 GB, 3.25 GB, and 3.5 GB.
Energy Performance Gain
Use this feature to enable or disable the energy performance gain. The options are Disabled
and Enabled.
Memory Scrambler
Select Enabled to enable memory scrambler support. The options are Disabled and
Enabled.
Fast Boot
Use this feature to enable or disable fast path through the memory reference codes. The
options are Enabled and Disabled.
REFRESH_2X_MODE
Use this feature to select the refresh mode. The options are Disabled, 1- Enabled for
WARM or HOT, and 2- Enabled HOT only.
Closed Loop Thermal Management
Select Enabled to support Closed-Loop Thermal Management which will improve reliability
and reduce CPU power consumption via automatic voltage control while the CPU are in
idle states. The options are Disabled and Enabled.
PCH-IO Configuration
The following PCH-IO information will display:
•
Intel PCH RC Version
•
Intel PCH SKU Name
•
Intel PCH Rev ID
PCI Express Configuration
PCH DMI Link ASPM Control
Use this feature to set the ASPM (Active State Power Management) state on the SA (System
Agent) side of the DMI Link. The options are Disabled and Enabled.
84
