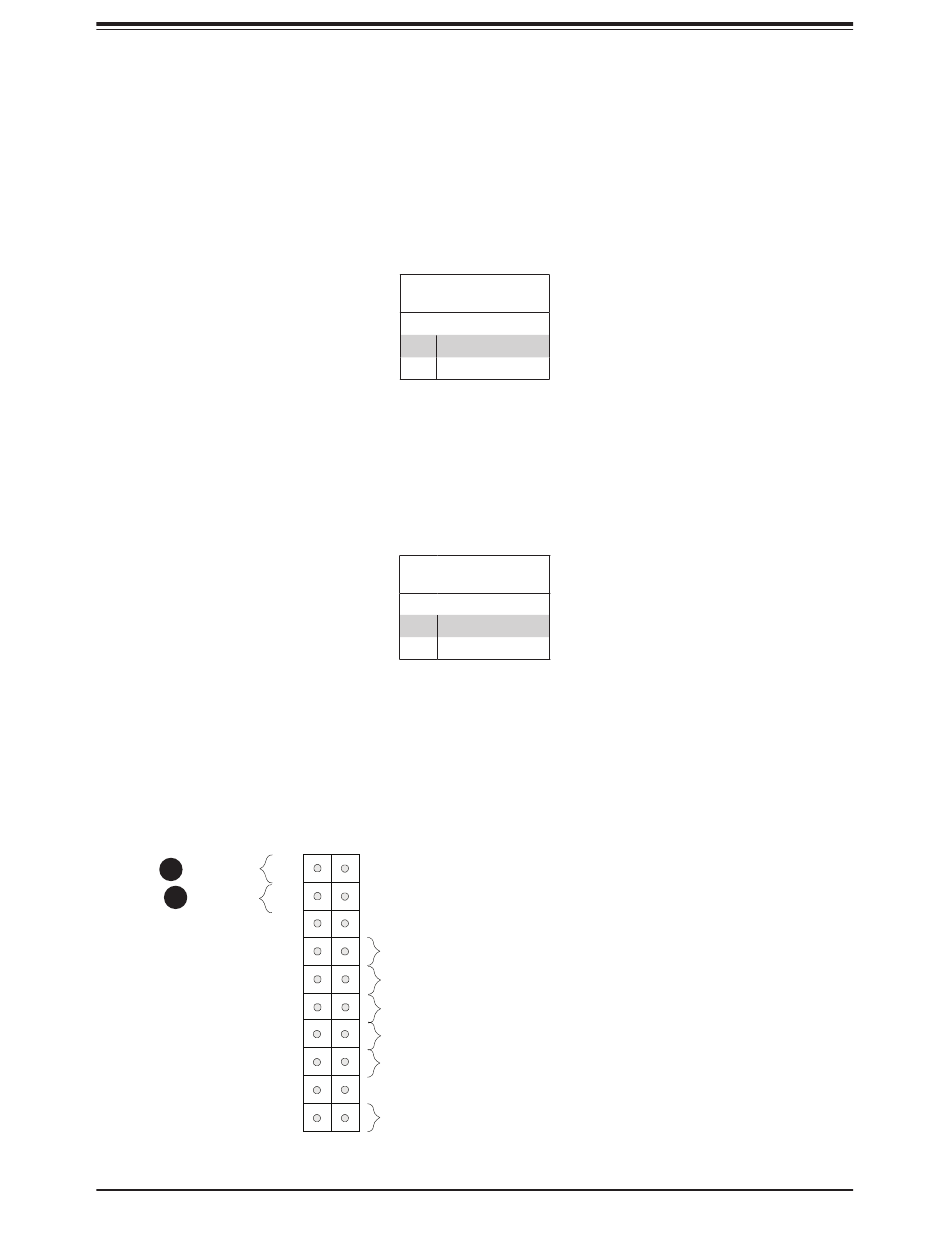

Power Button
The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both
pins will power on/off the system. This button can also be configured to function as a suspend
button (with a setting in the BIOS - see Chapter 4). To turn off the power when the system
is in suspend mode, press the button for 4 seconds or longer. Refer to the table below for
pin definitions.
Reset Button
The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset
switch on the computer case. Refer to the table below for pin definitions.
1
Power Button PWR
2
Reset Button
Reset
Red+ (Blue LED Cathode)
NIC2 Active LED
NIC1 Active LED
ID_UID_SW/3.3V Stdby
3.3 V
3.3V
Power Button
Pin Definitions (JF1)
Pin# Definition
1 Signal
2 Ground
Reset Button
Pin Definitions (JF1)
Pin# Definition
3 Reset
4 Ground
1 2
Ground
Ground
X X
Blue+ (OH/Fan Fail)
NIC2 Link LED
NIC1 Link LED
HDD LED
FP PWRLED
X
X
Power Fail LED
19 20
40
1. PWR Button
2. Reset Button
