Programming

3 Programming

3.1 How to Programme

3 3
3.1.1 Programming with MCT 10 Set-up
Software
The frequency converter can be programmed from a PC
via RS-485 com-port by installing the MCT 10 Set-up
Software.
This software can either be ordered using code number
130B1000 or downloaded from the Danfoss Web site:
www.danfoss.com/BusinessAreas/DrivesSolutions/software-
download
Refer to the manual for Motion Control Tools MG10R.

3.1.2 Programming with the LCP 11 or LCP

12
The LCP is divided into four functional groups:
1. Numeric display.
2. Menu key.
3. Navigation keys.
4. Operation keys and indicator lights (LEDs).

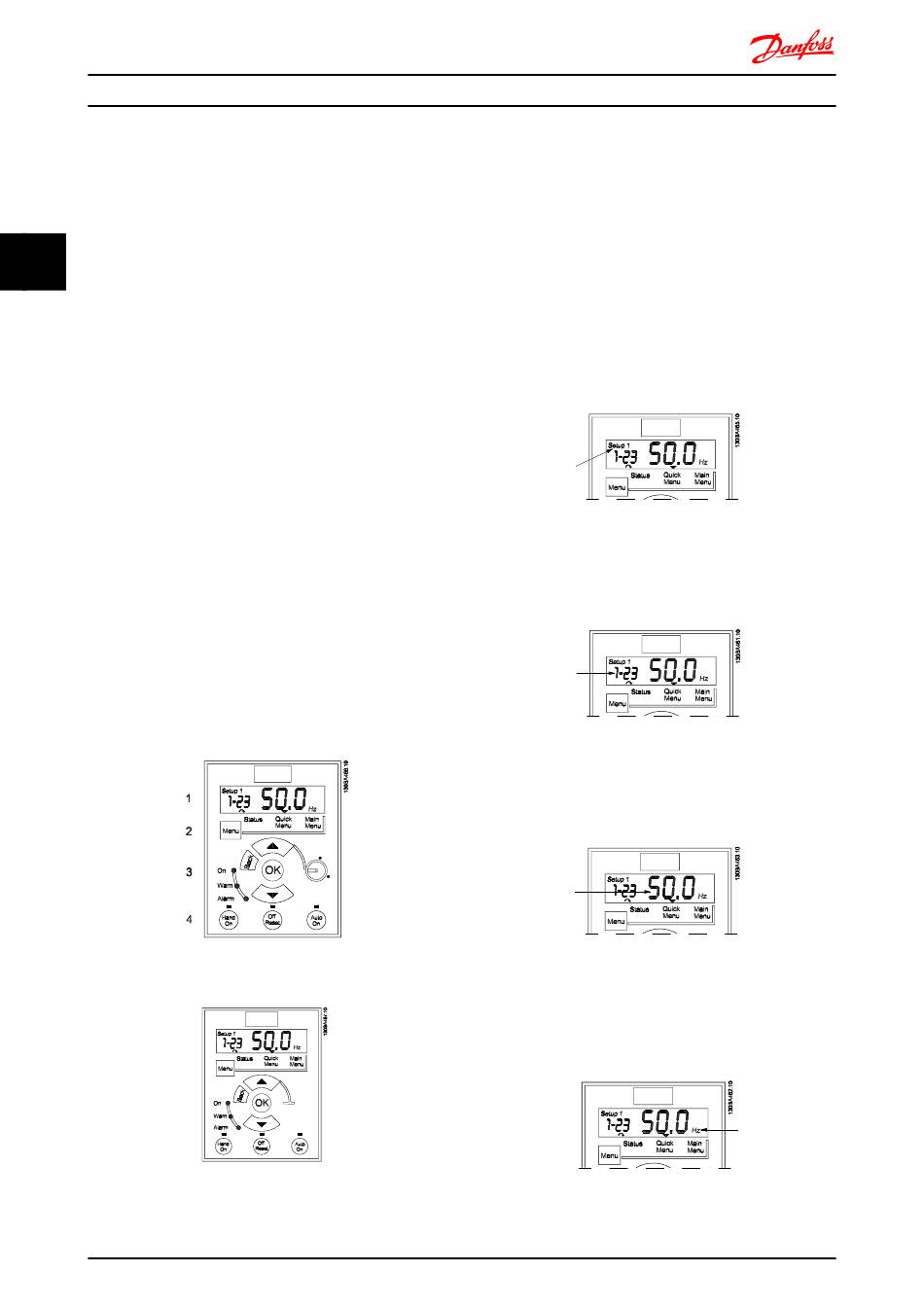

Illustration 3.1 LCP 12 with Potentiometer
Illustration 3.2 LCP 11 without Potentiometer
8
®
VLT Micro Drive FC 51 Programming Guide
The display
Different information can be read from the display.
Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting).
When active and edit set-up differ, both numbers are
shown in the display (Set-up 12). The number flashing,
indicates the edit set-up.
Illustration 3.3 Indicating Set-up
The small digits to the left are the selected parameter
number.
Illustration 3.4 Indicating Selected Parameter Number
The large digits in the middle of the display show the
value of the selected parameter.
Illustration 3.5 Indicating Value of Selected Parameter
The right side of the display shows the unit of the selected
parameter. This can be either Hz, A, V, kW, HP, %, s or
RPM.
Illustration 3.6 Indicating Unit of Selected Parameter
®
