Parameter Descriptions

4.10 Parameter Group 13: Smart Logic

4.10.1 13-** Programming Features

Smart Logic Control (SLC)is a sequence of user-defined
actions (13-52 SL Controller Action [X]) executed by the SLC
when the associated user-defined event (13-51 SL Controller
Event [X]) is set to True.
4 4
Events and actions are linked in pairs, meaning that when
an event is true, the linked action is carried out. After this
the next event is evaluated and its belonging action
carried out and so on. Only one event is evaluated at the
time.
If an event is evaluated as False, the SLC takes no action
during the scan interval and no other events are evaluated.
It is possible to programme from 1 to 20 events and
actions.
When the last event/action has been executed, the
sequence starts again from event/action [0].
Start
event P13-01
Stop
event P13-02
State 4
Event 4/
Action 4

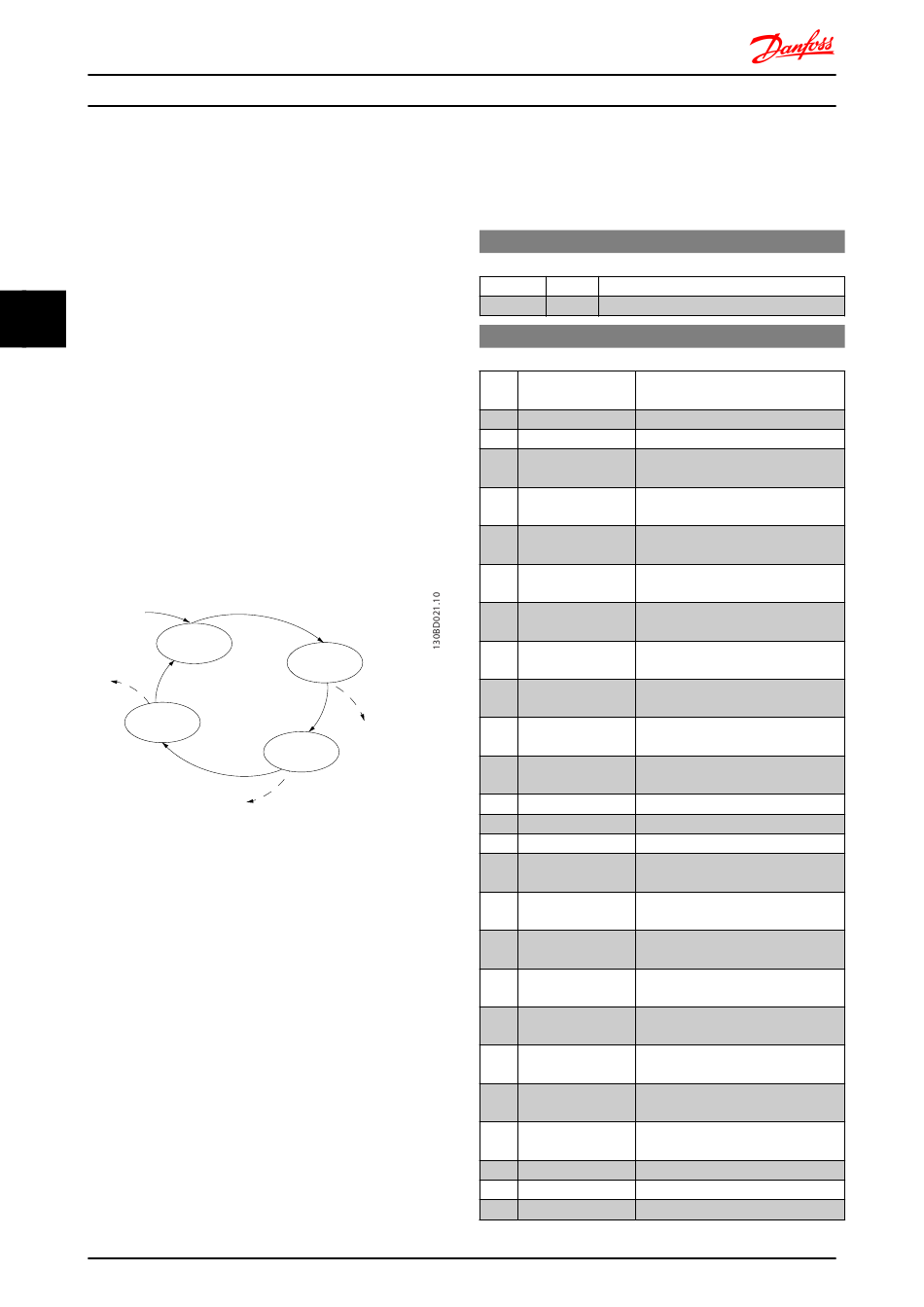

Illustration 4.10 Example with Three Events/Actions
Starting and stopping the SLC
Start the SLC by selecting [1] On in 13-00 SL Controller
Mode The SLC starts evaluating Event 0, and if this is
evaluated as TRUE, the SLC continues its cycle.
The SLC stops when the Stop Event, 13-02 Stop Event, is
TRUE. The SLC can also be stopped by selecting [0] Off in
13-00 SL Controller Mode.
To reset all SLC parameters select [1] Reset SLC in 13-03
Reset Smart Logic Controller and start programming from
scratch.
40
State 1
Event 1/
Action 1
State 2
Event 2/
Action 2
State 3
Event 3/
Action 3
Stop
event P13-02
MG02C602 - VLT
®
VLT Micro Drive FC 51 Programming Guide
4.10.2 13-0* SLC Settings
Use SLC settings to activate, deactivate and reset the
Smart Logic Control.
13-00 SL Controller Mode
Option:
[0]
*
[1]
13-01 Start Event
Option:
[0] False
[1] True
[2] Running
[3] InRange
[4] OnReference
[7] Out of Current
Range
[8] BelowILow
[9] AboveIHigh
[16] ThermalWarning
Stop
event P13-02
[17] MainsOutOfRange
[18] Reversing
[19] Warning
[20] Alarm_Trip
[21] Alarm_TripLock
[22] Comparator 0
[23] Comparator 1
[24] Comparator 2
[25] Comparator 3
[26] LogicRule 0
[27] LogicRule 1
[28] LogicRule 2
[29] LogicRule 3
[33] DigitalInput_18
[34] DigitalInput_19
[35] DigitalInput_27
®
is a registered Danfoss trademark
Function:
Off Function is disabled.
On SLC is active.
Function:
Select input to activate Smart Logic
Control.
Enters False in logic rule.
Enters True in logic rule.
See parameter group 5-4* Relays [5]
for description.
See parameter group 5-4* Relays [7]
for description.
See parameter group 5-4* Relays [8]
for description.
See parameter group 5-4* Relays [12]
for description.
See parameter group 5-4* Relays [13]
for description.
See parameter group 5-4* Relays [14]
for description.
See parameter group 5-4* Relays [21]
for description.
Mains voltage is outside the
specified voltage range.
See parameter group 5-4* Relays [25]
for description.
A warning is active.
A trip alarm is active.
A trip lock alarm is active.
Use result of comparator 0 in logic
rule.
Use result of comparator 1 in logic
rule.
Use result of comparator 2 in logic
rule.
Use result of comparator 3 in logic
rule.
Use result of logic rule 0 in logic
rule.
Use result of logic rule 1 in logic
rule.
Use result of logic rule 2 in logic
rule.
Use result of logic rule 3 in logic
rule.
Use value of DI 18 in logic rule.
Use value of DI 19 in logic rule.
Use value of DI 27 in logic rule.
