Installing the System
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
TO ZONE
INPUT
DEVICE
(SHARED COMMONS)

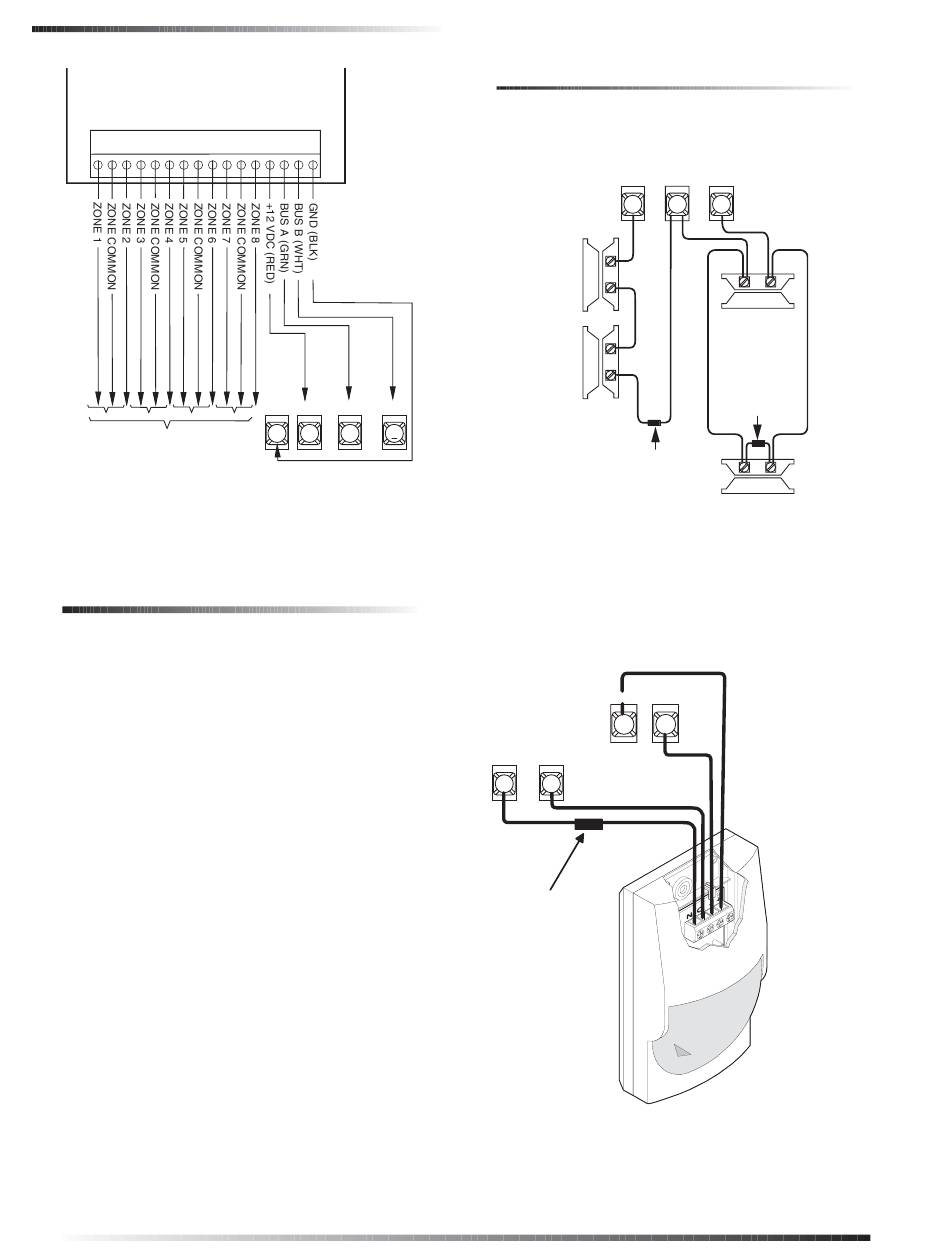

Figure 9. Connecting a HIM to the Panel
Connecting Detection Devices to Panel
Zone Inputs
The panel comes with six factory programmed onboard har-
wire zones (see "Learn Sensors (Sensors)" on page 29 for
factory settings). Zone inputs 1 through 6 are supervised
using a 2k-ohm, end-of-line resistor (included with panel) at
the last device on the circuit.
œÌi
Install an end-of-line resistor on all unused, factory
programmed, onboard panel zones.
All six zones accept either normally open (N/O) or nor-
mally closed (N/C) detection devices (see Figure 10).
The maximum loop resistance for each zone input is 300
ohms, plus the 2k end-of-line (EOL) resistor.
6
GND +12V A BUS B
3 4 5 6
P A N E L T E R M I N A L S
Connecting Intrusion Detection Devices
Figure 10 shows the typical wiring for N/C and N/O door/
window intrusion detection.
ZONE
1
P A N E L
T E R M I N A L S 9
NORMALLY
CLOSED
(N/C)
CONTACTS
IN SERIES
2k Ohm
EOL RESISTOR
49-454
8642G06A.DS4
Figure 10. Connecting N/C and N/O Intrusion
Detection Circuits
Figure 11 shows the typical wiring for Optex model RX-
040 (PI) PIR motion detectors. The minimum available
panel voltage for hardwired PIR motion detectors is 8.5
VDC (9.1 VDC for UL Listed systems).
GND
3
ZONE
3 ZCOM
12 13
2k Ohm EOL
RESISTOR 49-454
(LOCATE AT LAST
DEVICE)
Figure 11. Connecting a PIR Motion Detector
ZONE
ZCOM 2
10 11
NORMALLY
OPEN
(N/O)
CONTACTS
IN PARALLEL
2k Ohm
EOL RESISTOR
49-454
+12V
4
