Installing the System
5. Install anchors where studs are not present.
6. Partially insert screws into the two top mounting hole
locations, then hang the panel on the two screws.
7. Recheck for levelness, insert the two lower screws, and
tighten all four mounting screws.
KNOCKOUT
MOUNTING HOLES

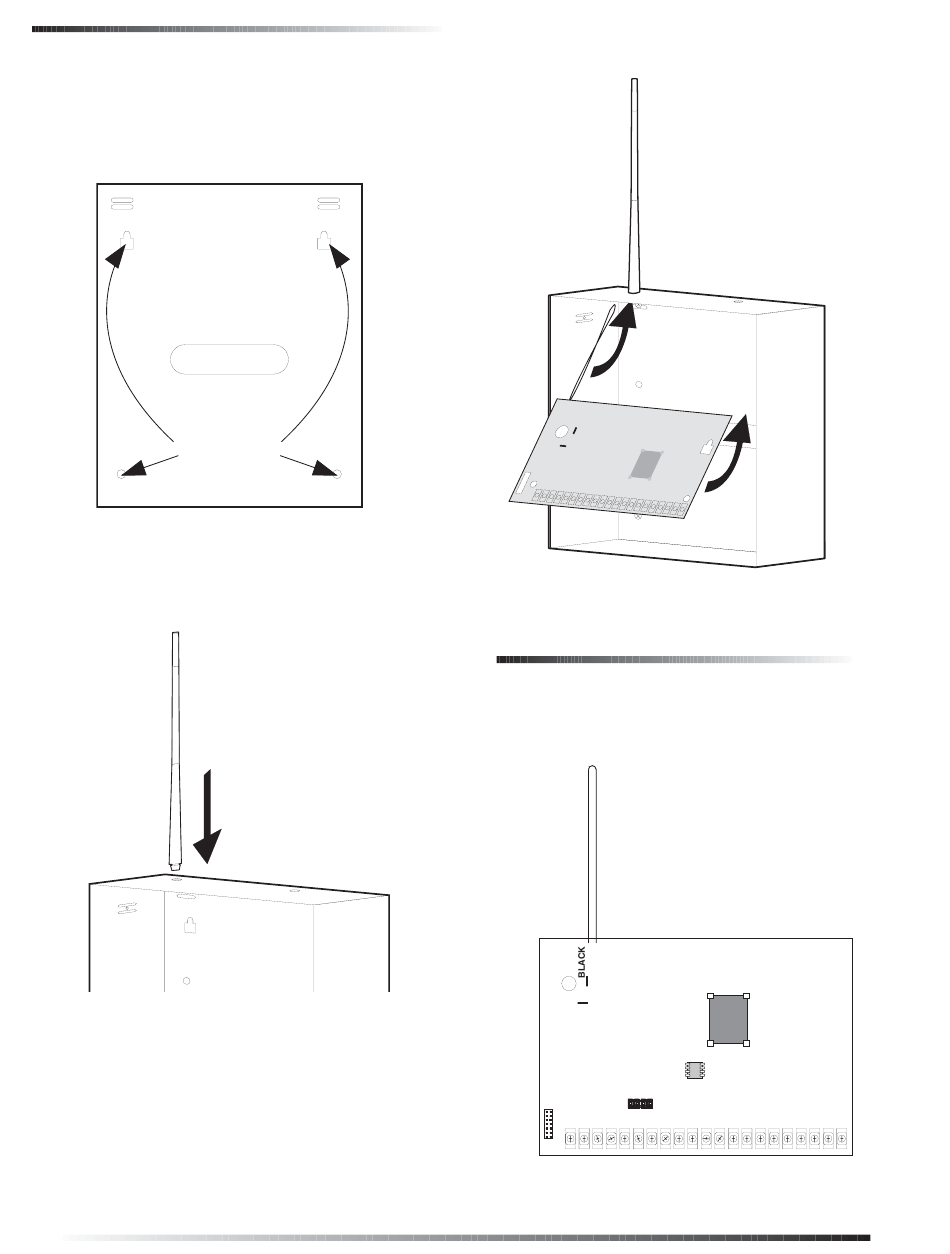

Figure 2. Mounting the Cabinet
8. Install the antenna housing (included with the panel) by
pushing it down into the top left hole of the cabinet
until it snaps into place (see Figure 3).
ANTENNA
HOUSING
Figure 3. Installing the Antenna Housing
9. Install the circuit board into the cabinet, inserting the
loop antenna loop up into the antenna housing (see Fig-
ure 4), then secure the circuit board with the four
mounting screws (included).
4
8642G02A.DSF
Figure 4. Installing the Circuit Board

Identify Panel Components

Before installing devices and making wiring connections,
familiarize yourself with the main components of the panel.
Figure 5 shows the main component locations on the circuit
board.
SNAP
CARD
HEADER
Figure 5. Main Component Locations
INSERT ANTENNA
LOOP UP INTO
ANTENNA HOUSING
ANTENNA
LOOP
BACKUP
MICRO
BATTERY
PROCESSOR
RED
CONNECTIONS
EEPROM
PROGRAMMING
TOUCHPAD
HEADER
TERMINAL STRIP
