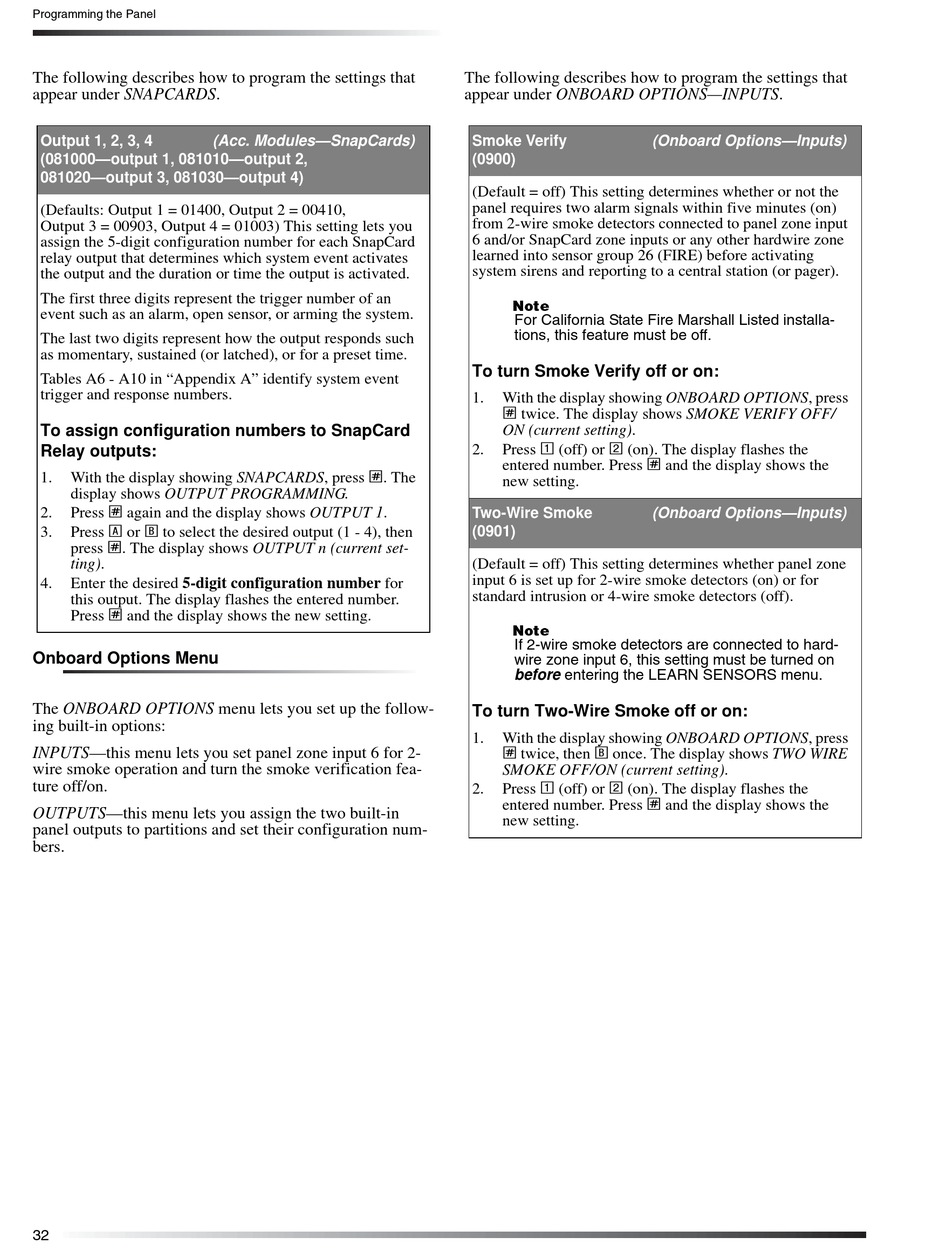

Programming the Panel
The following describes how to program the settings that
appear under SNAPCARDS.
Output 1, 2, 3, 4
(081000—output 1, 081010—output 2,
081020—output 3, 081030—output 4)
(Defaults: Output 1 = 01400, Output 2 = 00410,
Output 3 = 00903, Output 4 = 01003) This setting lets you
assign the 5-digit configuration number for each SnapCard
relay output that determines which system event activates
the output and the duration or time the output is activated.
The first three digits represent the trigger number of an
event such as an alarm, open sensor, or arming the system.
The last two digits represent how the output responds such
as momentary, sustained (or latched), or for a preset time.
Tables A6 - A10 in "Appendix A" identify system event
trigger and response numbers.
To assign configuration numbers to SnapCard
Relay outputs:
1. With the display showing SNAPCARDS, press
display shows OUTPUT PROGRAMMING.
ƒ again and the display shows OUTPUT 1.
2. Press
A or B to select the desired output (1 - 4), then
3. Press
ƒ . The display shows OUTPUT n (current set-
press
ting).
4. Enter the desired 5-digit configuration number for
this output. The display flashes the entered number.
ƒ and the display shows the new setting.
Press
Onboard Options Menu
The ONBOARD OPTIONS menu lets you set up the follow-
ing built-in options:
INPUTS—this menu lets you set panel zone input 6 for 2-
wire smoke operation and turn the smoke verification fea-
ture off/on.
OUTPUTS—this menu lets you assign the two built-in
panel outputs to partitions and set their configuration num-
bers.
32
(Acc. Modules—SnapCards)
ƒ . The
The following describes how to program the settings that
appear under ONBOARD OPTIONS—INPUTS .
Smoke Verify
(0900)
(Default = off) This setting determines whether or not the
panel requires two alarm signals within five minutes (on)
from 2-wire smoke detectors connected to panel zone input
6 and/or SnapCard zone inputs or any other hardwire zone
learned into sensor group 26 (FIRE) before activating
system sirens and reporting to a central station (or pager).
œÌi
For California State Fire Marshall Listed installa-
tions, this feature must be off.
To turn Smoke Verify off or on:
1. With the display showing ONBOARD OPTIONS, press
ƒ twice. The display shows SMOKE VERIFY OFF/
ON (current setting).
1 (off) or 2 (on). The display flashes the
2. Press
entered number. Press
new setting.
Two-Wire Smoke
(0901)
(Default = off) This setting determines whether panel zone
input 6 is set up for 2-wire smoke detectors (on) or for
standard intrusion or 4-wire smoke detectors (off).
œÌi
If 2-wire smoke detectors are connected to hard-
wire zone input 6, this setting must be turned on
before entering the LEARN SENSORS menu.
To turn Two-Wire Smoke off or on:
1. With the display showing ONBOARD OPTIONS, press
ƒ twice, then B once. The display shows TWO WIRE
SMOKE OFF/ON (current setting).
1 (off) or 2 (on). The display flashes the
2. Press
entered number. Press
new setting.
(Onboard Options—Inputs)
ƒ and the display shows the
(Onboard Options—Inputs)
ƒ and the display shows the
