Installing the System
OUT2/ ZONE
+12V
OC 1
P A N E L
4
8 9
T E R M I N A L S
2k Ohm
RESISTOR
49-454
(LOCATE AT
PANEL)
C C
O O N N
. . . . . . . .
+ - -
+
M M O O
C C
O O N N
. . . . . . . .
+ - -
+
M M O O
2k Ohm
EOL RESISTOR
49-454
(LOCATE AT LAST
DETECTOR)

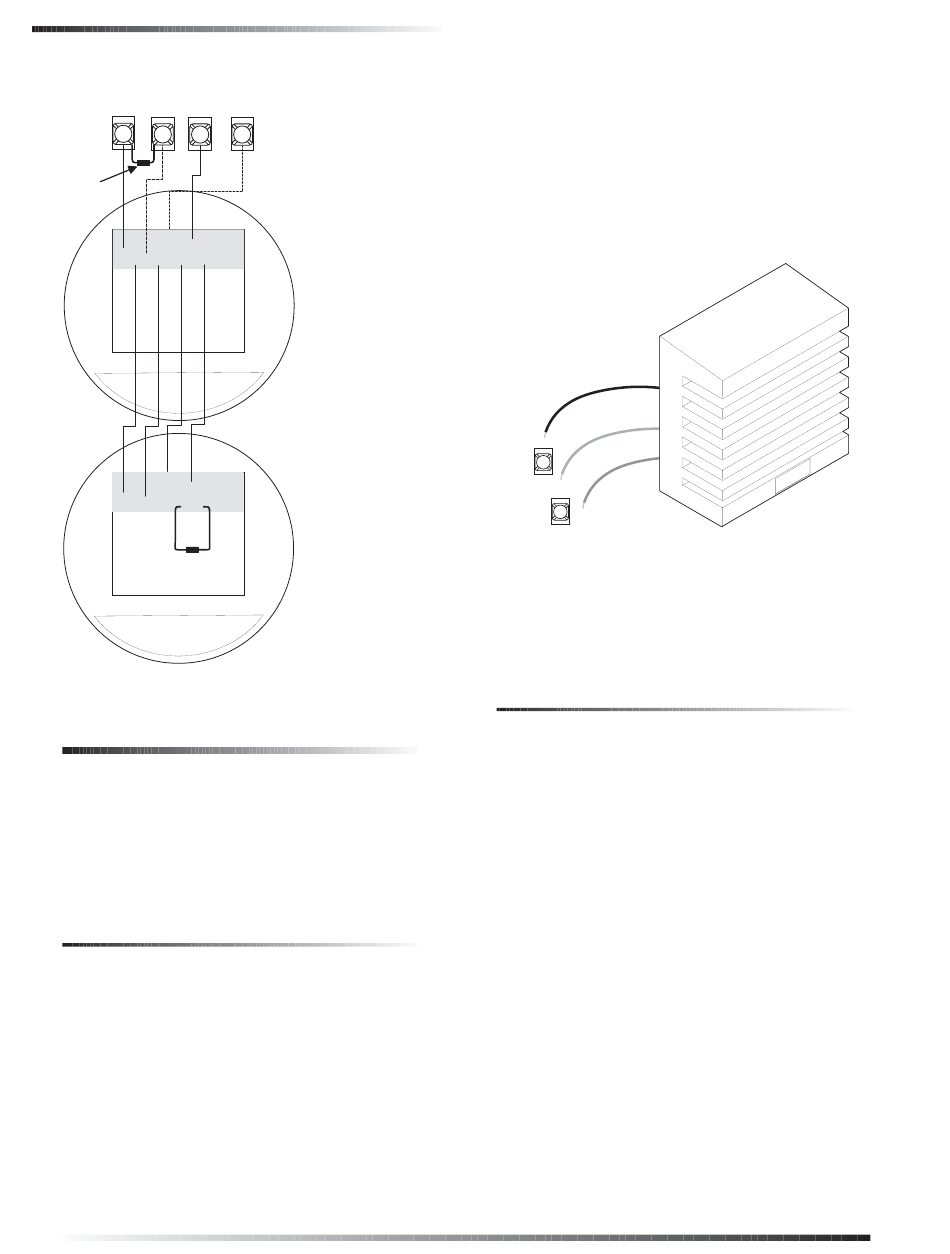

Figure 13. Connecting 4-Wire Smoke Detectors

Connecting Sirens

Two onboard programmable outputs allow for siren connec-
tions when using the default setting of each output. For
more information on output configuration numbers, see the
section "Programming the Panel" and the tables in Appen-
dix A.
The following describes siren connections using the default
settings of each onboard output.
15-Watt, Dual Tone Siren (13-469)
Panel terminal 7 (OUT1/+12V) is a +12V programmable
output. At the default configuration setting (00410), this
output can provide up to 1.25 A during an alarm (650 mA
for UL Listed systems) if the backup battery is connected.
œÌi
If the backup battery is not connected, or if the config-
uration of panel terminal 7 is programmed to anything
other than the default (00410), then the combined cur-
rents of terminal 7 (OUT 1/+12) and terminal 4 (+12V)
must not exceed 750 mA.
8
ZCOM
PANEL TERMINAL 8 (OUT2/OC)
10
MUST BE SET TO CONFIGURATION
NUMBER 01500 FOR CONNECTED
SMOKE DETECTORS TO RESET
AFTER CANCELING A FIRE ALARM.
M O D E L
4 4 9 A T
M O D E L
4 4 9 A T
8 6 4 2 G 1 1 A . D S F
The default configuration setting (00410) activates the out-
put during any audible alarm, allowing for a siren connec-
tion without changing the output configuration number.
For UL Listed installations, you can connect only one 15-
Watt, Dual-Tone Siren to panel terminals 3 and 7 as shown
in Figure 14. For all other installations, connect up to two
sirens. This siren does not require an end-of-line resistor.
œÌi
For UL Listed systems, SIREN VERIFY must be on.
B L A C K ( C O M M O N )
Y E L L O W ( S T E A D Y )
GND
3
R E D
C O N C O R D
( N O T U S E D )
E X P R E S S
OUT1/
P A N E L +12V
T E R M I N A L S
7
Figure 14. Connecting 15-Watt, Dual-Tone Siren 13-469
œÌi
Some versions of this siren may have two wires of
each color. Only one black wire and one yellow wire
are needed for panel connections.
Hardwire Siren (13-046)
Connect one or two sirens to the panel with supervision as
shown in Figure 15. If SIREN VERIFY is turned off (see
the section "Programming the Panel"), the 2k end-of-line
resistor is not required.
œÌi
For UL Listed systems, SIREN VERIFY must be on
and the 2k end-of-line resistor installed.
1055G26A.DSF
