Control Module - Ecom J2KNpro Tech Operating Instructions Manual

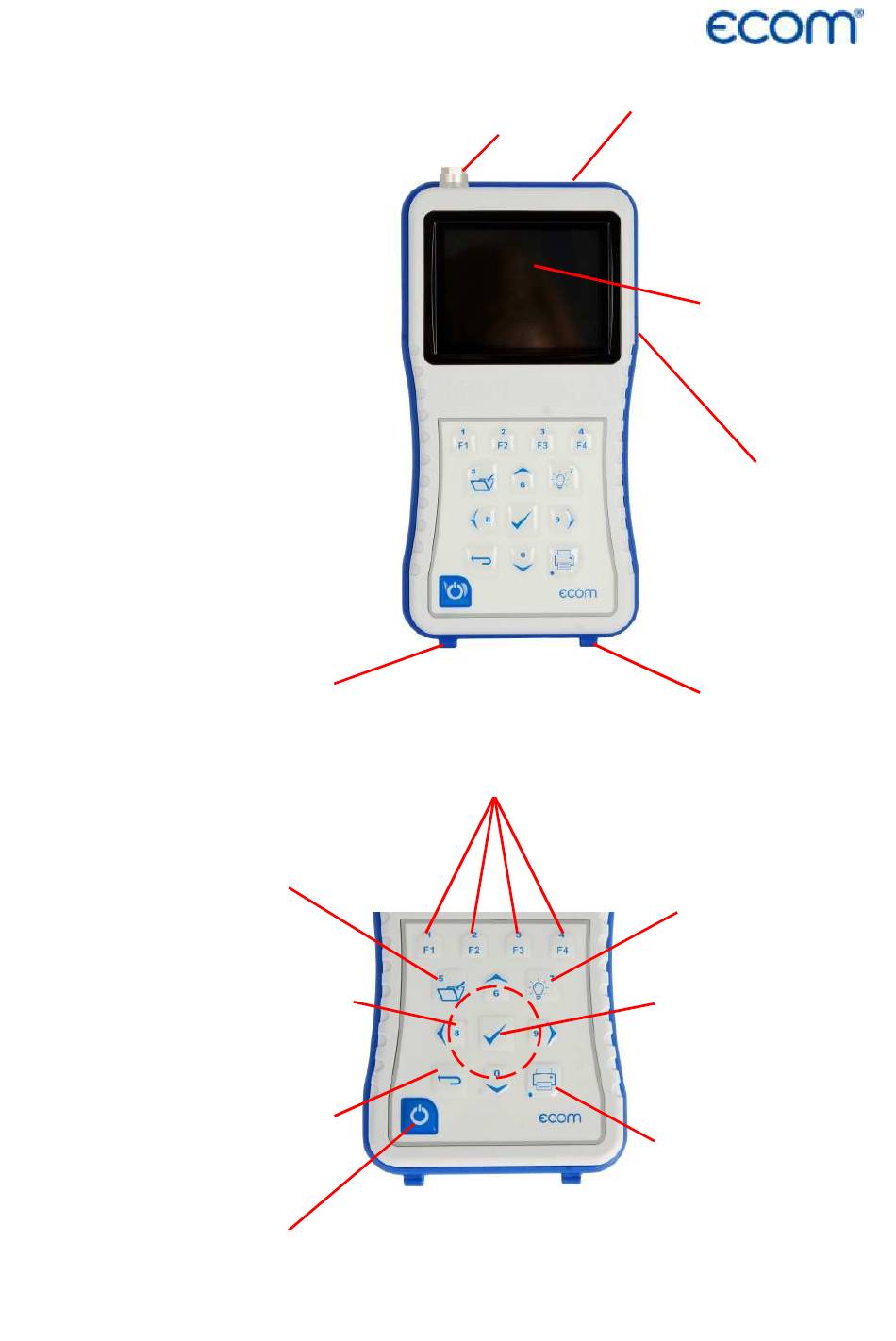

1.2. Control module

Socket for connection
cable by wire
transfer basic
Measurement
values recording
Cursor keys
(Up/Down/Right/
Left/Scroll)
ESC key
(quit/
escape menu)
Switch ON/OFF
control module
pro
ecom-
J2KN
Function keys
(function shown on display)
In the input mode,
the keys are used
for numerical in-
TECH
Connection air
temperature
puts
Slot for Multi-
Media-Card
Graphics
Display
Connection
USB
Connection
keyboard
Display back-
lit ON/OFF
OK key
(confirm
selection)
Print key
(access to print-
ing menu)
Page 7
