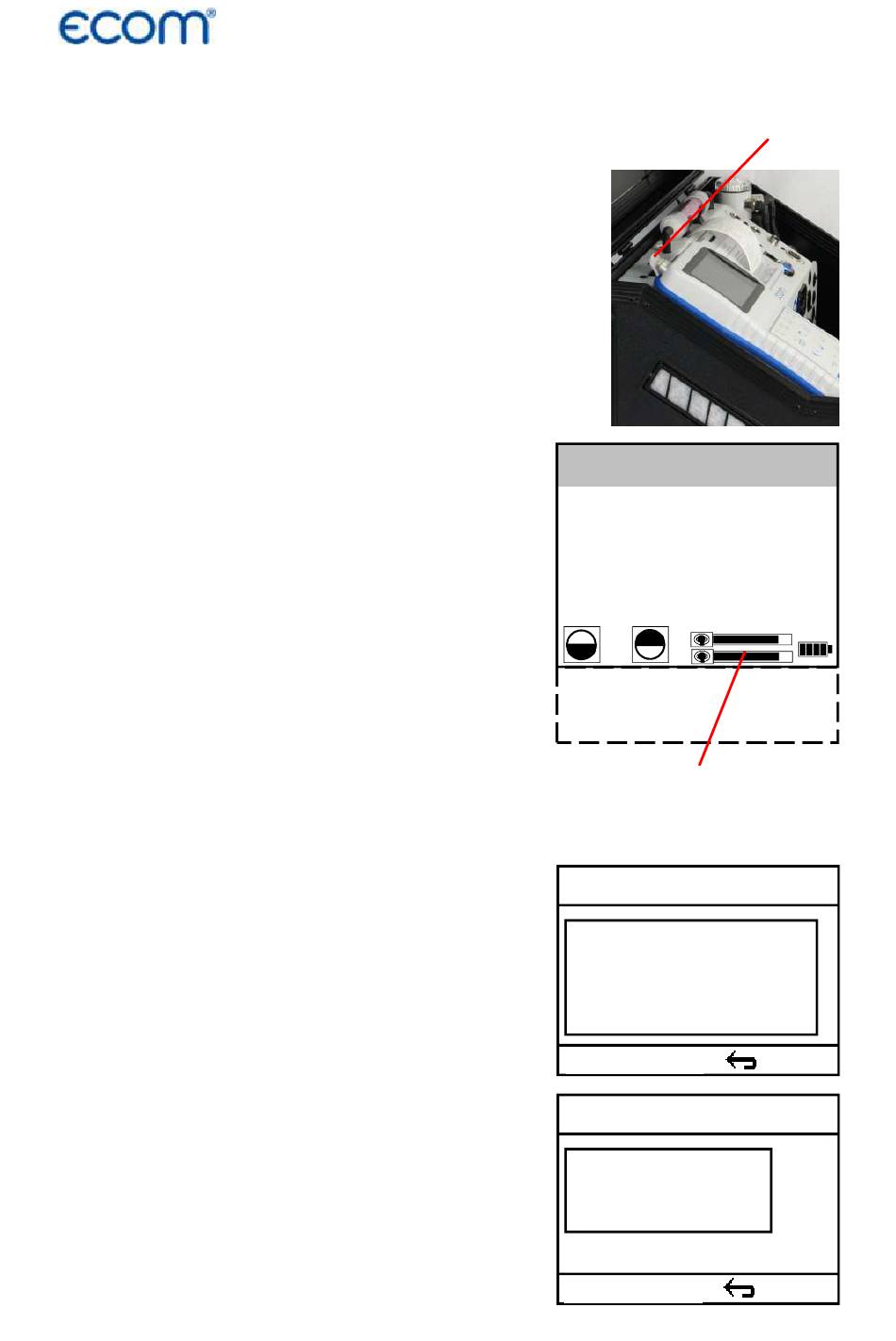

7. Radio communication basic / control module
Thanks to the
module the basic module can be
monitored wireless. The basic module
can be unlocked as follows:
1. Press to unlock.
2. Tip control module forwards
3. Release control module from basic
module
The information exchange between
control and basic module is performed
via radio transmission (868 MHz) with
coverage of approx. 70 m (by free
sight). The
transmission is documented by a bar
indication in the main menu of the
instrument (long bar = good radio
communication).
By interruption
communication, an error message is
displayed. By persisting disturbances of
the radio communication,
(option) can take over the transfer
(connection betwen socket DATA on
control unit and socket DATA on basic
module).
If the basic module is switched off and
the control module not, so the display
will show an error message inviting to
fix the control module in its docking
station (helps also not to forget the
control module). Observe this order, quit
with <ESC> and finally switch off the
control module.
Page 14
detachable
quality of the
of the
control
Gas analysis
Pressure
Soot..Oil trace
radio
Data processing
Adjustments
Control
Diagnostics
radio
a cable
Radio connection
interrupted!
Use cable or
switch on basic
module!
Quit with:
Place J2KN in
basic mod.!
Quit with:
Unlocking
Bar indication
radio quality
