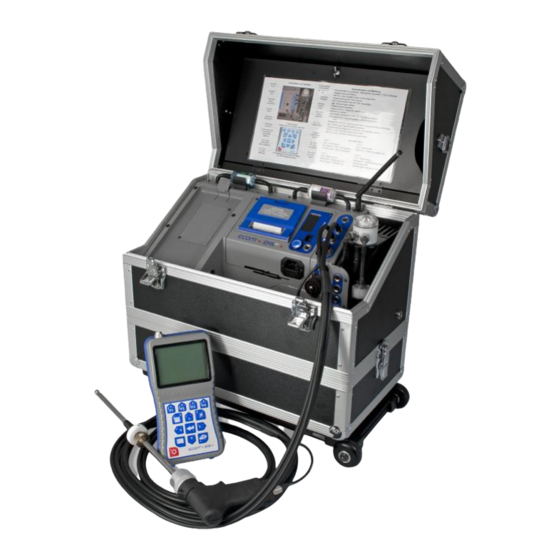

Ecom J2KN Pro Quick Manual
Hide thumbs
Also See for J2KN Pro:
- Operating instructions manual (58 pages) ,
- Operation manual (44 pages) ,
- Quick manual (5 pages)
Related Manuals for Ecom J2KN Pro
Summary of Contents for Ecom J2KN Pro

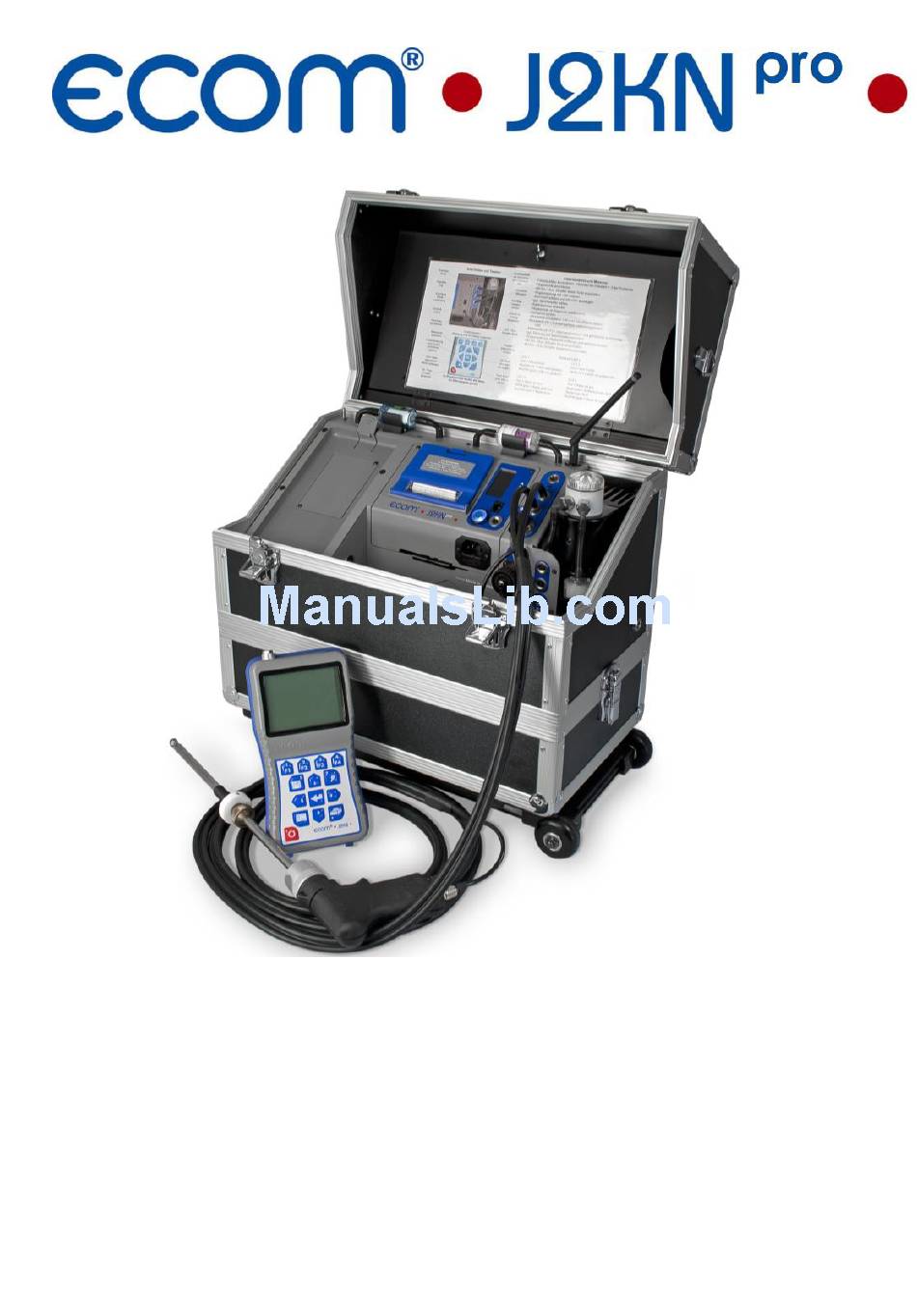

- Page 1 Quick Guide version 3.6.2 ECOM America Ltd, 1628 Oakbrook Drive, Gainesville, GA 30507 Toll free (877) 326-6411 Phone (770) 532-3280 Fax (770) 532-3620 w ww . ec o mus a . c om...
- Page 2 Thank you for choosing ECOM! Please follow the instructions in this quick guide to get acquainted with your J2KN Pro analyzer. Page 2...
-
Page 3: Table Of Contents
Table of Contents Page(s) NSTRUMENT ESIGN J2KN Pro Base Unit……………………………………………………..4 Remote Display Unit ……………………………………………………5 Info Display………………………………………………………………..6 Filters……………….……………………………………………………….6 & R MISSIONS EASUREMENT ECORDING J2KN Pro Start-up…………………………………………………..…..7 Gas Analysis ...……………………………………..………………8 ………. Capturing Data on Memory Card……………………………………9 Software Communication...........10 Accessories................11 ONSUMABLES PART PART #... -
Page 4: Instrument Design
Instrument Design J2KN Pro Base Unit Draft/Pressure connection Main gas connection Info display Thermocouple Draft/Pressure connection connection Data cable Ambient air connection (used by ECOM temperature personnel only) sensor Analogue ON / OFF inputs button (optional) Heated line power Pitot tube... -
Page 5: Remote Display Unit
J2KN Pro Remote Display Unit Memory card slot WiFi antenna LCD display (If your antenna has a screen pink band, it is Bluetooth) Air temperature connection connection (not an antenna) Function Keys (See 8.1 Gas Analysis) Capture data Display Backlight... -
Page 6: Info Display
Info display ltr / 2.24 Main pump is running Gas flow (liters per minute) Fresh air valve is open CO purging is running Gas cooler ready for use Radio mode Heated line ready for use Probe heating is switched on Battery operation Heated head ready for use Calibration phase... -
Page 7: J2Kn Pro Start-Up
J2KN Pro Start-up Make sure the probe is in fresh air when you turn on the J2KN Pro. Gas analysis Radio Link Averaging Display contrast: Quality Indicator Lighten F1 Draft/Pressure Darken F2 Soot Test Automatic meas. Battery Charging Adjustments Indicator... -
Page 8: Gas Analysis
Gas Analysis If you change testing environments, let the analyzer acclimate to the new ambient envi- ronment, then power down and restart. After the 1-minute auto-zeroing phase, the instrument switches to Gas Analysis mode. The measurement values can be viewed on 3 display pages: a zoomed in 4-line display and 2 full 9-line displays. -
Page 9: Capturing Data On Memory Card
Datalogger -> “Finish dl? Are you sure?” -> Press F1. Each data file will be saved separately as J2KDL-00, J2KDL-01, etc. Open in Microsoft Excel. You can also import the data from the SD card into ECOM’s free DAS 5 software to create formal reports. -
Page 10: Software Communication
Software Communication If you need help with installation or operation of your DAS or e-Comply software, please consult the User Manual for your software product. If you are having trouble communicating from the analyzer to a computer, please check the following: Adjustments >... -
Page 11: Accessories
Accessories e-Comply Testing Software Calibration Gas Kits Part no. 9038001H Part no. available upon request (Records mass emissions in g/bhp-hr, lbs/hr, & tons/year) Probe Shield 15ft/30ft Heated Sample Line Part no. 3025006G Part no. 7952501H (Custom lengths available (Recommended for high temp from 0 to 100ft) applications to protect grip) Tail Pipe Probe Assembly... - Page 12 UGGED ELIABLE CCURATE ECOM A MERICA 1628 O AKBROOK RIVE , GA 30507 AINESVILLE (877) 326-6411 OLL FREE (770) 532-3280 HONE (770) 532-3620 ecom.info@ecomusa.com w w w . e co m us a . co m Page 12...
