4. Radio communication basic / control module

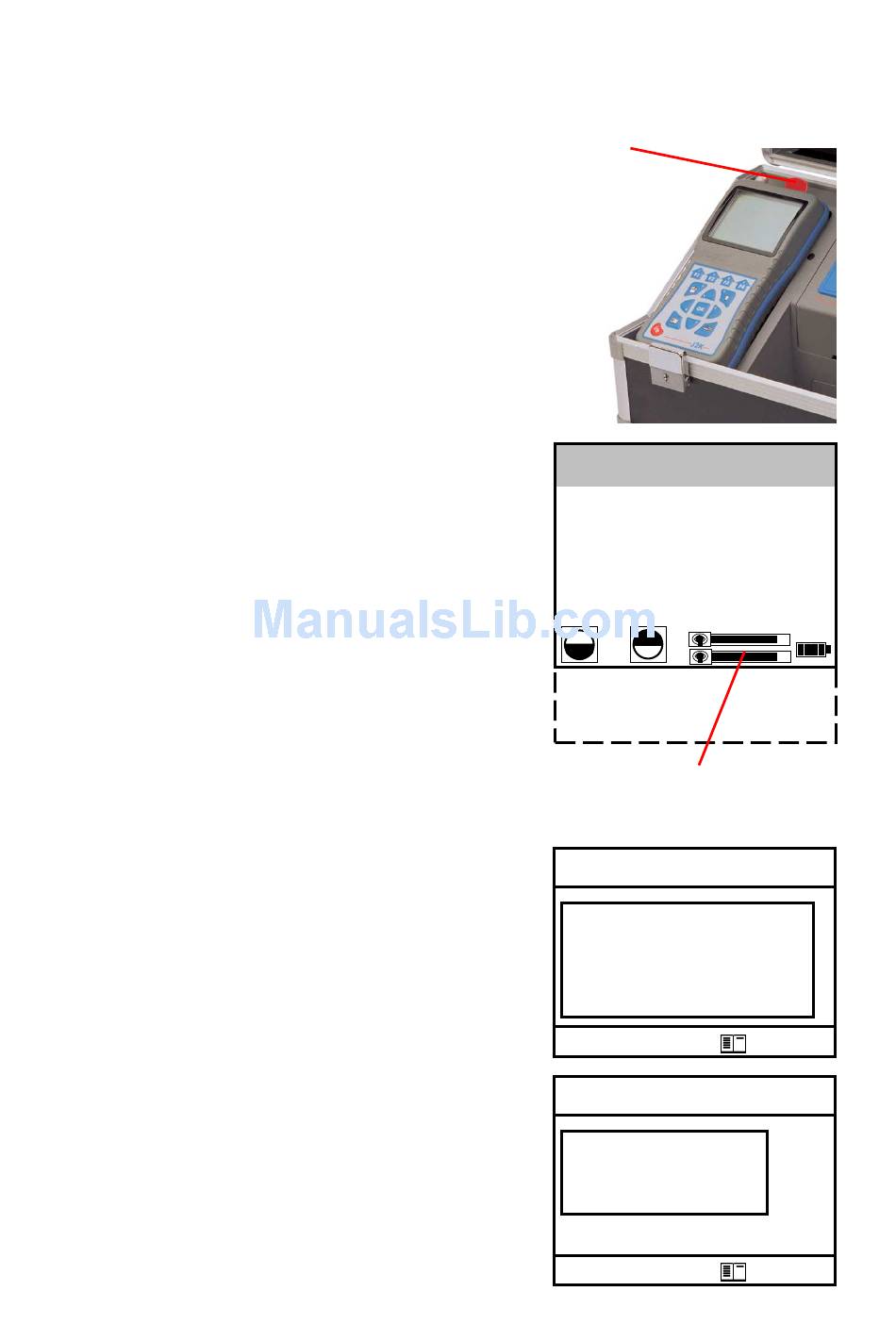

Thanks to the detachable control mod-
ule the basic module can be monitored
wireless. The basic module can be un-
locked as follows:
1. Press to unlock.
2. Tip control module forwards
3. Release control module from basic
module
The information exchange between
control and basic module is performed
via radio transmission (868 MHz) with a
coverage of approx. 50 m (by free
sight). The quality of the radio transmis-
sion is documented by a bar indication
in the main menu of the instrument
(long bar = good radio communication).
By interruption
communication, an error message is
displayed. By persisting disturbances of
the radio communication,
(option) can take over the transfer
(connection betwen socket DATA on
control unit and socket DATA on basic
module).
If the basic module is switched off and
the control module not, so the display
will show an error message inviting to
fix the control module in its docking
station (helps also not to forget the con-
trol module). Observe this order, quit
with <ESC> and finally switch off the
control module.
pro
ecom-J2KN
of the radio
a cable
Unlocking
Gas analysis
Pressure
Soot..Oil trace
Data processing
Adjustments
Control
Diagnostics
Bar indication
radio quality
-- ECOM-J2KN --
Radio connection
interrupted!
Use cable or
switch on basic
module!
Quit with:
-- ECOM-J2KN --
Place J2KN in
basic mod.!
Quit with:
