Figure 10-2 Voltmeter Connections To - DragonWave Horizon COMPACT Plus Product Manual
Compact out-door-unit
Hide thumbs
Also See for Horizon COMPACT Plus:
- Quick reference manual (2 pages) ,
- Product manual (200 pages)
Table of Contents
Advertisement
BNC to banana
jacks cables are
available from
DragonWave

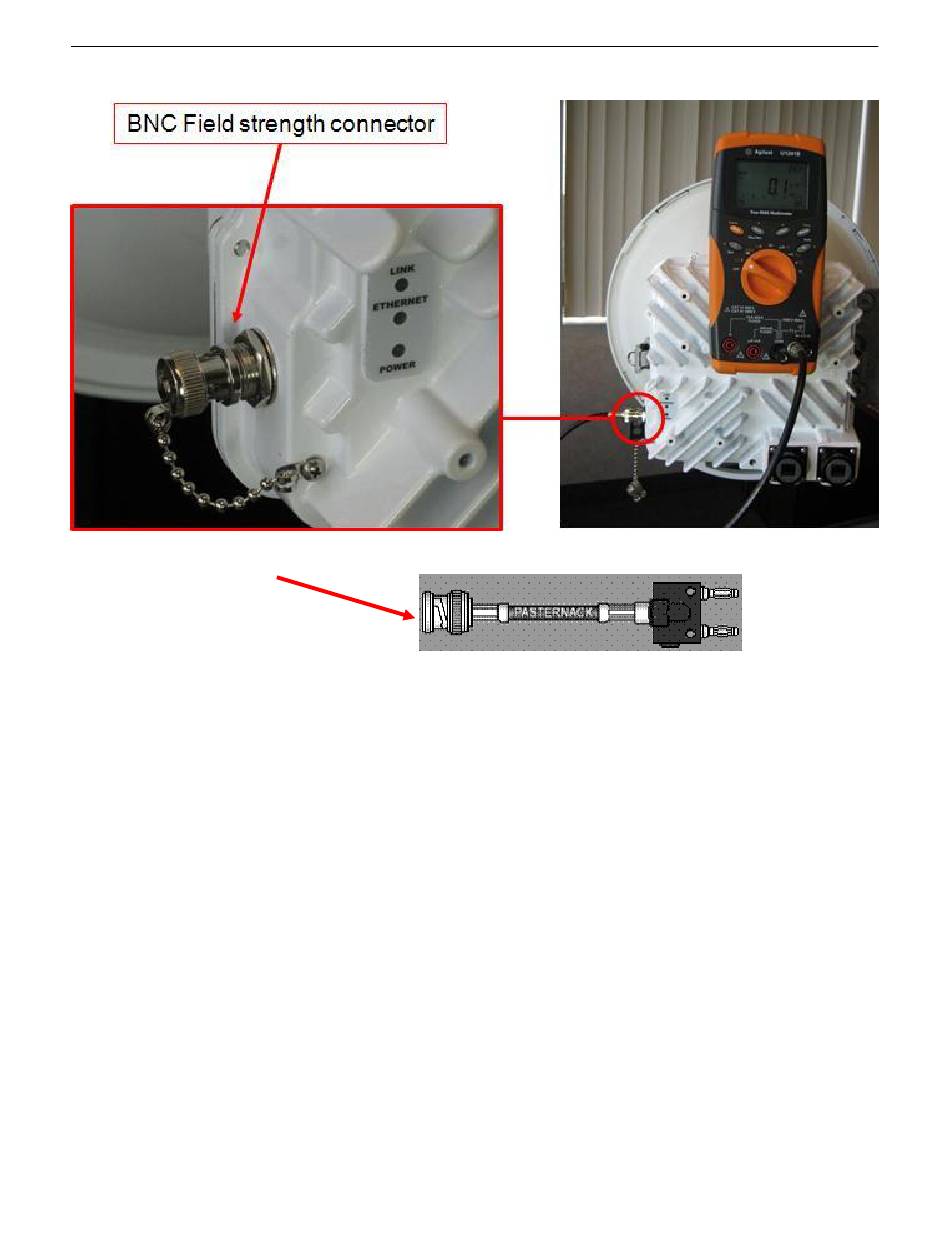

Figure 10-2 Voltmeter connections to BNC field strength monitoring connector
2. Alternatively, readings can be made remotely via the Web interface, using the Tools – Link
Alignment menu option. An operator would then have to continually relay RSL readings, via a
radio or cell telephone, to the rigger adjusting the positioning of the system.
Horizon Compact Plus Release 1.0.1
Preparing for Alignment
Wireless Ethernet Product User Manual – Volume 1
