3.0 Physical Description

Horizon Compact Plus is an integrated Ethernet modem and microwave radio transceiver, housed in a
rugged weatherproof housing. It is provided with two weatherproof port connectors, Port 1 and Port 2.
Port 1 can be configured as a single copper 10/100/1000 Base-t data port (GigE), or as two 10/100 Base-
t data ports (port 1 and port 4). Port 1 may also be supplied with an optional optical interface. Port 2 can
also be configured as a single copper 10/100/1000 Base-t data port (GigE), or as two 10/100 Base-t data
ports (port 2 and port 3). All ports can be configured to carry either in-band or out-of-band management.
A BNC style connector, with protective cap, is provided for measuring field strength during the antenna
alignment process. The output voltage is linear, giving 1 mV per dB values e.g. -30 mV = -30 dB. It is also
used for providing a radio muting signal in system redundancy applications (not supported in this
release).
A sun shield is available to increase the high temperature tolerance of the unit..

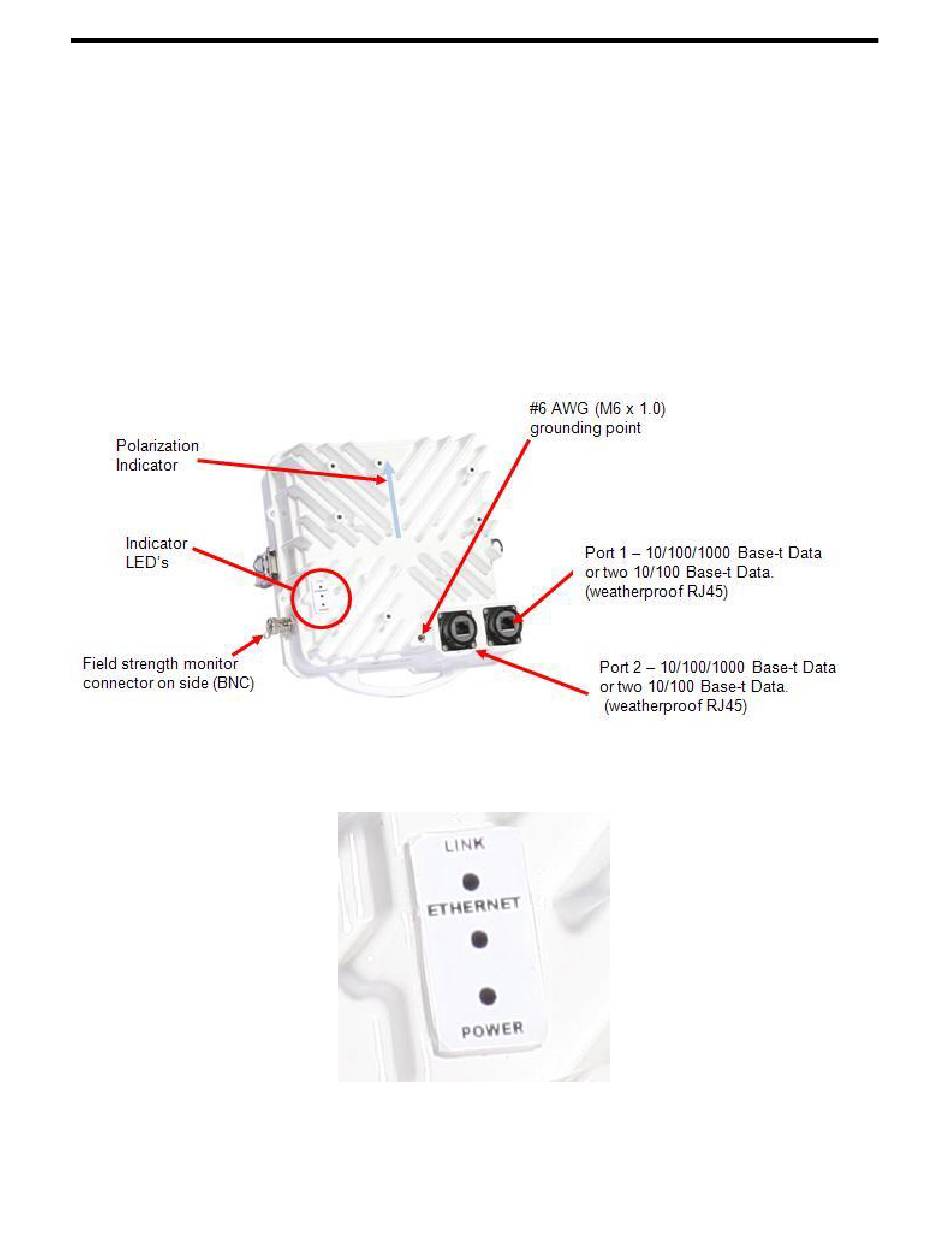

Figure 3-1 Horizon Compact Plus - Copper Interface Variant
Figure 3-2 Horizon Compact Plus LED indicators
