Mounting systems for the indoor units include a 19" rack mounting adapter, which accommodates up to
two units within a 1U rack space, and wall mount brackets, allowing a single unit to be wall, or shelf,
mounted as required (screw slots will accommodate 6mm (1/4") diameter screws on 7.2" centres,
horizontally).

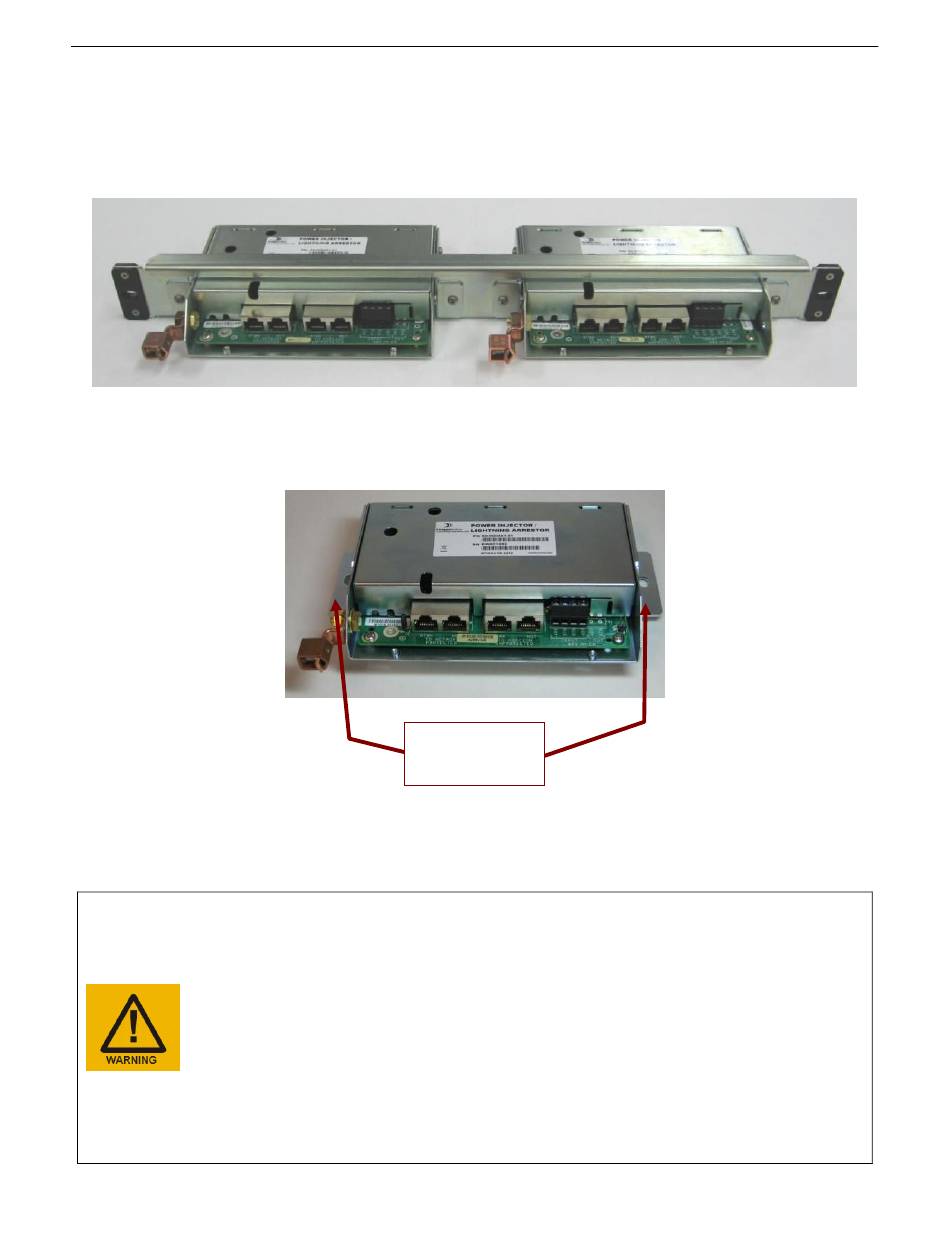

Figure 4-3 Two Indoor Units in Rack Mount Adapter
Figure 4-4 Indoor Unit with Wall Mount Brackets
Rack/cabinet in which Indoor units are installed must only be used for the
purposes of housing lightning suppression equipment.
Rack/cabinet must be equipped, grounded and bonded for lightning suppression
purposes.
Rack/cabinet must meet all local electrical and safety codes
Rack/cabinet must be certified by a qualified safety/lightning engineer.
DO NOT connect the grounding lug to AC power supply wiring ground!
DO NOT mix AC power supply option with site-supplied 48 VDC!
DO NOT connect the network to the RJ45 connectors marked
"TO HORIZON UNPROTECTED". Damage to switches or routers may result
Horizon Compact Plus Release 1.0.1
Wall mounting
brackets are
removable
Wireless Ethernet Product User Manual – Volume 1
Installation Requirements
17
