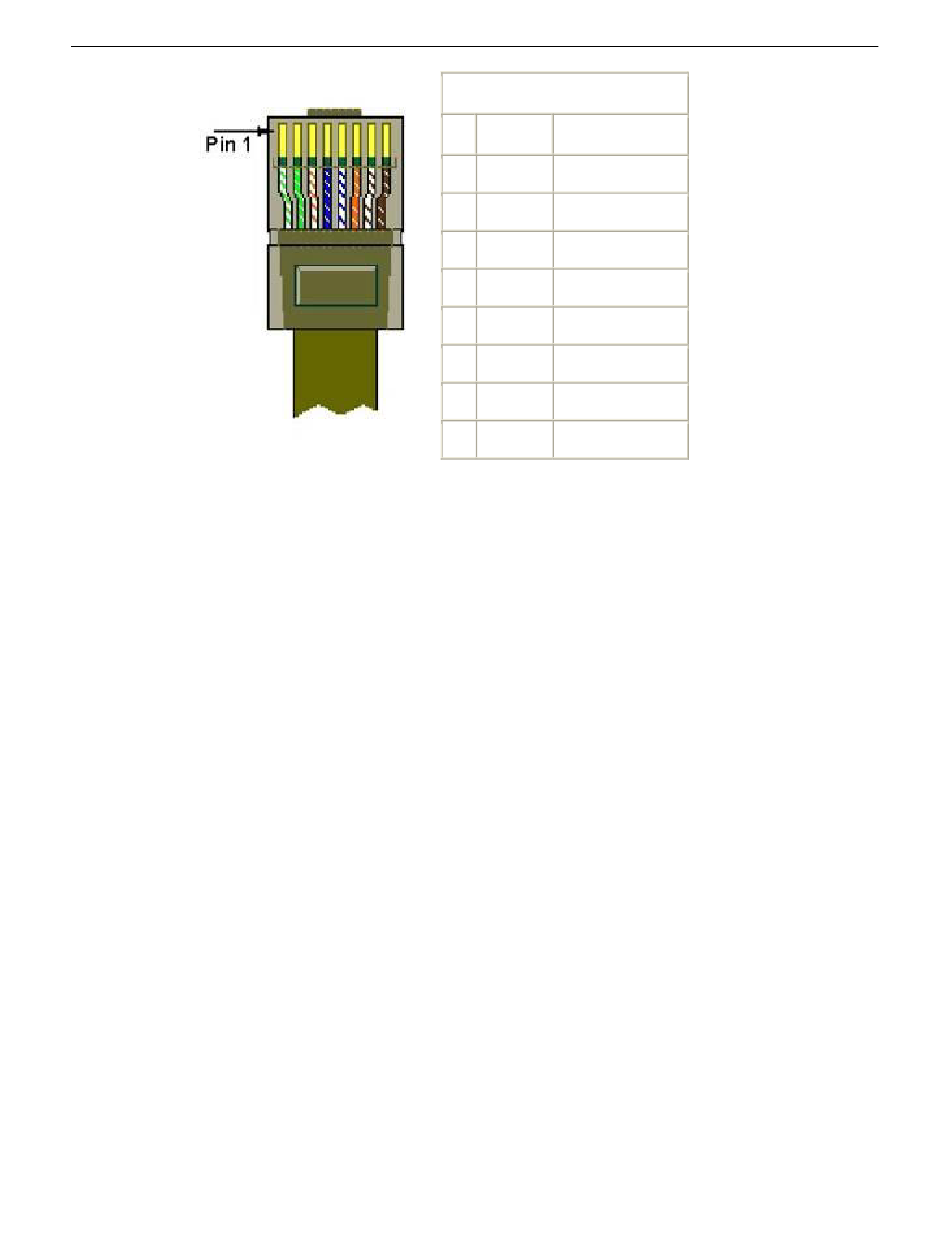

Figure 5-6 RJ45 connector pinout – Port 2 management
Horizon Compact Plus Release 1.0.1
1000BaseTx – RJ45 pinout
Pin Signal Color
1
TP0+
White/Green
2
TP0-
Green
3
TP1+
White/Orange
4
TP2+
Blue
5
TP2-
White/ Blue
6
TP1-
Orange
7
TP3+
White/Brown
8
TP3-
Brown
Wireless Ethernet Product User Manual – Volume 1
Powering the Horizon Compact Plus
31
