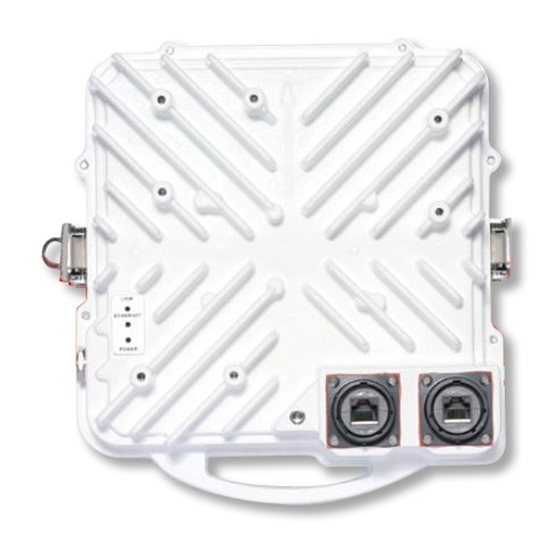

Horizon COMPACT Plus
TM
Wireless Ethernet
Release 1.0.1
Product Manual - Volume 2
Advanced Configuration Features
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon COMPACT Plus and is the answer not in the manual?

Questions and answers

Related Manuals for DragonWave Horizon COMPACT Plus

Summary of Contents for DragonWave Horizon COMPACT Plus

  • Page 1 Horizon COMPACT Plus Wireless Ethernet Release 1.0.1 Product Manual - Volume 2 Advanced Configuration Features Version 1.1...
  • Page 3 NOTICE This document contains confidential information, which is proprietary to DragonWave. No part of its contents can be used, copied, disclosed, or conveyed to any party in any manner whatsoever without prior written permission from DragonWave Inc. Copyright © 2000 - 2012 DragonWave Inc.

  • Page 4: Table Of Contents

    8.5.4 W ................36 EIGHTED UEUING XPEDITE ......................44 APPING PAUSE FRAMES ..................48 10.0 BANDWIDTH MANAGEMENT ..............50 ..10.1 ..................50 AXIMUM HROUGHPUT PEED Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 5 ONNECTING TO THE NTERFACE 17.5.3 E ......................107 XITING THE PPLICATION 17.5.4 L ............................107 OGIN 17.5.5 H .......................... 108 CREEN 17.5.6 G ....................... 109 RAPHICS AND ABLE Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 6 APPENDIX A – DETAILED CLI COMMAND LIST ..........144 APPENDIX B – SYSTEM CONFIGURATION OID INDICES ........165 APPENDIX C – SITE SURVEY INFORMATION ............189 APPENDIX E - 802.1P PRIORITY TAGGING OVERVIEW ........191 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 7 Table 9-1 System Mode and Modulation Scheme .................. 50 Table 14-1 Time Sources .......................... 90 Table 15-1 Modulation Up/Downshift SNR Thresholds ................. 94 Table 17-1 Performance Log Durations ....................121 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 9: User Manual Structure

    Volume 1. Volume 3 – contains a complete list of the frequency tables associated with the radio bands supported by the Horizon Compact Plus Volume 4 - Contains configuration details relating to industry standard networking features.

  • Page 10: Wireless Ethernet Product User Manual – Volume

    DragonWave Inc. This page left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 11: Advanced Configuration Features

    2.0 Advanced Configuration Features Volume 1 describes the configuration of the basic features that allow the Horizon Compact Plus to provide a wireless Ethernet link, with a throughput of up to 400 Mbps. A number of advanced configuration features provide enhanced throughput, system access and management security, link protection, quality of service and alarm management.
  • Page 12 DragonWave Inc. This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 13: Upgrade/Downgrade Licensed Features

    To enable/disable any of these features there are CLI commands that provide information about your system that DragonWave Inc. requires before it can provide you with the necessary license upgrade key, or a refund for a downgraded feature. The first three items in the above list are called the Feature Group and are indexed 1, 2 and 3.
  • Page 14 Unit Serial Number :C1N14AED0013 MAC Address :00-07-58-03-14-AC Note that this information needs to be sent to DragonWave Inc. before an upgrade key can be issued. Fees apply to upgrade licenses. Once you have paid for and received the required upgrade key, use this Upgrade an indexed feature command to upgrade your system.
  • Page 15 Required Action Steps Downgrade an indexed feature Use this command to downgrade, or unlicense, a feature. Note, once downgraded you will need another license key from DragonWave in order to re-license a group. Sequence: downgrade feature group <group index> Example:...

  • Page 16: Pgrade System License Speed

    DragonWave Inc. Upgrade System License Speed Upgrading the system licensed speed requires an upgrade license key obtainable from DragonWave. Upgrading the licensed speed does not cause you to lose the ability to reduce the speed and then return to the new licensed speed at a later time.
  • Page 17 :00-07-58-03-14-AC Unit serial number :C1N14AED0013 This information must be sent to DragonWave along with the request for a speed upgrade before a license upgrade key can be issued. Upgrade system licensed speed Upgrades the system to operate at a higher speed. A license upgrade key is required for this command.

  • Page 18: Owngrade System License Speed

    Downgrade System License Speed Downgrading the system license speed to a value lower than previously purchased is supported. Information presented by the system, when downgraded, needs to be sent to DragonWave in order to confirm the status of your license.
  • Page 19 Licensed speed count This command returns the number of times that the licensed speed has been changed. This value is required by DragonWave, in addition to the information returned in the previous step, in order to determine the status of your license.
  • Page 20 This command returns the licensed speed downgrade information that information was presented during the downgrade process. This is the same information, along with the licensed speed count, that DragonWave needs in order to verify the status of your license. Sequence :...

  • Page 21: Configuring Ethernet Ports 1 And 2

       Maximum Frame Size       Admin State   Port State All ports can be configured for data or management. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 22 Speed :auto Auto Negotiation Max. Frame Size :1600 Speed :auto Payload State :disable Max. Frame Size :1600 Port State :off Payload State :enable Admin State Admin State Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 23 Speed :auto Auto Negotiation Max. Frame Size :1600 Speed :auto Payload State :disable Max. Frame Size :1600 Port State :off Payload State :enable Admin State Admin State Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 24 Save changes to Saves the MIB to RAM. Perform this command to save setting changes to non-volatile memory. Sequence: save mib press Enter The system responds: MIB saved successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 25: Synchronous Ethernet (Synce)

    In order to make use of syncE, any synchronous third party product will need to take its timing information from an Ethernet port. Note that Horizon Compact Plus does not have a BITS or other direct clock output. Master/Slave In a Gigabit Ethernet connection, one end device always becomes the Ethernet clock master, and the other becomes the Ethernet clock slave.

  • Page 26: Configuring Synce

    Example: set synce member port p4,wp1 press Enter (note the comma) The system responds: synce members:p4,wp1,freerun Note: valid synce member port includes p1,p2,p3,p4,wp1; freerun is always a synce member. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 27 The system reponds: Synce mode : off Primary clock source : wp1 Secondary clock source : p4 Synce members : p4,wp1,freerun Revertive mode : off Wander filter option :option2 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 28 The system responds (example set to auto): Synce mode : auto Primary clock source :wp1 Secondary clock source :p4 Synce members :p4,wp1,freerun Revertive mode Wander filter option :option2 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 29 Synchronous Ethernet is put into holdver for 60 sec. get synce status press Enter The system responds: mode: auto clock source: wp1 acquisition status: holdover forced holdover: on remaining time in forced holdover: 52 sec Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 30: Radius Server User Authentication

    6.0 RADIUS Server User Authentication The DragonWave Remote Authentication Dial In User Service (RADIUS) server option enables users to be centrally authenticated before being allowed access to a modem. This adds another layer of security by removing user access control away from individual modems and moving it to a central server.
  • Page 31 Sequence: get radius servers press Enter The system responds: index active_host active_key cfgd_host cfgd_key ===== =============== =============== =============== 192.168.1.48 testing123 192.168.1.48 testing123 192.168.10.51 password4 192.168.10.51 password4 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 32 Enter The system responds: Radius authentication for Super User is [strict/not strict] (not strict means SU flash password still works under Radius) Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 33: Onfiguring The Radius Server

    RADIUS Server Authentication Configuring the RADIUS Server To support the DragonWave RADIUS application, each RADIUS server on the network must be provided with a Vendor Specific Attribute (VSA) file. The VSA file contains the definition of the DragonWave user privilege level (Admin, NOC, Super-User) allocated to users. User definitions can use the DragonWave-Privilege-Level attribute to assign access privileges.

  • Page 34: Management Vlan Tagging

    7.0 Management VLAN Tagging Note: The configuration of Horizon Compact Plus VLAN tagging is only necessary if you wish to restrict Horizon Compact Plus management communications to a specific management VLAN. The Horizon Compact Plus system will pass user VLAN traffic transparently, independent of the Horizon Compact Plus Management VLAN settings.

  • Page 35: Orizon Compact Plus Vlan Settings

    The following tables describe the behavior of Horizon Compact Plus management packets with respect to VLAN settings on the Horizon Compact Plus system. Table 7-1 VLAN tagging is OFF In this configuration VLAN tagging is OFF, therefore no Horizon Compact Plus packets contain VLAN tags. Condition Horizon Compact Plus Outgoing Packet Horizon Compact Plus incoming packet does NOT Horizon Compact Plus responds to the packet.
  • Page 36 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 37 The system will proceed to reset. You will have to log on again to regain access. This concludes the steps to enable VLAN tagging for the Horizon Compact Plus system using the CLI manager. Wireless Ethernet Product User Manual – Volume 2...

  • Page 38: Quality Of Service (Qos)

    VoIP packets will be allocated a higher CoS level than that of the data traffic. Operation with QoS Disabled If QoS is disabled in the Horizon Compact Plus system, all incoming user data packets are treated equally and are forwarded on a first-come first-served basis. The system operates on a first-in-first-out (FIFO) basis.

  • Page 39: Operation With Qos Enabled

    Operation with QoS Enabled In Horizon Compact Plus, when QoS is enabled, a configurable packet filter directs user data packets to any one of eight QoS queues based on the CoS (priority) levels assigned to each packet. The eight QoS queues are labeled Q1 to Q8.

  • Page 40: Committed Information Rate (Cir)

    8.4.4 Committed Burst Size (CBS) Since IP traffic is “bursty” by nature, the Horizon Compact Plus provides a feature, called QoS queue Committed Burst Size (CBS), to handle Ethernet bursts. The Horizon Compact Plus system contains a data buffer that is used to accommodate bursts of traffic in excess of the user allocated amount as specified through the CIR setting for each queue.

  • Page 41: Cut Through

    8.5.2 Strict Priority Queuing If the Strict Priority Queuing policy is enabled in the Horizon Compact Plus system, the scheduling mechanism can be described as follows: 1. Select the highest priority queue (Q8 to Q1) which has a frame in it, and hasn’t used up its CIR budget 2.

  • Page 42: Weighted Fair Queuing (Wfq)

    CIR, it is serviced only when bandwidth is not consumed by the other queues which have not met their CIR. See Figure 8-2 for a graphical representation of the above statements. Figure 8-2 Weighted Fair Queuing Concept. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 43 The expedite queue, if enabled, will have the highest scheduling priority until the CIR is met. The peak information rate (PIR) of each queue is the same as the configured system current speed. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 44: Weighted Fair Queuing - Expedite Mode

    <=100. If this rule is not followed, the WFQ behavior of the queues cannot be guaranteed. Procedure 8-1 Enable Quality of Service Perform this procedure to enable Quality of Service for the Horizon Compact Plus. Note: To perform this procedure, you must have either SuperUser or NOC user rights. Required Action Steps login Log in as a SuperUser or NOC user.
  • Page 45 Enter The system responds (example): Cos type is : cos_vlan. Available cos types in the system are : cos_vlan cos_qinq_itag cos_qinq_otag cos_dscp cos_mplsexp. Default setting: cos_vlan Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 46 1 to 8, representing the Horizon Compact Plus QoS Queues allocated to each of the CoS levels (0-7) in order. Any values not explicitly assigned a queue by the user will not be affected by the command.
  • Page 47 Enable Through Enter queue as desired The system responds: Cut through state is set to : on|off Cut through queue is set to : q1 – q8 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 48 The total cannot exceed 100% , but can be less than 100% if desired. The system responds: (example shown) Expedite queue is :off. All queues bandwidth are guaranteed. Queue CIR(%) CIR(Mbps) Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 49 The system responds (using the above example and default values for queues Q5 to Q8): Queue Weight Default values: all queues are allocated a weight of 8 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 50 [on|off] [queue name (q8 – q5)] press Enter The system responds: Cut through state is set to : on|off Cut through queue is set to : q8 – q5 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 51 The system responds (default values shown): Queue Size (%) set cos queue cbs 6 6 10 10 15 15 16 22 press Enter The system responds: Queue Size (%) Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 52: Ser Flow Mapping

    Control frames ( in the range 01-80-c2-00-xx-xx) The flow can be mapped to a queue independently on each ethernet port. Note that user flow mapping is not applicable when QoS is disabled (off). Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 53 | queue 8 | queue 8 ------------------------------------------------------------------------------ flow 3 | enable | class 3 | queue 6 | queue 6 ------------------------------------------------------------------------------ The user flow mappings are not applicable when QoS is off. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 54 | queue 8 | queue 8 ------------------------------------------------------------------------------ flow 3 | enable | class 3 | queue 6 | queue 6 ------------------------------------------------------------------------------ The user flow mappings are not applicable when QoS is off. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 55 Quality of Service (QoS) This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 56: Pause Frames

    802.3 standard for the definition of ‘quanta’). When the Pause Frame feature is enabled, Horizon Compact Plus generates pause frames to the Ethernet switch when the Horizon Compact Plus receiving buffer hits the internally set threshold. The receiving buffer threshold is close to 100 msec at GigE rate.
  • Page 57 Quality of Service (QoS) This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 58: Bandwidth Management

    10.0 Bandwidth Management When you purchase a Horizon Compact Plus system you receive a unit capable of giving a throughput speed of up to 400 Mbps. However, the actual throughput speed achievable for any given system depends on the specific licensed speed key that you purchased with the system You can upgrade your system to a higher licensed speed (see Section 3.2) by purchasing an upgrade...
  • Page 59 Bandwidth Management Procedure 10-1 Configure Horizon Compact Plus Throughput Speed (Symmetrical Throughput) Required Action Steps login Log in as a NOC user. View system speed Returns the licensed speed key value, the current set system speed and the set mode.
  • Page 60 Note that all required radio parameters need to be correctly set for the system to be functional. See Volume 1 of this manual for basic configuration procedures. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 61: Asymmetric Throughput Speed

    Bandwidth Management 10.2 Asymmetric Throughput Speed Asymmetric throughput can be achieved by installing the same Horizon Compact Plus hardware type at each end of the link, and configuring one end with a different system speed. Note, that the System Mode, must be identical at each end of the link for this to work. The variable will be the system speed figure.
  • Page 62 Are you sure you want to reset? Y(yes) or N(no) press Y The system will proceed to reset. You will have to log on again to regain access. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 63: Throughput (Bandwidth) Logging

    As with the speed key, you will need to consult with DragonWave Inc. if you wish to make use of this option.
  • Page 64 Enter The system responds: Bandwidth logging admin status set to ‘on’ Bandwidth logging oper status is ‘off’ Reason: disabled for secondary_hsb_1wire Reason: disabled for secondary_x2 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 65 Date of Max Utilization Util ---- ------ ----------------------- ----------------------- ---- 02/05/2009 15:52:38 01/05/2009 17:45:15 03/05/2009 15:52:39 03/05/2009 10:25:09 07/05/2009 15:46:56 07/05/2009 12:14:36 09/05/2009 17:15:10 08/05/2009 18:16:35 10/06/2009 17:15:13 09/06/2009 17:46:52 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 66 40%: 84893 (85934 seconds) 50%: 84720 (85759 seconds) 60%: 84719 (85758 seconds) 70%: 84699 (85737 seconds) 80%: 84103 (85134 seconds) 90%: 2114 (2139 seconds) 95%: 1713 (1734 seconds) Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 67 40%: 2037 (2131 seconds) 50%: 2036 (2130 seconds) 60%: 1951 (2041 seconds) 70%: 1950 (2040 seconds) 80%: 1947 (2037 seconds) 90%: 1944 (2034 seconds) 95%: 1935 (2024 seconds) Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 68: Adaptive Transmit Power Control (Atpc)

    Horizon Compact Plus system. A fade factor of 60dB/second can be handled. The Horizon Compact Plus system is able to discriminate between RSL levels that are reduced as a result of interference and those as a result of genuine path loss, so that ATPC is not invoked unnecessarily.
  • Page 69 6 press Enter System responds: ATPC CONFIGURATION LOCAL PEER --------------------------------- ------------ ------------ Status : Enabled Disabled Coordinated Power Offset : 6.0 dBm Disabled Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 70 Save changes to mib Saves the MIB to RAM. Perform this command to save setting changes to non-volatile memory. Sequence: save mib press Enter The system responds: MIB saved successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 71: Saturated Link

    11.2 Saturated Link Procedure 11-2 Configure Horizon Compact Plus Adaptive Transmit Power Control – Saturated Installation Use this procedure to set up ATPC for a link engineered for receiver saturation (short range). This procedure assumes that the link has been properly aligned at a low transmit power, with ATPC turned off, before the following steps are performed.

  • Page 72: Coordinated Power Alarm

    (set txpower - coordinated power offset) dBm. To clear a coordinated power alarm execute set atpc on again, or set atpc off. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 73 Adaptive Transmit Power Control (ATPC) This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 74: Authentication

    This feature is only necessary if you wish to restrict forwarding the user payload from a Horizon Compact Plus unit to a specific peer or to a group of Horizon Compact Plus units. Authentication is generally used as a security measure.

  • Page 75: Authentication Failure Action

    Authentication A group of Horizon Compact Plus nodes uses a group ID to establish inter-node communication. Administrators create a group ID string consisting of up to eight characters. You must program the group ID string on each node. The group ID string can consist of the characters 0 to 9, a to z, and A to Z.

  • Page 76: Configure Authentication

    [none, unique, group] identifies the authentication type. Use unique on this occasion. The system responds: Peer Authentication Type : unique get peer authentication type press Enter (will confirm type) Peer Authentication Type : unique Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 77 See Procedure 11-3. This concludes the steps to setting authentication to unique. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 78 See Procedure 11-3. This concludes the steps to set the group authentication key using the CLI manager Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 79 Sequence: save mib press Enter The system responds: MIB saved successfully. This concludes the steps to verify the authentication status using the CLI manager. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 80: Threshold Alarms

    13.0 Threshold Alarms Horizon Compact Plus provides Threshold Alarms to assist in managing the performance of the system. Threshold alarms are available for the following parameters, showing default setttings: RSL (Receive Signal Level) -70 dB for 10 seconds Bandwidth Utilization...
  • Page 81 Returns the current signal to noise ratio alarm threshold. Sequence: get snr threshold press Enter The system responds: SNR threshold set to Where n is the current SNR threshold setting Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 82 Configure bandwidth Sets the values for the Threshold Alarm for the Bit Error Rate (BER) as utilization threshold alarm calculated by the Horizon Compact Plus modem. Once the BER settings Value Threshold is reached and continues to remain between the Threshold value and the hysteresis value, then an alarm is raised.
  • Page 83 Dropped frames thresholds set to : 50 100 100 100 100 100 100 100 100 % Dropped frames timelimits set to : 5 10 10 10 10 10 10 10 10 secs Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 84 Queue Depth thresholds set to : 100 100 100 100 100 100 100 100 % Queue Depth timelimits set to : 10 10 10 10 10 10 10 10 secs Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 85 Enter The system responds: MIB saved successfully. This concludes the steps to configure Threshold Alarms for the Horizon Compact Plus system using the CLI manager. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 86: Rapid Link Shutdown (Rls)

    The Horizon Compact Plus systems communicate with each other via “Rx Blocks” at all times even if there is no Ethernet traffic. The Rx Blocks are transmitted at a fixed rate and therefore a Rx Block error rate is also available.

  • Page 87: Basic Mode

    The RLS signal fault parameters correspond to “hard” failure mode. c. The user-configurable error rates vary from 5% to 95%. d. The user-configurable sample time ranges from 5 mS to 1000 mS. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 88: Settings For Basic Mode

    “quick” sampling time that determines a fail condition if the block error threshold is exceeded before the down sample time period times out The following command configures the link monitor parameters: Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 89: Ettings For Advanced Mode

    [on/off] To enable manual control of the data Ethernet port link state, set rls link control to on. The default setting is off, allowing the Horizon Compact Plus to re-enable the data Ethernet port once the RLS condition is cleared.
  • Page 90 Perform this procedure to configure the Rapid Link Shutdown Options for the Horizon Compact Plus system. When RLS is used, the Horizon Compact Plus Port 1 will be set to "down" during modem-to- modem communication failure. This feature allows a router to select an alternate path should the modem-to-modem communications fail.
  • Page 91 The RLS link control feature determines how the system will react when link recovery takes place, either providing automatic recovery of the Ethernet ports by the Horizon Compact Plus system or waiting for the user to manually recover the Ethernet ports through use of the "set rls link enable on"...
  • Page 92 [on/off] requires manual recovery of the Ethernet port. RLS provides the ability to shut down the Horizon Compact Plus Ethernet ports (Port 1 on both endpoints) during system outages. The user can manually recover the Ethernet ports through the use of the "set rls link enable on"...
  • Page 93 (100 seconds), the link will be re-established. Setting the RSL sample period to zero (0), the default value, disables this feature. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 94 [up2dn block errors per sample] [dn2up # of samples] [up2dn # of samples] [dn2up sample time in msec] [up2dn sample reset time in msec] Please contact DragonWave Customer Support for assistance if the default “soft error” monitor behaviour needs to be tuned for a specific application.
  • Page 95 A system reset command will cause settings in RAM to be programmed into FLASH and to take effect. Sequence: save mib press Enter The system responds: MIB saved successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 96 Y Once the system reboots, login and continue with the RLS configuration. This concludes the steps to configure Rapid Link Shutdown for the Horizon Compact Plus system using the CLI manager. Wireless Ethernet Product User Manual – Volume 2...
  • Page 97 Rapid Link Shutdown This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 98: Configuring The Time Source (Sntp)

    The timing information is polled every 60 minutes. Table 15-1 Time Sources Index Stratum Source Source IP Address 199.212.17.15 Industry Canada 199.212.17.20 Industry Canada 192.5.41.40 U.S. Navy 192.5.41.209 U.S. Navy 129.132.2.21 Switzerland Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 99 Save changes to mib Saves the MIB to RAM. Perform this command save setting changes to non-volatile memory. Sequence: save mib press Enter The system responds: MIB saved successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 100 Log in as a NOC user. View sntp settings Displays the current time settings. This example shows the Horizon Compact Plus system default settings. Sequence : get sntp press Enter The system responds : SNTP feature is turned on.
  • Page 101 Save changes to mib Saves the MIB to RAM. Perform this command save setting changes to non-volatile memory. Sequence: save mib press Enter The system responds: MIB saved successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 102: Adaptive Modulation

    16.0 Adaptive Modulation The two principal modulation schemes used on the Horizon Compact Plus system are QPSK and xQAM. QPSK (the lowest modulation scheme) is ideal for long distance, but has the lowest throughput capability. Higher throughputs are achieved by using more complex modulation schemes e.g. 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM.
  • Page 103 This will occur in steps as the “Up SNR” threshold for each modulation scheme is exceeded and until the 256QAM modulation scheme is reached. HAAM is supported by all radio bands available to the Horizon Compact Plus, however, some jurisdictions may not allow its use.
  • Page 104 Change requires a ‘save mib’ and ‘reset system’ Would you like to ‘savemib’ now? Enter Y(yes) or N (no):Y Mib saved successfully. A ‘reset system’ is required for the change to take effect. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 105 Enter The system responds: Modem1 manual mode set :Success Warning:Please make sure that the peer system has the same configuration! Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 106 Sequence: reset system press Enter The system responds: Are you sure you want to reset? Y(yes) or N(no) press Y Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 107 Adaptive Modulation This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 108: System Management

    Both in-band and out-of-band management allow Telnet, or Web, sessions to be established through one Horizon Compact Plus system, over the radio link to the far end Horizon Compact Plus system. All management traffic must arrive on the configured port, or it will be ignored by the system.
  • Page 109 Note: it is recommended that when using out-of-band management that the port payload state of the port concerned is set to “disabled”. See Section 4.0 Configuring Ethernet Ports 1 and 2. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 110 Horizon Plus units are configured with same out-of-band management port this example) and both are connected to the management overlay network, then a network loop is established, causing network failure. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 111: Telnet Access

    User, NOC and Admin level user accounts. Refer to Volume 1 for details of CLI commands. The Horizon Compact Plus system can be completely configured, tested and managed through a Telnet session. The Telnet function is enabled by default but can be disabled within the Horizon Compact Plus system. Procedure 17-2...

  • Page 112: Secure Shell Access Security

    Telnet session. A secure shell (SSH) protocol can be enabled in the Horizon Compact Plus system to ensure that access to the units is restricted to authorized clients. Horizon Compact Plus uses the Secure Shell SSH2 server programme to create the secure environment for Telnet sessions.

  • Page 113: Web Interface

    IP access to the Horizon Compact Plus system. The Horizon Compact Plus Web interface is enabled by default. To disable the Web interface login to the system using Telnet and issue the CLI command set web server off press Enter.

  • Page 114: Connecting To The Web Interface

    5. Bookmark the page for easy reference later. A Web browser may be used to configure the Horizon Compact Plus system, provided the IP address of the system is known (default value 192.168.10.100) and you log on as the default Super User. Refer to Volume 1 of this manual for logging on details and basic configuration.

  • Page 115: Exiting The Application

    System Management 17.5.3 Exiting the Application To exit the Horizon Compact Plus Web interface application, close the Web browser window. Closing the window will cause the user to be logged out of the system. 17.5.4 Login The login page appears whenever you connect to the Horizon Compact Plus Web interface. The session will remain active for as long as your browser stays connected to the Horizon Compact.

  • Page 116: Home Screen

    The Link View Bar Managed Node buttons switch management access between the Peer or Local Horizon Compact Plus nodes. In addition, a graphic view of the radio link and a real time status table for both ends of the link can be selected for viewing.

  • Page 117: Graphics And Table View

    Green arrows indicate that modem blocks are being successfully transmitted/received (sync). Red arrows indicate a failure to transmit/receive modem blocks (no sync). Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 118: Horizon Compact Plus Release 1.0.1 Wireless Ethernet Product User Manual – Volume

    (traffic affecting). The rotating icon in the overlay indicates that the peer node will be trying to reconnect in 10 seconds. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 119: Web Page Tree Diagram

    SSL to connect to the Horizon Compact Plus Web browser. Even if SSL access is not required for the user group, those users may access the Horizon Compact Plus Web browser through HTTPS (SSL) as a security measure.

  • Page 120: What Is Ssl

    Generating a Certificate In order to generate a valid SSL certificate on the Horizon Compact Plus, the user must be logged in as the Super User, and the system time must be accurate. The SSL certificate is tied to the Horizon Compact Plus's IP address.
  • Page 121 Horizon Compact Plus IP address. If the Horizon Compact Plus IP address is changed, then the certificate should be regenerated. Make sure the system time on the Horizon Compact Plus is accurate before proceeding further (from CLI use “get date time” to verify this).

  • Page 122: Installing Certificates On Your Web Browser

    Not After : Nov 3 14:47:48 2013 GMT Subject: C=US, O=DragonWave Inc., CN=192.168.255.51 Certificate IP Address is valid. This concludes the steps to generate an SSL certificate on the Horizon Compact Plus using the CLI manager. 17.6.3 Installing Certificates on Your Web Browser Browsers keep a list of trusted Certificate Authorities (CA) in order to verify SSL certificates.
  • Page 123 System Management Procedure 17-6 Install SSL Certificates on Your Web Browser Perform this procedure to install the DragonWave SSL certificate on your Web browser. 1. See Note 1 above before proceding. Sign Download DragonWave certificate with Super User rights from CLI...

  • Page 124: Enabling Ssl Per User Group

    Super User. Procedure 17-7 Configure Mandatory SSL Access for Each User Group Perform this procedure to configure mandatory SSL access to the Horizon Compact Plus modem for each user group. Note: To perform this procedure, you must have Super User rights.
  • Page 125 System Management This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 126: Event And Performance Logging

    18.0 Event and Performance Logging The Horizon Compact Plus system supports two logs, the Events Log and the Performance Log. Each can be used to track the behaviour of the system over time. In addition, a “Syslog” feature can be invoked that sends information stored in the event and performance logs to a remote syslog server, for further analysis.

  • Page 127: Performance Log

    "mylogfile1", "mylogfile2" etc. The system responds (example): Enter the IP address of FTP server followed by 'Enter' Key :[ip address] 220 ProFTPD 1.2.5 Server (Dragonwave FTP Site) [support.dragonwaveinc.com] UserName :username 331 Password required for username. Password :******* 230 User username logged in.
  • Page 128 5.69 -44.75 30.6 End of Performance log. erase performance log Erases the performance log Sequence : erase performance log press Enter The system responds : Erased log successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 129: Syslog Feature

    Enter The system responds : Set forwarding rule ‘on’ Syslog Forwarding Admin Status : on Syslog Forwarding Oper Status : off (waiting for first send request) Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 130 Save changes to mib Saves the MIB to RAM. Perform this command to save setting changes to non-volatile memory. Sequence: save mib press Enter The system responds: MIB saved successfully. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 131 Event and Performance Logging This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 132: Radio And Network Loopback

    3. EOAM – see Volume 4 for more details Only one of any type can be applied at any one time on any Horizon Compact Plus node. Note that there is a traffic hit when entering or leaving a loopback mode.
  • Page 133 NOTE: setting the time to zero (0) will maintain the loopback condition on indefinitely. To stop the loopback, issue the following command: set loopback off press Enter Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 134: Network Loopback

    DragonWave Inc. 19.2 Network Loopback The network loopback feature allows network troubleshooting between a Horizon Compact Plus and another network device. The MAC address of the target device is included in the CLI command to invoke the loopback. The source and destination MAC addresses are swapped so that loopback packets may legally navigate a switched Ethernet network.

  • Page 135: Eoam Loopback

    Note that only one type of loopback (Radio, Network or EOAM) can be invoked on a Horizon Compact Plus at any one time. See Volume 4 of this manual for more details about EOAM. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 136: Network Management

    20.0 Network Management This section describes how to use network management to manage the Horizon Compact Plus units. 20.1 Simple Network Management Protocol (SNMP) Simple Network Management Protocol (SNMP) is an application-layer protocol used to exchange management information between network devices. Network management systems contain two primary elements: a manager and an agent.

  • Page 137: Snmp

    Network Management Procedure 20-1 Setting up SNMP Perform this procedure to set up SNMP for the Horizon Compact Plus system. Required Action Steps login Log in as a NOC account for SNMP v1 and v2c, or Super user for SNMP v1, v2c and v3 Configure snmp access mode Selects a SNMP access mode.
  • Page 138 1 manager by overwriting the particular index. 2. By setting the IP address of last index to 'any' and 'enable', anybody can have access to the system via SNMP. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 139 Enter privacy protocol [0=NoPriv | 1=DES ]: 1 New privacy protocol for Entry [1] is set to [DES] Current privacy Password for Entry [1] is [-] Do you accept this value? [y|n]n Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 140 NoAuth - NoPriv - disabled Note: 1.Only maximum of 5 managers are allowed. If all the managers are filled in, remove 1 manager by overwriting the particular index. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 141 1...5 and <ipAddr> is the ip address of the host on the network. The system responds: Save mib and reboot Horizon Compact Plus for changes to take effect. To set the host user name associated with v3 trap hosts. This will only set up Configure snmpv3 trap a trap host destination without authentication or privacy.
  • Page 142 Where <index> is the trap host index you wish to enable in the range 1 to 5 The system responds: Save mib and reboot Horizon Compact Plus for changes to take effect. To disable a trap host. Configure snmpv3 trap NOTE: Only Super user is allowed to set these parameters.
  • Page 143 The system will proceed to reset. You will have to log on again to regain access. This concludes the steps to set up the SNMP for the Horizon Compact Plus system. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 144: Enterprise Management Information Base (Mib)

    NMS. On some NMS systems, it is as straightforward as placing the Horizon Compact Plus MIB into the proper NMS directory and then enabling it by adding it to the MIB list. Please consult the instructions provided with your NMS for details on loading the Enterprise MIBs.
  • Page 145 0.0.0.0 disabled public Note: A maximum of 5 hosts are allowed. If all the hosts are filled in, remove 1 host by overwriting the particular index. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 146 Ethernet speed reduced SyncE lost lock SyncE secondary source in use Invalid system configuration MIB change not saved Transmitter loss of sync Cold start User session HAAM event Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 147 Network Management Required Action Steps Enables or disables SNMP traps. DragonWave recommends enabling trap 16. Configure snmp trap This trap indicates loss of communication with the peer Horizon Compact Plus [trapIndex] [enable/disable] node. Sequence: set snmp trap [trapIndex] [enable/disable] Example (enabling trap 16):...
  • Page 148 The system will proceed to reset. You will have to log on again to regain access. This concludes the steps to set SNMP traps using the CLI manager. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 149 Network Management This page left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 150: Editing System Configuration Files

    The index ID’s for various parameters can be found in Appendix B – System Configuration OID Indices. See Volume 1 for the procedure to upload and download configuration files. Only the Super User can upload or download configuration files. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 151 Detailed CLI Command List This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 152: Appendix A - Detailed Cli Command List

    Radius Server. delete user delete the admin or noc user. enable Automated Adaptive Modulation(aam) diagnostic diagnose aam mode[upspeed|downspeed] Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 153 Telnet Session. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 154 802.1p priority assigned to untagged packets. returns the current status of the ecfm flow mapping [on|off get cos ecfm flow mapping and queue] get cos expedite queue get the expedite queue mode. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 155 Displays ethernet CFM global information. <context_name>] get ecfm loopback cache [brief] [level <level-id(0-7)>][unaware | vlan <vlan-id(1- Displays the Loopback transactions related information. 4094)>] Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 156 2 [on|off] get enet status returns status of ethernet Port1 and Port2. get eoam dwi-msg mode displays eoam DWI specific msg mode. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 157 'on' get optical transmitter state or 'off'. get pause state displays PAUSE state (on/off). Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 158 [on | off]. get radio statistics returns radio statistics in the system. get radio status returns the radio alarms and synthesizer status. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 159 SNMP 'v1' and 'v2c' requests are get snmp access mode enabled. returns a list of managers that may access the system via get snmp managers SNMP. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 160 Admin and NOC user accounts to the user. get user session displays the LogIn status of the user. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 161 [On | Off] sets the Horizon alignment mode On or Off. sets the programmed antenna diameter. For use with set antenna diameter [index of diameter] unlicenced radio bands. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 162 The default time limit is 10 secs. set dw access[on | off] set dragonwave access in secure password environment. enables the system to allow “on-the-fly” changes of certain parameters without having to reset the system. set radio...
  • Page 163 Sets the amount of in minutes time such that information ecfm archive-hold-time from a MEP is kept in the CC database before they are <minutes(100-65535) | default } purged. Defaults sets to 100 minutes. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 164 {<aa:aa:aa> | default} sets the OUI to the Switch Base Mac address). Sets the port number that subsequent ECFM commands set ecfm port port<1-1> {on|off} will apply to. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 165 [Admin|Noc|Super] Set the HTTP Secure access to a group of users on or off. [on/off] set ip address [abc.def.ghi.jkl] sets the system ip address. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 166 Specifying the action for the link monitoring threshold period frame-sec-summary] [none crossing events received from local. warning] set port eoam fault-management mib- request [port <1-2>] Send MIB variable request to peer. <branchleaf:branchleaf:...> Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 167 [radioBandName] Radio bands supported by the system can be obtained using'get radio band' command. set radio config Leads you through the steps to configure the radio Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 168 RLS event occurs. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 169 SNTP server, based on the index selected set ssh server turns the SSH server on or off. set subnet mask [abc.def.ghi.jkl] sets the system subnet mask. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 170 Telnet Access to the user. set telnet [on|off] (Access: Only through Serial Port) clears all traffic statistics, including extended statistics to set traffic statistics [0] 0. Only parameter accepted is '0'. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 171 This applies to set web server [on|off] both HTTP and SSL. upgrade system licensed speed [speed allows the user to upgrade the licensed speed. increment] [key] Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 172 DragonWave Inc. This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 173: Appendix B - System Configuration Oid Indices

    Appendix B – System Configuration OID Indices Frequency File Version: 1.00.00 Diplexer Type: 74-000291-01 Radio Band: fcc18_1_10_R5 (Index 1) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 174 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy10_12_qpsk hy10_28_16qam hy10_36_32qam hy10_44_64qam hy10_52_128qam hy10_60_256qam hy10_64_256qam HAAM Mode Index System Mode hy10_12_qpsk hy10_28_16qam hy10_36_32qam hy10_44_64qam hy10_52_128qam hy10_64_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 175 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy20_26_qpsk hy20_60_16qam hy20_77_32qam hy20_94_64qam hy20_112_128qam hy20_129_256qam hy20_137_256qam HAAM Mode Index System Mode hy20_26_qpsk hy20_60_16qam hy20_77_32qam hy20_94_64qam hy20_112_128qam hy20_137_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 176 HAAM Mode Index System Mode hy30_39_qpsk hy30_92_16qam hy30_118_32qam hy30_144_64qam hy30_170_128qam hy30_209_256qam Radio Band: fcc18_1_40_R5 (Index 4) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 177 Appendix B – System Configuratio OID Indices Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 178 Radio Band: fcc18_1_50_R5 (Index 5) Frequency Low Program Index Channel Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy50_66_qpsk hy50_154_16qam hy50_198_32qam hy50_241_64qam hy50_285_128qam hy50_329_256qam hy50_351_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 179 HAAM Mode Index System Mode hy7_9_qpsk hy7_22_16qam hy7_28_32qam hy7_34_64qam hy7_40_128qam Radio Band: braz18_1_14_R5 (Index 7) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 180 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy14_19_qpsk hy14_43_16qam hy14_56_32qam hy14_68_64qam hy14_80_128qam hy14_93_256qam hy14_99_256qam HAAM Mode Index System Mode hy14_19_qpsk hy14_43_16qam hy14_56_32qam hy14_68_64qam hy14_80_128qam hy14_99_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 181 HAAM Mode Index System Mode hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_201_256qam Radio Band: braz18_1_56_R5 (Index 9) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 182 Radio Band: etsi18_2_28 (Index 1) Frequency Low Program Index Channel Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_188_256qam hy28_201_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 183 Appendix B – System Configuratio OID Indices Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 184 Index System Mode hy56_71_qpsk hy56_166_16qam hy56_214_32qam hy56_261_64qam hy56_308_128qam hy56_380_256qam Diplexer Type: 74-000305-01 Radio Band: esp13_1_56_R5 (Index 1) Frequency Low Program Index Channel Frequency High Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 185 HAAM Mode Index System Mode hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_201_256qam Radio Band: etsi13_1_28_R5 (Index 3) Frequency Low Program Index Channel Frequency High Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 186 DragonWave Inc. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 187 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy14_19_qpsk hy14_43_16qam hy14_56_32qam hy14_68_64qam hy14_80_128qam hy14_93_256qam hy14_99_256qam HAAM Mode Index System Mode hy14_19_qpsk hy14_43_16qam hy14_56_32qam hy14_68_64qam hy14_80_128qam hy14_99_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 188 HAAM Mode Index System Mode hy7_9_qpsk hy7_22_16qam hy7_28_32qam hy7_34_64qam hy7_40_128qam Diplexer Type: 74-000305-02 Radio Band: esp13_2_56_R5 (Index 1) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 189 HAAM Mode Index System Mode hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_201_256qam Radio Band: etsi13_2_28_R5 (Index 3) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 190 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy14_19_qpsk hy14_43_16qam hy14_56_32qam hy14_68_64qam hy14_80_128qam hy14_93_256qam hy14_99_256qam HAAM Mode Index System Mode hy14_19_qpsk hy14_43_16qam hy14_56_32qam hy14_68_64qam hy14_80_128qam hy14_99_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 191 HAAM Mode Index System Mode hy7_9_qpsk hy7_22_16qam hy7_28_32qam hy7_34_64qam hy7_40_128qam Diplexer Type: 74-000306-01 Radio Band: itu15_1_28_490_R5 (Index 1) Frequency Low Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 192 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_188_256qam hy28_201_256qam HAAM Mode Index System Mode hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_201_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 193 HAAM Mode Index System Mode hy56_71_qpsk hy56_166_16qam hy56_214_32qam hy56_261_64qam hy56_308_128qam hy56_380_256qam Radio Band: etsi56_1_28_R5 (Index 2) Frequency Low Program Index Channel Frequency High Program Index Channel Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 194 Frequency High Program Index Channel Normal Mode Index System Mode cw_test hy56_71_qpsk hy56_166_16qam hy56_214_32qam hy56_261_64qam hy56_308_128qam hy56_356_256qam hy56_380_256qam HAAM Mode Index System Mode hy56_71_qpsk hy56_166_16qam hy56_214_32qam hy56_261_64qam hy56_308_128qam hy56_380_256qam Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 195 System Mode cw_test hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_188_256qam hy28_201_256qam HAAM Mode Index System Mode hy28_38_qpsk hy28_88_16qam hy28_113_32qam hy28_138_64qam hy28_163_128qam hy28_201_256qam Diplexer Type: 74-000317-03 Diplexer Type: 74-000317-03 Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 196 DragonWave Inc. This page is left blank intentionally Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

  • Page 197: Appendix C - Site Survey Information

    Rooftop objects such as a/c units Conductive metal surfaces standing pools of water edges of the roof (parapet) of the building on which the Horizon Compact Plus is to be mounted. Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 198 Locations and grounding points for surge protectors. Check local electrical codes for requirements for lightning rods. If possible, ensure that Horizon Compact Plus installations will be lower in height than existing lightning rods Note: Record all installation requirements, including cable lengths, GPS co-ordinates (height, Lat., Long) and distance between the sites.

  • Page 199: Appendix E - 802.1P Priority Tagging Overview

    In summary: CoS = assigning priority values to data streams QoS = traffic engineering to process data according to the priority values Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...
  • Page 200 DragonWave Inc. Copyright © 2000-2012 DragonWave Inc. Printed in Canada. All rights reserved. Horizon Compact Plus™ Product Manual, 83-000095-01-01-01 Visit us on the Internet at: http://www.dragonwaveinc.com/ Wireless Ethernet Product User Manual – Volume 2 Horizon Compact Plus Release 1.0.1...

Table of Contents
