DragonWave Inc.
24
4.3.5
Using Outdoor Lightning Arrestor unit

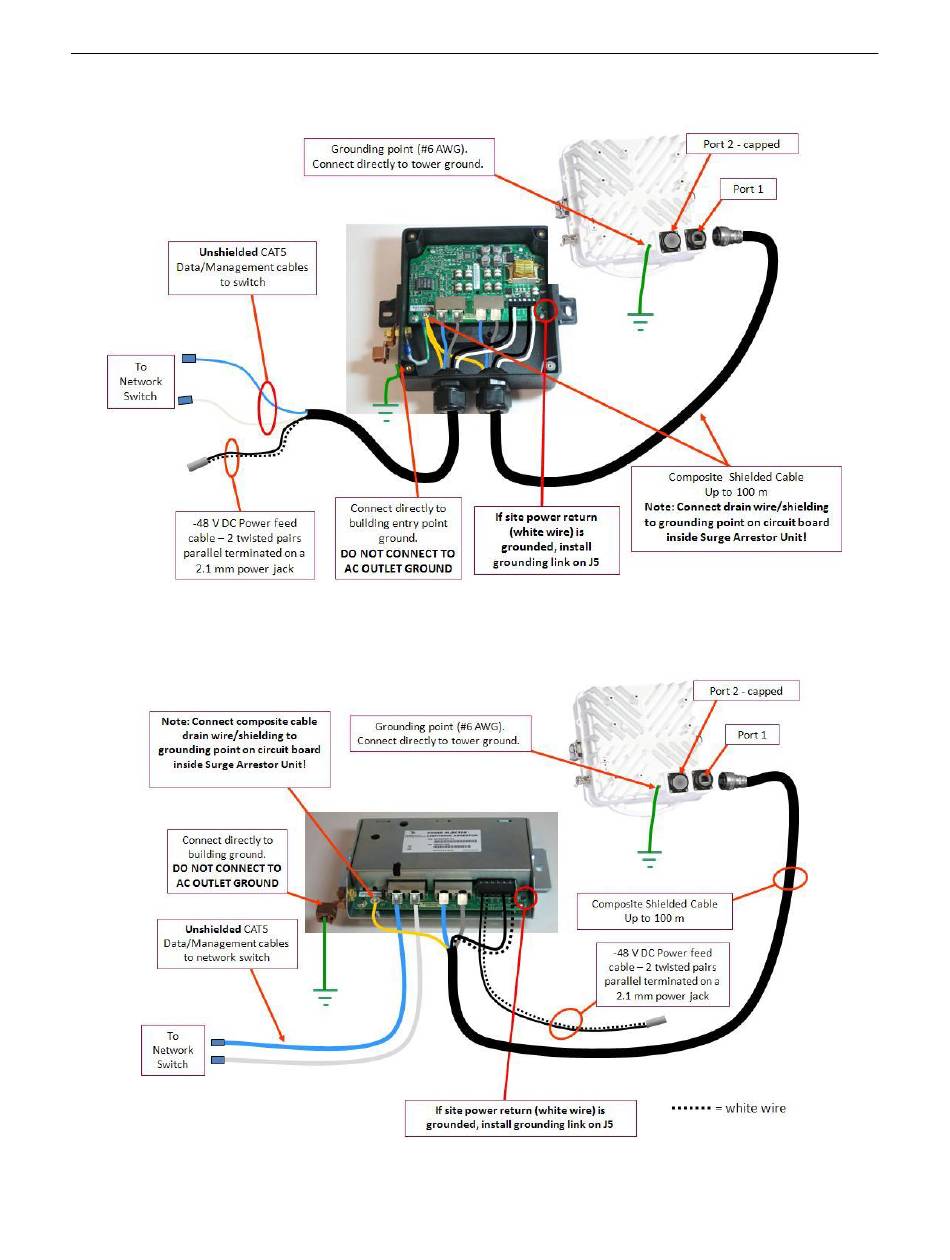

Figure 4-13 Outdoor Lightning Arrestor Unit Ethernet Cabling – Copper Interface
4.3.6
Using Indoor Lightning Arrestor Unit
Figure 4-14 Indoor Lightning Arrestor Unit Ethernet Cabling – Copper Interface
Horizon Compact Plus Release 1.0.1
Wireless Ethernet Product User Manual – Volume 1
