5.1.2 Using the Indoor PonE Unit

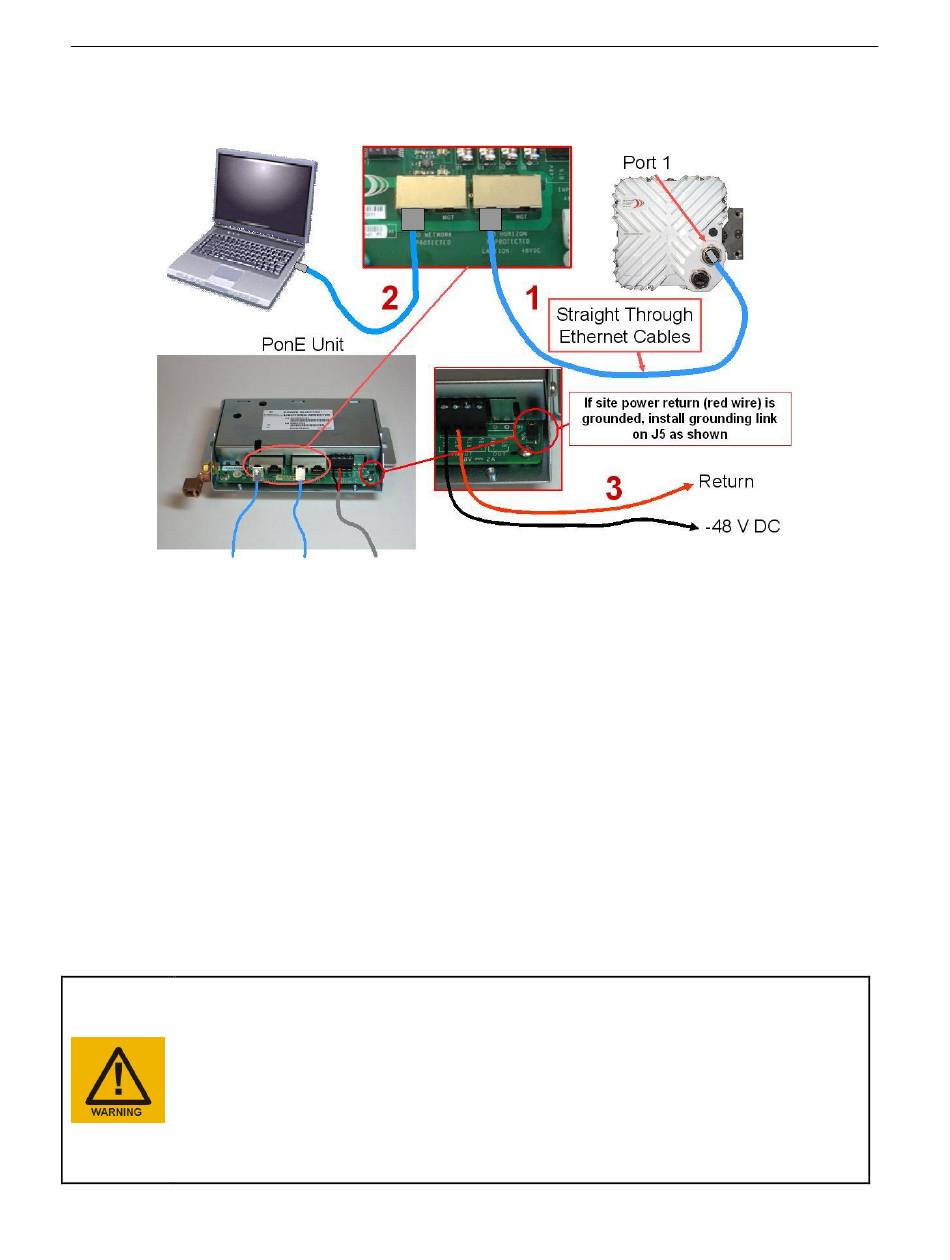

Figure 5-2 Connecting Power Using Indoor PonE Unit – Copper Interface
5.1.3 Steps to Connecting Power
1. Connect Port 1 of the Horizon Compact Plus to the correct socket on the PonE/lightning arrestor
using a straight through, shielded, Ethernet cable (see caution above).
2. Connect the Ethernet port on the PC to the network input socket on the PonE/lightning arrestor,
using a straight through Ethernet cable, with an unshielded RJ45 connector.
Ensure that you have connected the PC and Horizon to the correct RJ45 sockets on the PonE/lightning
arrestor.
3. Once the PC and Horizon Compact Plus are connected to the PonE/lightning arrestor, you may
connect power to the PonE/lightning arrestor. This will supply power to the Horizon Compact Plus
unit. An incorrectly wired system will cause the PonE/lightning arrestor to prevent the Horizon
Compact Plus from powering up. This protects the Horizon Compact Plus from incorrectly
terminated power feeds.
Note that the PonE adapter supports redundant power supplies.
CAUTION
Do not mix AC/DC converter and site 48 V DC supplies for power redundancy.
Use of ISOLATED 48 VDC supplies is recommended. For non-isolated site-
supplied 48VDC where the "Return" (positive) side is grounded, transfer the
shorting link from P4 to P5 (see Section 4.2).
For Release 1.1 and earlier, do not connect a PC or other network device (e.g.
network switch) to the right hand RJ45 sockets on the PonE adapter. -48 V DC is
present on these connectors which may destroy the connected device. Connect
only a Horizon Compact Plus unit to the right hand RJ45 connectors.
