DragonWave Inc.
18
DO NOT mount the PonE unit to the tower!
The Outdoor rated PonE Injector/Lightning Arrestor MUST be mounted as close
as possible to, and above, the building entry point (BEP) and its external
grounding lug must be connected to the nearest lightning (LPS) ground with #6
AWG (minimum) grounding wire, avoiding loops and sharp bends.
DO NOT connect the grounding lug to AC power supply wiring ground!
DO NOT mix AC power supply option with site-supplied 48 VDC!
DO NOT connect the network to the RJ45 connectors marked
"TO HORIZON UNPROTECTED". Damage to switches or routers may result

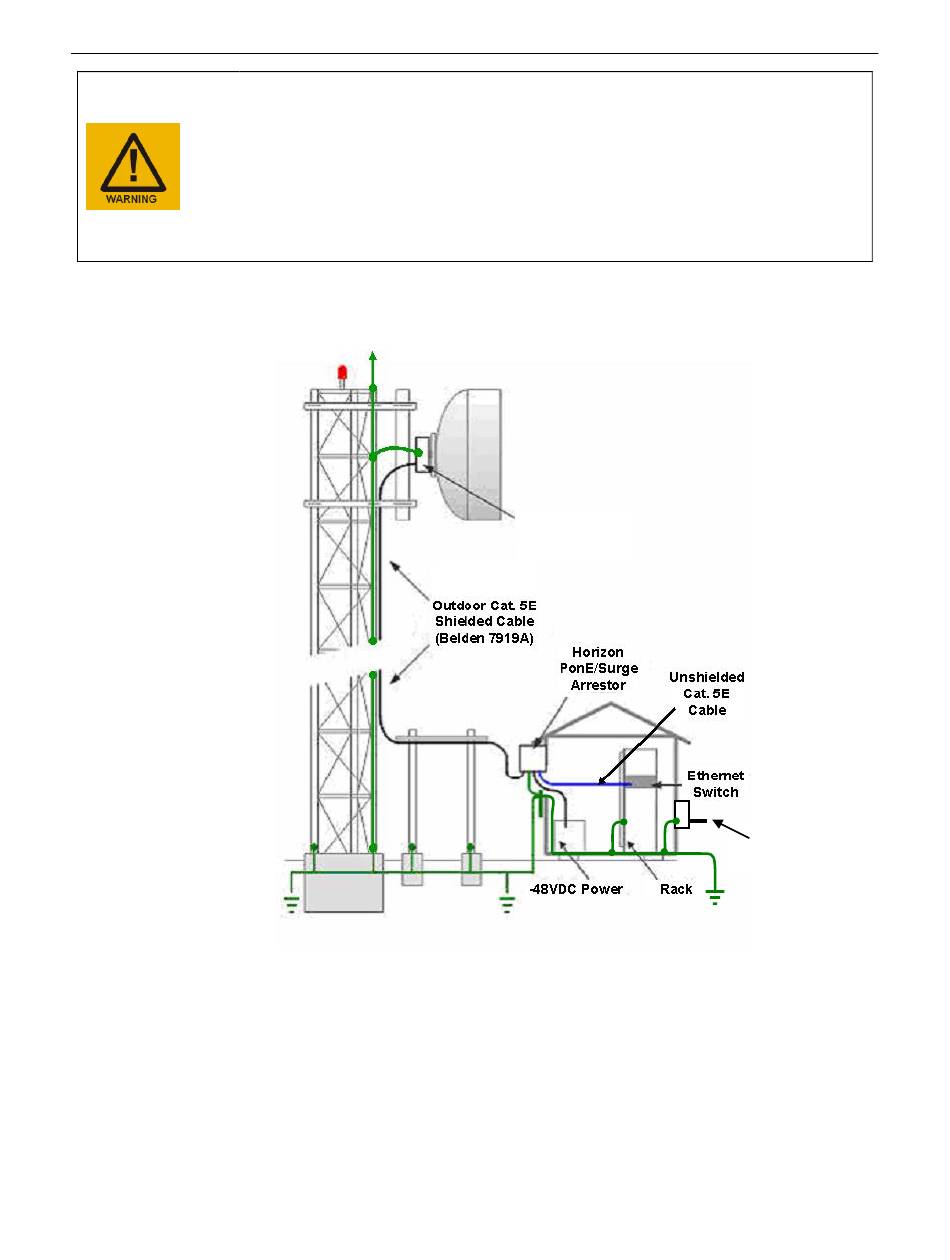

Figure 4-5 Horizon Compact Plus Installation
Horizon Compact Plus Release 1.0.1
Horizon
Compact
Plus
BEP- connect
tower ground to
shack ground
Wireless Ethernet Product User Manual – Volume 1
Power feed
to shack
