Figure 8-2 Outdoor Lightning; Figure 8-3 Indoor Lightninga - DragonWave Horizon COMPACT Plus Product Manual

Compact out-door-unit
Hide thumbs Also See for Horizon COMPACT Plus:
Table of Contents

Advertisement

DragonWave Inc.
48

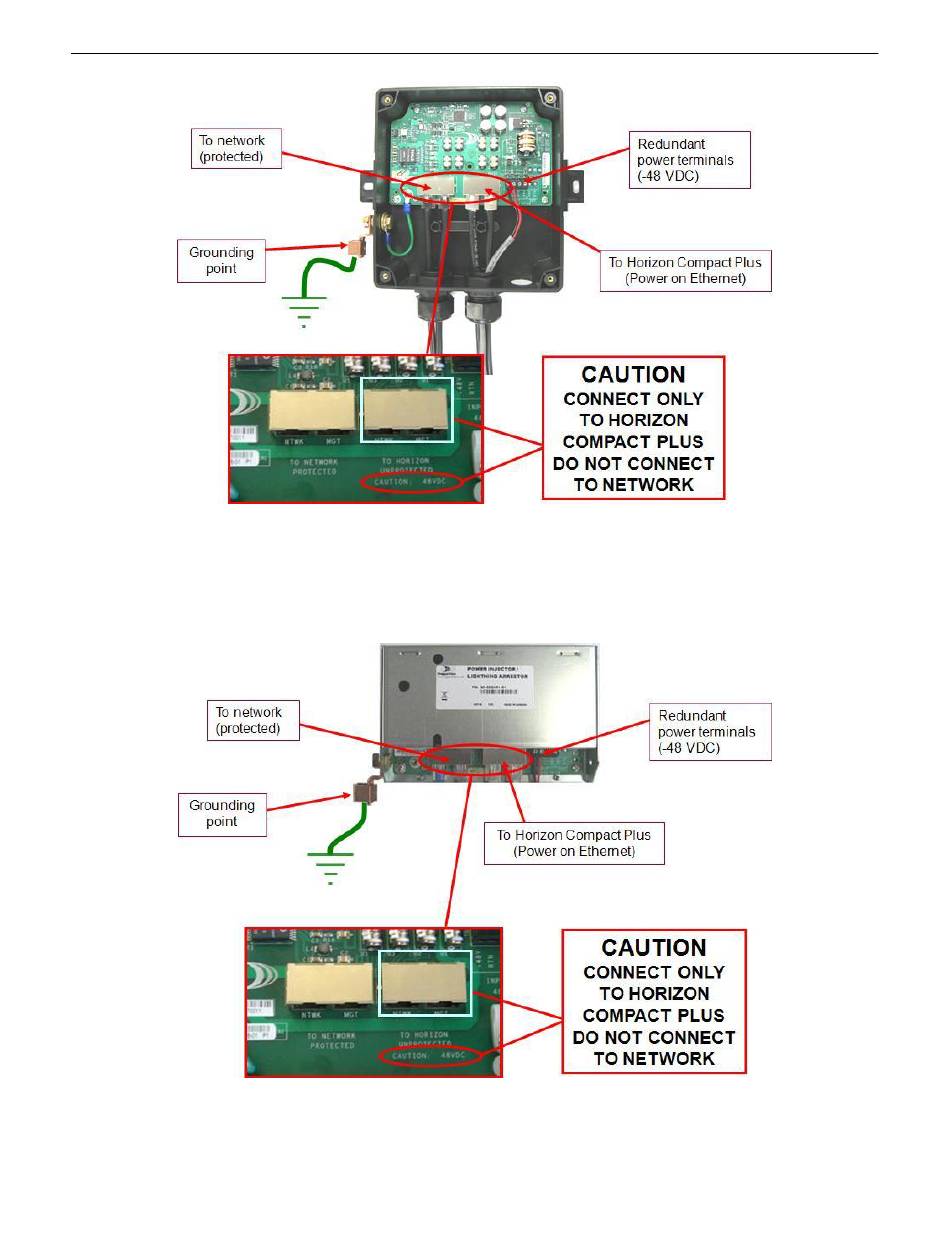

Figure 8-2 Outdoor Lightning Arrestor and Power injector
Cables are secured in the Outdoor PonE unit by means of the cable entry gland nuts. A special three-
hole, rubber, grommet is provided to accommodate two CAT5 cables, plus a power feed cable (See
Section 4.3.2). Cables with sheath diameters of between 0.35" and 0.62" can be accommodated when
the special grommet is removed.
Figure 8-3 Indoor Lightning Arrestor and Power injector
Wireless Ethernet Product User Manual – Volume 1
Horizon Compact Plus Release 1.0.1
