Preparing for Alignment
51
The following figures illustrate examples of correct and incorrect system location.

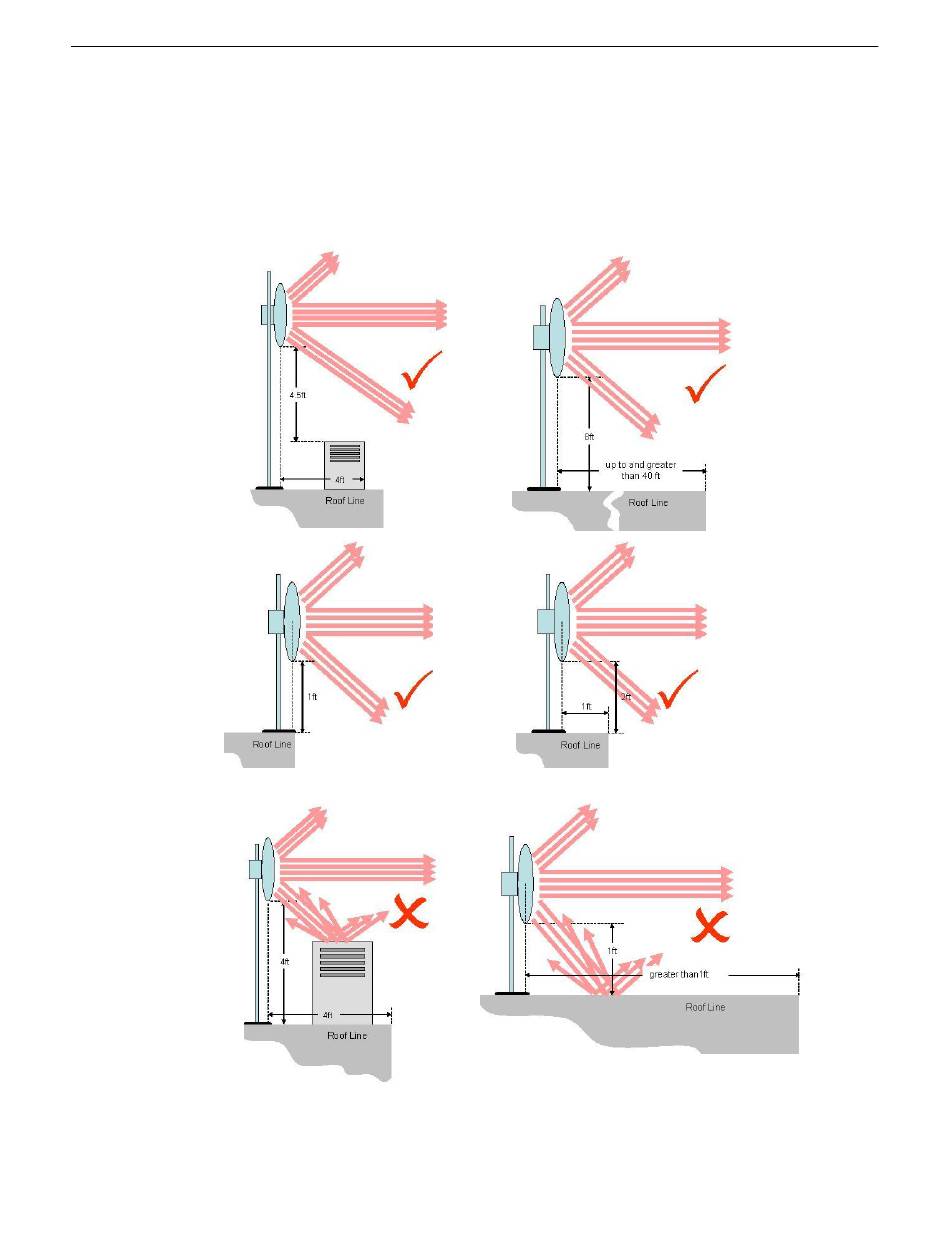

Figure 9-1 Correct & Incorrect System Location
Near field effects are also experienced above and on each side of the front of a system. Ensure that
these areas are also free of obstructions.
